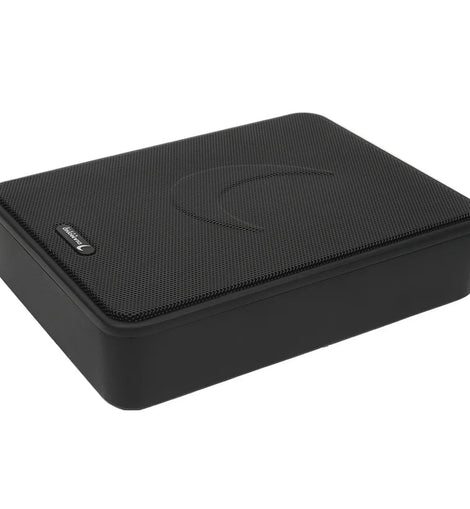

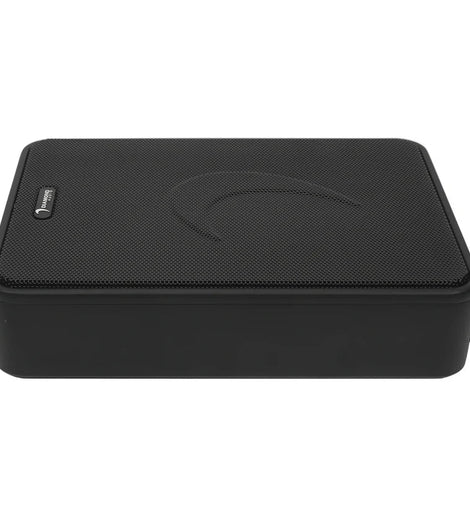

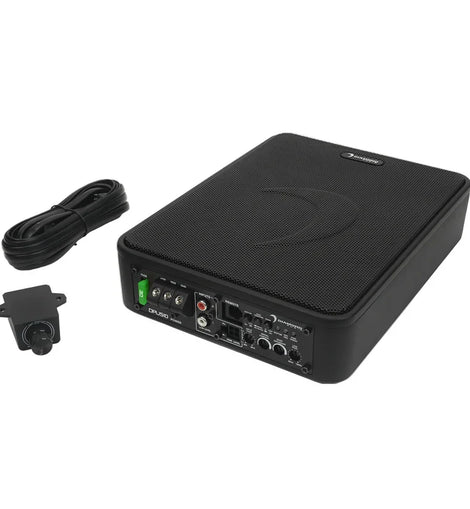

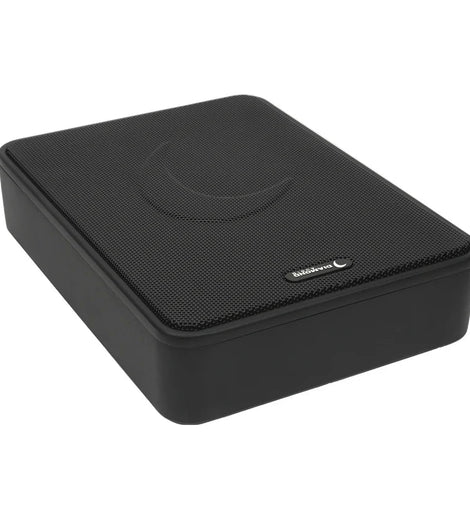

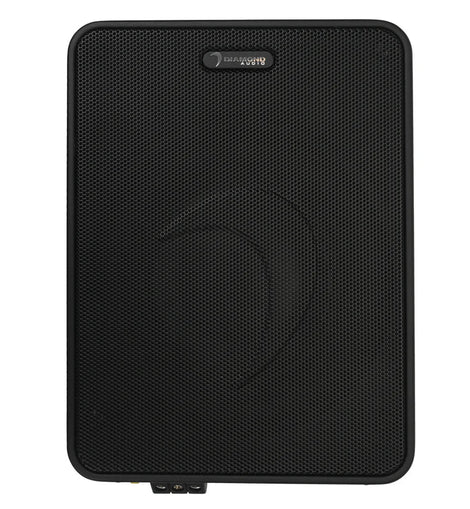

Diamond Audio DPUS10 DMD Series 10" Active Slim Subwoofer w/Bass Enhancement
Diamond Audio DPUS10 400W Peak (200W RMS) Loaded Single 10" Sealed Underseat Enclosure with Bass Remote
The DPUS10, an addition to Diamond's line of under-seat enclosures, boasts unique features designed to simplify installation, address audio issues from the OEM vehicle's audio signal, and alleviate space concerns. The DPUS10 offers 20V line-level inputs and auto turn-on circuits for OEM integration. To combat poor OEM signal quality, the DPUS10 features dual bass controls, one for level and the second with Diamonds' exclusive bass enhancement engine. The DPUS10 also includes the standard low-pass, subsonic filters, and phase adjustments. Notably, the enclosure/amplifier housing is remarkably compact, yet solid with its cast aluminum construction, ensuring it fits a wide range of applications while delivering impressive output from the onboard 10 inch powered subwoofer and 200WRMS amplifier. This compact design reassures you that the DPUS10 will not only enhance your audio experience but also save valuable space in your vehicle.
General Features
- Single 10" Sealed Loaded Subwoofer Enclosure with Built-In Amplifier
- Power Handling:
- Peak: 400 watts
- RMS: 200 watts
- Built-in Class D amplifier

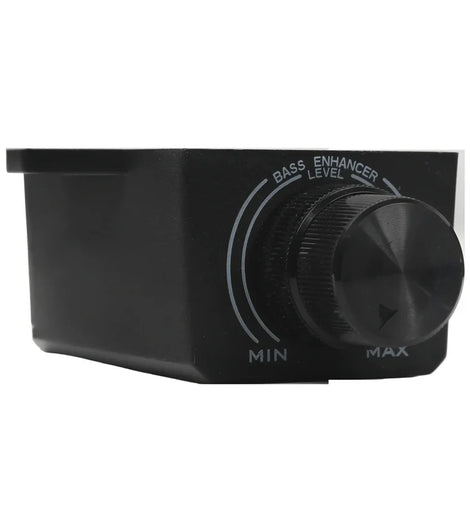

- Includes bass remote for Diamond Bass Enhancement Engine (DBEE)
- DBEE signal bandwidth adjustment feature
- Super-slim Under seat subwoofer enclosure
- Gauge power and ground wiring is recommended for installation
- Enclosure Dimensions: 13.58" L x 9.65" W x 2.76" H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Subwoofer Features:
- 10" DMD Series Subwoofer
- Polypropylene Cone
- Nitrile Butadiene Rubber NBR Surround
- Slim and shallow subwoofer construction
- Black spider with woven tinsel leads
- Vented pole piece for cooler operation
- Klippel optimized motor and suspension symmetry
- Sensitivity: 84.0 dB
Amplifier Features:
- Class D Monoblock Amplifier
- LED power and protect status indicator
- Thermal, short, and overload protection circuits
- Auto turn-on signal circuit
- Speaker-level (high-level) inputs
- 120 volts high-level and low-level inputs
- PWM MOSFET power supply for reliable connection
- Low-Pass Crossover Frequency: 50 - 180 Hz
- Bass Boost: 0 - 16 dB
- Subsonic Filter: 20 Hz (fixed)
- RCA Preamp Output: No
- Fuse Rating: 30A x 1
Enclosure Features:
- 10" Sealed Enclosure
- Box Finish: Black Aluminum
