Diamond Audio DMD500.1D 1-Channel 500W RMS Digital Amplifier

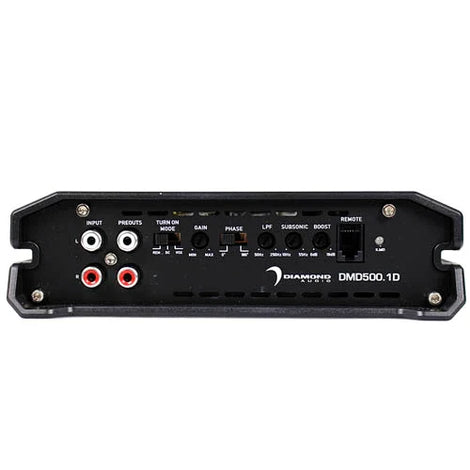

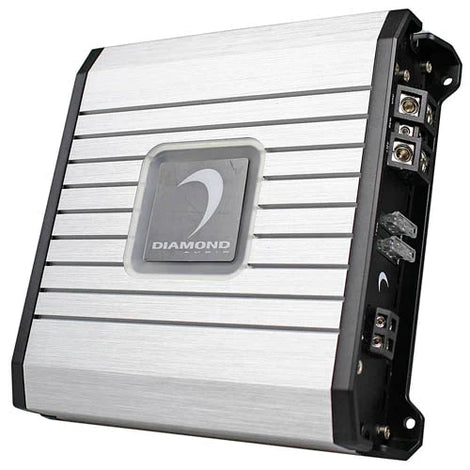

Diamond Audio DMD500.1D 1-Channel 500W RMS Digital Amplifier

GENERAL INFORMATION

DMD series amplifiers from Diamond Audio provide best-in-class performance for the value, period! DMD series amplifiers provide substantial power in a very small footprint heat sink, which is the solution for any budget-friendly mobile audio sound system. DMD series comprises five amplifier models: one 4-channel, three mono-channel, and one 6-channel amplifier to select from.

  • 1 Channel Mono Block Digital Amplifier
  • 500W x 1CH @ 2Ω / 340W x 1CH @ 4Ω RMS Power Output
  • Input Sensitivity: 0.2-10 Volt
  • Crossover Filter : 50-250Hz (LPF), 24dB Per Octave Slope
  • Frequency Response: 20-500Hz
  • Signal to Noise Ratio: > 90dB
  • Bass Boost: 0-18dB
  • Overall Operation Efficiency: >88%
  • Selectable REM / VOX / DC Turn On Modes
  • Variable Phase Adjustment
  • Dimensions: 7.2” x 6.85” x 1.9” / 183.1 x 174 x 48.4 mm
  • Remote Bass Knob Included
