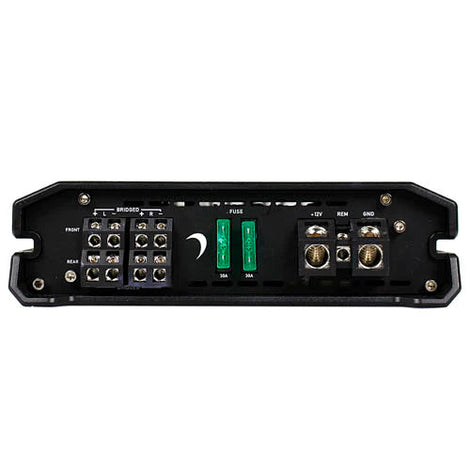

Diamond Audio DMD1100.6D DMD 6-Channel Full Range Digital Amplifier

Diamond Audio DMD1100.6D DMD 6-Channel Full Range Digital Amplifier
GENERAL INFORMATION

DMD series amplifiers from Diamond Audio provide best-in-class performance for the value, period! DMD series amplifiers provide substantial power in a small-footprint heat sink, which is the solution for any budget-friendly mobile audio sound system. DMD series comprises five amplifier models: one 4-channel, three mono-channel, and one 6-channel amplifier to select from.

  • 6 Channel Full Range Digital Amplifier
  • 350W x 2CH @ 1Ω (CH5 & CH6 Only)
  • 125W x 4CH + 250W x 2CH @ 2Ω / 80W x 4CH + 125W x 2CH @ 4Ω RMS Power Output
  • 250W x 2CH + 500W x 1CH @ 4Ω RMS Bridged Power Output
  • 700W x 1CH @ 2Ω RMS Bridged Power Output (CH5 & CH6 Only)
  • Input Sensitivity: 0.2-10 Volt
  • Selectable X-Over: LPF / FULL / HPF
  • Crossover Filter : 50-500Hz, 12dB Per Octave Slope
  • Frequency Response: 10-20KHz
  • Signal to Noise Ratio: > 90dB
  • Overall Operation Efficiency: >86%
  • Selectable REM / VOX / DC Turn On Modes
  • Selectable 2CH / 6CH Input Modes
  • Dimensions: 9.76" x 6.85" x 1.9" / 248.1 x 174 x 48.4 mm
