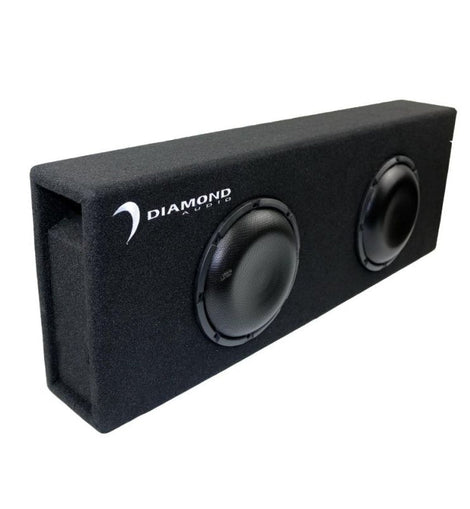

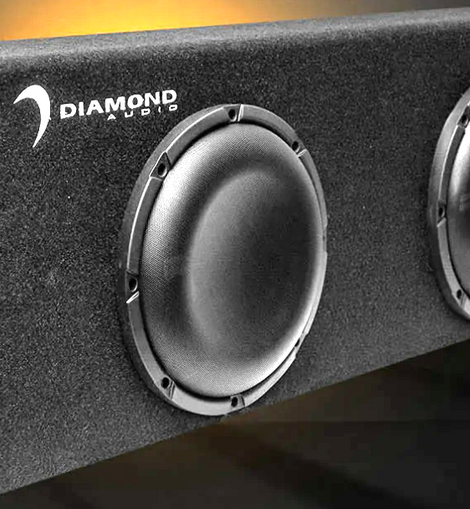

Diamond Audio DESMB8DA 8" 2 Ohm 500W RMS Power Handling Active Subwoofer Enclosure
Diamond Audio DESMB8DA 8" 2 Ohm 500W RMS Power Handling Active Powered Subwoofer Enclosure
The Diamond Elite DES Series subwoofers epitomize quality craftsmanship and precision engineering, delivering the best performance in their class. Designed for versatility, these new DES subwoofers are perfect for a variety of enclosure designs, providing dynamic sound and that signature Diamond Audio bass, capable of withstanding long, extended listening sessions.
Constructed with a high-grade reinforced hybrid paper fiber cone structure, the DES subwoofers handle extreme power effortlessly. The popular impedance switch feature adds to their versatility, ensuring that these subwoofers meet your specific audio needs without disappointment. Diamond Audio's new Microbox compact powered subwoofer system clearly delivers impressive bass output in a small package! These Microboxes come preloaded with a single or dual pair option of DES series 8" subwoofers. Constructed with high-strength MDF with extensive bracing and lock-tight fastening means no leaks and distortion-free bass response.
General Features:
- Dual 8" Ported Loaded Subwoofer Enclosure with Built-In Amplifier
- Peak Power Handling: 500 watts
- RMS Power Handling: 250 watts
- Final Impedance: 4-ohm
- Built-in Class D amplifier
- Includes Remote Bass Level Controller
- Thermally optimized for excellent heat dissipation
- Ported Square/Rectangle enclosure
- 4 AWG gauge power and ground wiring is recommended for installation
- Enclosure Dimensions: 6.4" TD x 6.4" W x 12" H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Subwoofer Features:
- Two 8" Diamond Audio DES84 Subwoofer
- Hybrid Fiber Paper parabolic cone
- Rubber surround material
- Ferrite Magnet Motor Structure
- DES Series Subwoofer
- Six-leg black powder-coated stamped frame
- Oversized chrome push terminals
- Dual mirror image spider with woven tinsel leads
- Black PVC wrap-around mounting gasket
- Vented pole and voice coil gap for cooler operation
- Klippel optimized motor and suspension symmetry
- Sensitivity: 82.1 dB
Amplifier Features:
- Class D Monoblock Amplifier
- Power/Protect LED status indicator
- Features an auto turn-on circuit
- Selectable VOX signal sensing, DC offset, or remote
- PWM MOSFET power supply
- Power supply and thermal protection circuitry
- Speaker-level (high-level) input via RCA
- Phase Adjustment: 0 - 180 degrees
- Low-Pass Crossover Frequency: 50 - 250 Hz
- Bass Boost: 0 - 18 dB Twin T-Filter (narrow Q)
- RCA Preamp Output: No
- Input sensitivity: 0.2 - 10 volts
- Fuse Rating: 30A x 2
Enclosure Features:
- 8" Ported Enclosure
- High-strength MDF with extensive bracing
- Features lock-tight fastening for distortion-free bass
- Box Finish: Black Carpet
