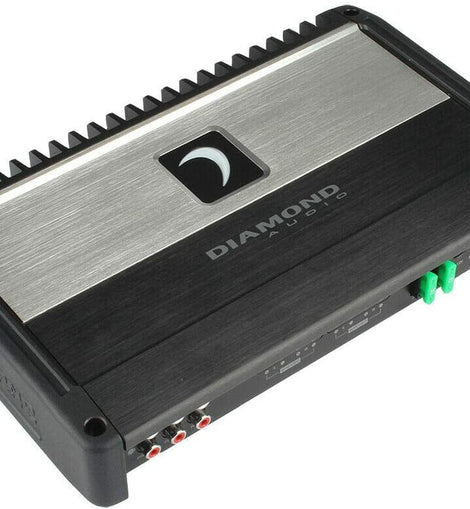

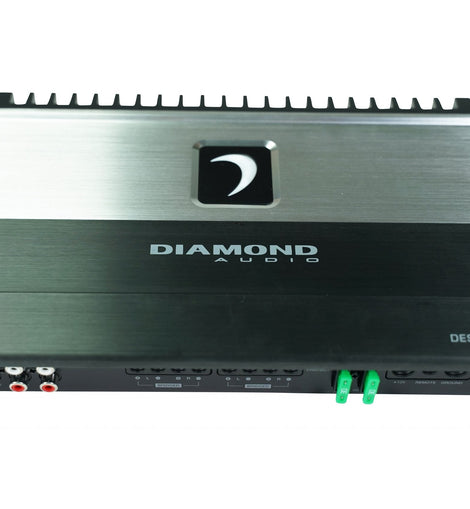

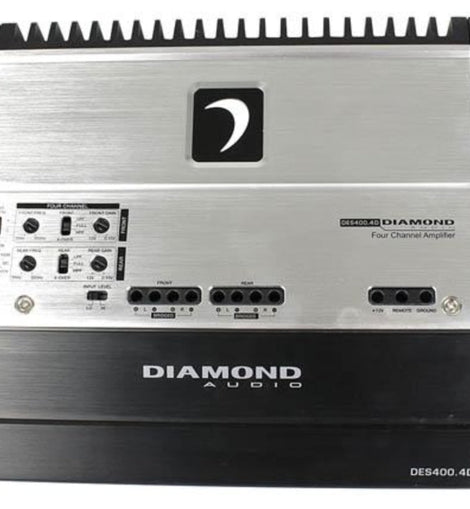

Diamond Audio DES400.4D 4-Channel Full Range Class D Amplifier
Diamond Audio DES400.4D 4-Channel Full Range Class D Amplifier
General Features
- Diamond Elite Series Class D 2 ohm Stable 4-Channel Amplifier
- 4 Ohms RMS Power Rating: 140 watts x 4 channel
- 2 Ohms RMS Power Rating: 170 watts x 4 channel
- Bridged Power Rating: 400 watts x 2 channel @ 4 ohm
- Total power output: 800 watts
- LED Power/Protect Light
- Surface mount component technology with 4-layer PCB

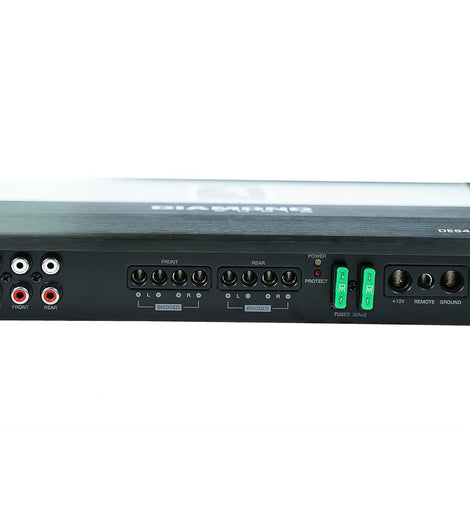

- Compact size with single-sided connections
- Speaker-level (high-level) inputs via direct connection of speaker wire to the low-level inputs
- Switched speaker level turn on options (Vox/DC Offset/Rem)
- Input sensitivity
- Frequency Response: 10 - 35000 Hz
- Total Harmonic Distortion (THD): 0.07%
- Signal to Noise Ratio: -77.4 dB
- Variable low-pass filter: 35 - 350 Hz
- Fuse Rating: 60A
- 8 AWG gauge amplifier wiring kit is recommended for installation
- Dimensions: 9.3" L x 5.27" W x 1.75" H
- Authorized Internet Dealer
-
1-year Manufacturer's Warranty
