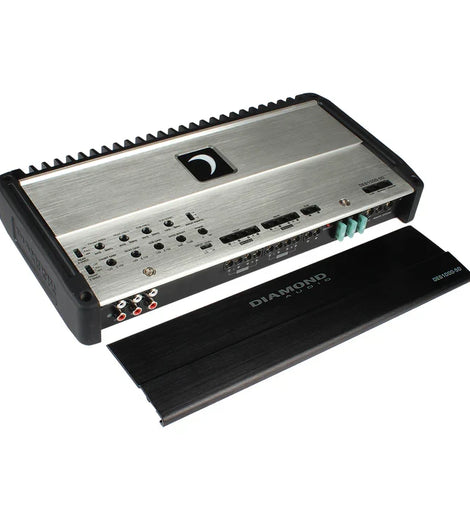

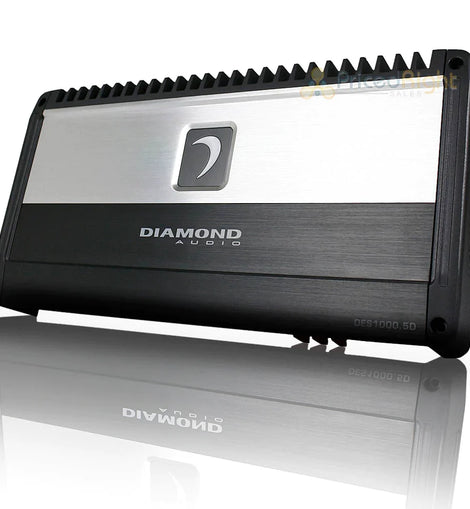

Diamond Audio DES1000.5D 5-Channel 1000W RMS Full Range Class D Amplifier
Diamond Audio DES1000.5D 5-Channel 1000W RMS Full Range Class D Amplifier
Introducing the Diamond Elite DES Series Amplifiers - our flagship line that has set the standard since its debut last year. Engineered and designed from the ground up, these amplifiers are more compact than previous generations while maintaining consistent footprint dimensions across all models. This meticulous design ensures the Diamond Elite DES Series amplifiers deliver even more dynamic sound and optimal rated power at all impedance levels.
Each amplifier in the Diamond Elite DES Series boasts advanced features, including multiple switched speaker-level turn-on options (VOX/DC Offset/REM) and the latest digital chipset technology. These innovations offer unparalleled installation flexibility and the precise controls necessary to fine-tune and enhance the sound quality of any car audio system.
General Features:
- Diamond Audio Elite Series Class D 2 ohm Stable 5-Channel Amplifier
- 4 Ohms RMS Power Rating: 90 watts x 4 channel + 150 watts x 2 channel
- 2 Ohms RMS Power Rating: 150 watts x 4 channel + 250 watts x 1 channel
- Bridged Power Rating: 300 watts x 2 channel + 500 watts x 1 channel @ 4 ohm
- Total power output: 1100 watts
- LED Power/Protect Light
- Surface mount component technology with 4-layer PCB
- Compact size with single-sided connections
- Speaker-level (high-level) inputs via direct connection of speaker wire to low-level inputs
- Switched speaker level turn on options (Vox/DC Offset/Rem)
- Input sensitivity
- Frequency Response: 10 - 350 Hz
- Total Harmonic Distortion (THD): 0.03%
- Signal to Noise Ratio: -76.7 dB
- Variable high-pass filter: 35 - 350 Hz
- Variable low-pass filter: 35 - 350 Hz
- Variable Bass Boost: 0 - 12 dB
- Fuse Rating: 40A x 3
- 4 AWG gauge power and ground wiring is recommended for installation.
- Dimensions: 7.67" W x 12.6" L x 2" H
- Authorized Internet Dealer
-
1-year Manufacturer's Warranty
