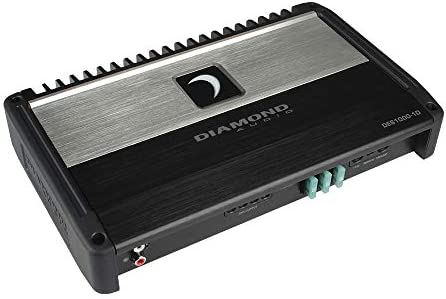

Diamond Audio DES1000.1D DES 1-Channel Full Range Class D Amplifier
Diamond Audio DES1000.1D DES 1-Channel Full Range Class D Amplifier
Diamond Elite DES series amplifiers have been our work horse ever since its introduction. It was engineered and designed from the ground up. Smaller than the previous generation and constructed with the same footprint dimensions for all models, these amplifiers have been engineered to sound even more dynamic and to deliver optimal rated power at all impedance levels! A ll Diamond Elite DES series amplifiers feature various switched speaker level turn on options (VOX/DC Offset/REM), utilize the latest digital chipset technology, and provides installation flexibility and all the controls necessary to fine-tune and improve the sound quality of any car audio system.
General Features
- 800X1 @ 4Ω RMS
- 1000X1 @ 2Ω and 1Ω RMS
- S/N: < -100dBA
- Dimensions: (Remote Included): 11.81" x 2" x 7.25" (300mm x 50.8mm x 185mm)
- Latest High-Efficiency Full Range Digital Topology
- Surface Mount Component Technology with 4-Layer PCB
- Common Compact Size with Single-Sided Connections and Top Mount Controls
- Handles HI and LO level input up to 12V
- Switched Speaker Level Turn On Options (VOX/DC Offset/REM)
- Remote Bass Level Control Included
- Fully Variable 35Hz - 350Hz 12dB per Octave Crossovers
- 0 -180 Degrees of Phase adjustment
- Bass Boost EQ Up To 12dB
