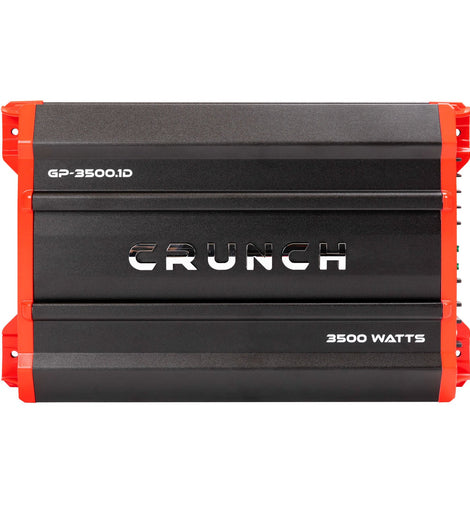

Crunch GP-3500.1D GROUND POUNDER with QTD Technology delivers 3500 watts at 1 ohm stability to subwoofers and features include built-in electronic crossovers and includes bass remote.

General Features:

• Low Noise Preamplifier Circuit
  Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process.

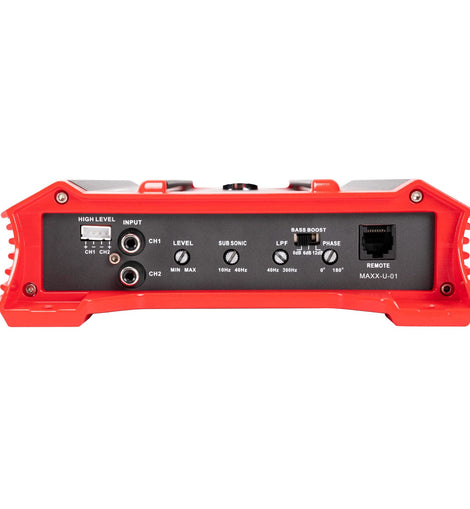

• RCA Inputs
  Highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path.
• High Level Inputs
  Easily tie into OEM audio systems that do not offer RCA output to maximize after market amplifier power.
• Operation Mode
  Mono only
• Crossover Type
  Variable Electronic 12dB Per Octave
• Electronic Equalizer
  Fully Adjustable 12dB Crossovers
• Class / Topology
  Class D: Very efficient D-Class to drive additional power to subwoofer frequencies while remaining a small footprint.
• Output Device Technology
  Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion.
• Heat Sink
  QTD Technology Aluminum: Quick Thermal Dispersion Technology assures additional mass in the aluminum heat sink keeps the amplifier running cool with nearly undetectable distortions during normal music listening.
• Power Supply
  High energy Pulse Width Modulated Power Supply delivers power with minimal impact on the electrical system.

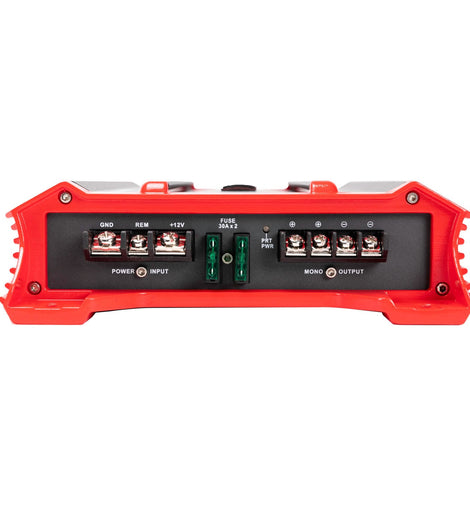

• Output Connections
  Nickel Plated Brass Connection with terminals allow for secure connection while resisting corrosion.
• Connection Type
  Screw Down Connectors: Easy access for hand tool allowing a quick and secure connection.
• LED System Protection Circuitry Diagnostics
  Monitor overload and speaker short protection with lighted indicators on the amplifier end panel.

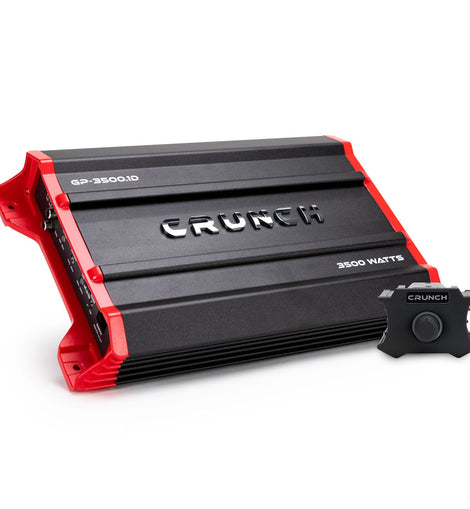

• Bass Remote Included
  Wired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle.

Specifications:

• Type
  Amplifier
• Brand
  Crunch
• Series
  GROUND POUNDER
• Category
  Mobile
• Condition
  New
• Color
  Black/Red
• Model Replaced
  PD-3000.1D
• Warranty
  1 Year
• Compatible Vehicles
  Universal
• Amp Class
  Class D
• Amp Total Channels
  1
• Amp Max Power (watts)
  3500
• Amp Power @ 1 Ohm (ch x watts)
  1 x 3500
• Amp Power @ 2 Ohms (ch x watts)
  1 x 1750
• Amp Power @ 4 Ohms (ch x watts)
  1 x 875
• Amp Crossover
  Variable Electronic 12dB Per Octave
• Amp Tone Control / Parametric EQ
  Built-in Bass Control
• Amp Bass Boost
  Switchable: 0/+6/+12dB
• Amp Subsonic Filter
  10Hz-40Hz
• Amp Phase Shift
  0-180 Degrees
• Amp Variable Voltage
  0.2-9V
• Amp Frequency Response
  10Hz-500Hz
• Amp Speaker Level Audio Inputs
  Yes
• Amp Power Terminal 12v/GND
  4 AWG
• Amp Speaker Terminal Wire Gauge
  12 AWG
• Amp Fusing
  30A x 2
