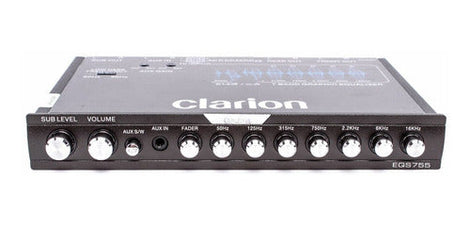

Clarion EQS755 Car Audio 7-Band Graphic Equalizer with Front 3.5mm Auxiliary

Notify me when this product is available:

Clarion EQS755 Car Audio 7-Band Graphic Equalizer with Front 3.5mm Auxiliary

Building off of the legendary Clarion EQS746 platform, Clarion now introduces the EQS755. The EQS755 features a Front 3.5mm Auxiliary Input to add equalizer control to any external device. Be it a smartphone, mp3 player, or laptop the EQS755 allows you to directly connect any device's output straight to the equalizer without having to get to the Rear of the EQs chassis. For those that prefer the clean look of having No wires hanging off the front of the EQ, the EQS755 inherits the traditional Rear RCA Auxiliary Input. In addition, the EQS755 offers more flexible connection options than its predecessors with its High-Level Input option - Installs are no longer limited to aftermarket head units.

General Features:

  • 7-Band Graphic Equalizer
  • 50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, 16kHz
  • 6-Channel / 8-Volt RCA Outputs (Front, Rear, and Subwoofer)
  • Blue illumination
  • Gold-plated contacts for optimum signal transfer
  • Master and subwoofer volume control
  • 3.5mm Front AUX Input
  • 2-Channel Rear RCA AUX Input with Variable Gain Adjustment
  • Selectable 12dB Low-Pass Filter (60Hz or 90Hz)
  • Fader Control
  • Ground Loop Isolation Circuit
  • RCA and High-Level Speaker Inputs
  • Dimensions: 7.00"W x 4.25"D x 1.00"H
  • Number of Bands: 7
  • EQ Center Frequencies: 50Hz, 125Hz, 315Hz, 750Hz, 2.2KHz, 6KKz, 16KHz
  • Input sensitivity: AUX Inputs 3.6v
  • Input sensitivity: Speaker Inputs 10.8v
  • Signal-to-noise ratio: 83dB
  • Max Output Level: 8V
  • Cut/Boost: +/- 12dB
  • Frequency response: 8Hz-40,000Hz
  • Channel separation: 73dB/1KHz
