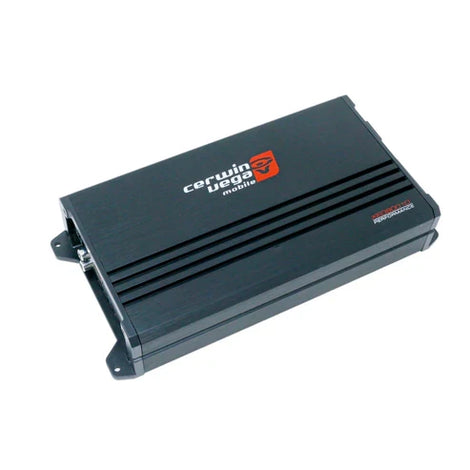

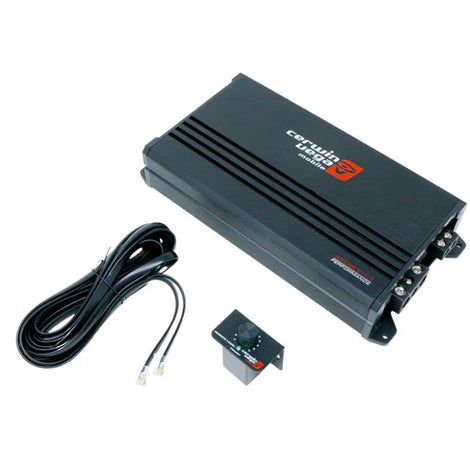

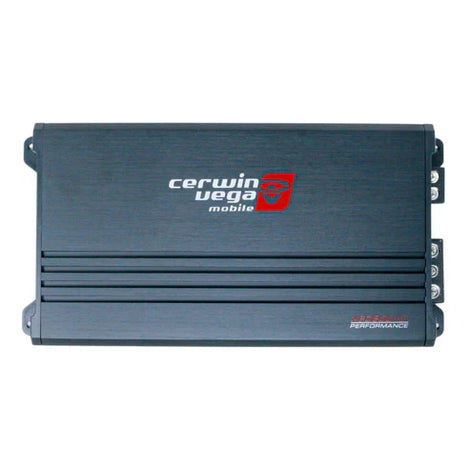

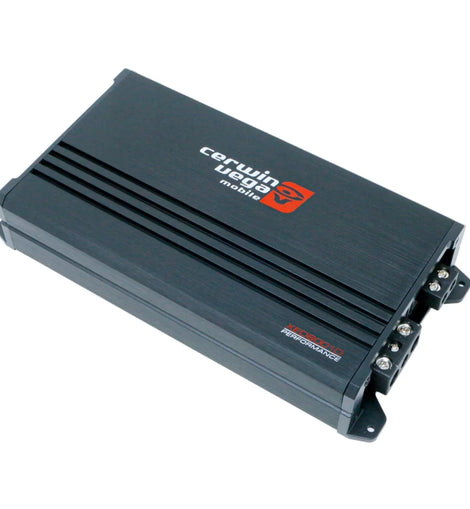

Cerwin Vega XED8001D XED Series 1-Channel Class-D Monoblock Amplifier 1100W

The Cerwin-Vega XED Series Amplifiers are your ticket to high-performance car audio with power, precision, and reliability. Designed with Xtreme Energy Design, these amplifiers are engineered to take your sound system to the next level, delivering exceptional power and efficiency for every beat.

Precision Engineering for Superior Performance

• Class D Amplifier Technology: High-efficiency design ensures massive power output with minimal heat generation.
• Lightweight Aluminum Chassis: Enhances heat dissipation while reducing weight for efficient, long-lasting performance.

Durability Meets Power

• Robust Construction: Crafted with premium components for consistent, reliable operation.
• Built for Demanding Setups: Ideal for high-power audio systems, effortlessly driving subwoofers and speakers with clean, distortion-free sound.
• Performance that Thrills

The XED Series Amplifiers are built for those who crave deep bass, crisp highs, and seamless mids. With their cutting-edge technology and meticulous craftsmanship, they deliver the power and clarity needed to make every drive an immersive audio experience.

Why Choose the XED Series?

• Unrivaled Efficiency: Advanced Class D technology provides unmatched power-to-heat performance.
• Durable & Lightweight: Aluminum construction ensures cool operation and lasting reliability.
• High-Energy Output: Perfect for audiophiles seeking powerful and dynamic sound reproduction.

Unleash the full potential of your car audio system with Cerwin-Vega XED Series Amplifiers—where Xtreme Energy meets extreme performance.

Specifications:

POWER RATING

FREQUENCY RESPONSE (HZ): 35HZ - 350HZ
RMS POWER PER CHANNEL 4Ω 450W X 1
RMS POWER PER CHANNEL 2Ω 800W X 1

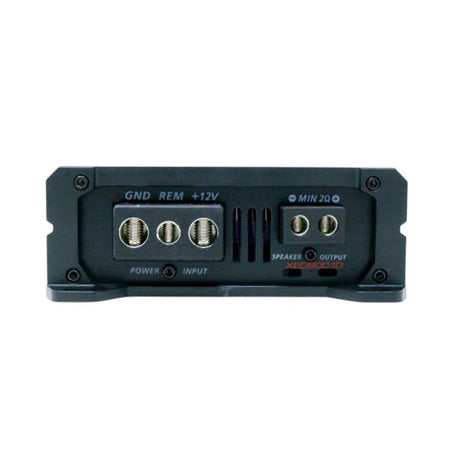

POWER SUPPLY

• Power Supply: Full PWM
• Power Supply Threshold: 10.0V-16.0V (DC)
• Idle Current: (0.7A)

DISTORTION

• THD 4 (100Hz @4Ω): <0.1%
• S/N Ratio (A weighted @1W): -85dBA
• S/N Ratio (A weighted @FP): -101.1dBA

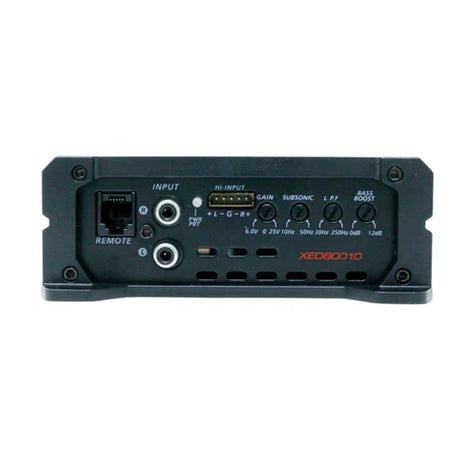

INPUT SENSITIVITY

• Low Input Level: 250mV-6V
• High Input Level: 1.1V~>20.0V

INPUT IMPEDANCE

• Low Input Level: 20KΩ
• High Input Level: 100Ω

OUTPUT STAGE

• Output Impedance: 2Ω
• Damping Factor (50Hz @ 4Ω): >70
• Bandwidth (-3dB): 10Hz-250Hz

CROSSOVER (-12dB/Oct)

• Variable High-Pass:
• Variable Low-Pass: 35Hz-250Hz
• Variable Sub-Sonic: 10Hz-50Hz

FUSE RATINGS

• ATC: 35A x 2 (Inside)

DIMENSIONS

• L x W x H: 8.7"x 4.7"x 1.8" (220mm x 120mm x 46.5mm)

General Features:

• Bass Boost: 0dB-12dB
• LED Power/Protect Light Indicator

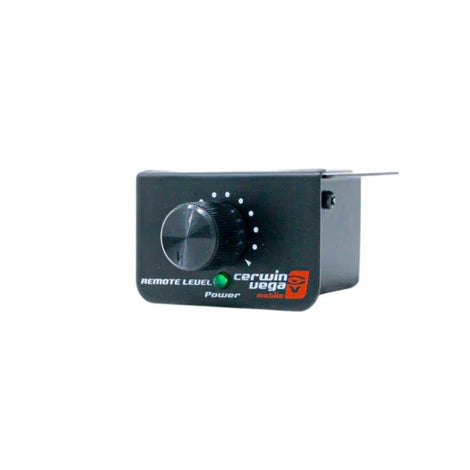

• Bass Control Included
• MFR #: XED8001D
