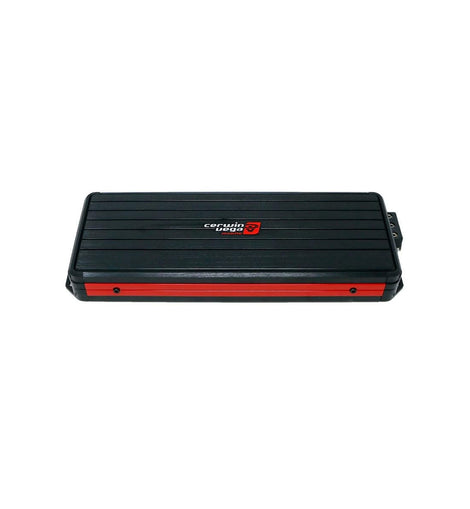

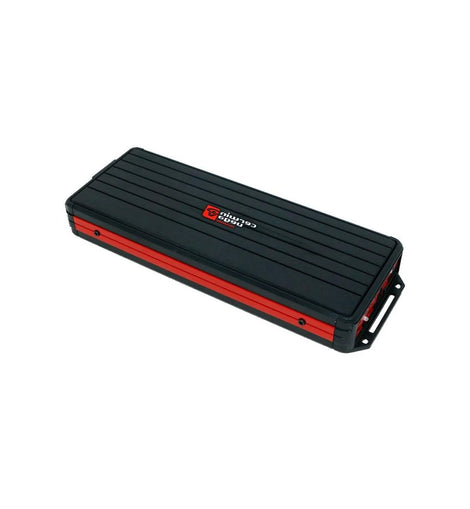

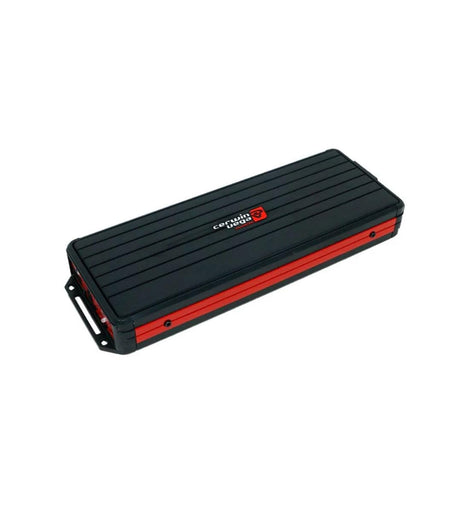

Cerwin-Vega VCU86 Vega Series 6 Channel Class D Digital Amplifier 900W Compact & High-Efficiency Full-Range Power

Cerwin-Vega Vega Series Amplifiers - Compact Design, Monstrous Power

The Vega Series Amplifiers have solidified their place as the backbone of the Cerwin-Vega Mobile brand, delivering unrivaled performance in a sleek, compact package. Don't be deceived by their streamlined design—these amplifiers pack a punch with monstrous power output to drive your system to its fullest potential.
Innovation Meets Power

Updated High-Efficiency Full Range Digital Topology

Experience exceptional sound clarity with maximum energy efficiency.
Enhanced Power IR Digital Chipset: Engineered for stability and precision, ensuring consistent performance under any condition.

Engineered for Durability

Conformal-Coated 4-Layer PCB: Protected against moisture and environmental wear for long-lasting reliability.
Water-Resistant Design: Built to withstand the rigors of the road, wherever your journey takes you.

Unmatched Versatility

Remote Turn-On Configurator (REM/DC/VOX): Simplifies integration with any audio system.
Accepts Hi and Lo-Level Inputs Up to 12V: Seamlessly connects to your existing setup, no matter the source.
Boosted RFI Rejection: Keeps your sound crystal-clear, free from interference.

Compact Design, Big Impact

The matching heatsink platform dimensions ensure a consistent, stylish look while optimizing thermal management for uninterrupted performance.
Why Choose Vega?

Whether you're a seasoned audio enthusiast or just starting to elevate your system, the Vega Series Amplifiers offer a balance of design, durability, and performance that's hard to beat. From pounding bass to crystal-clear highs, these amps are the powerhouse your system deserves.
The Vega Legacy

With Cerwin-Vega's unmatched legacy of audio innovation and more than 65 years of expertise, the Vega Series Amplifiers continue to define what's possible in mobile sound systems.

Compact. Powerful. Reliable. Elevate your audio experience with Vega Series Amplifiers.

General Features:

• VEGA Series Class D 2 ohm Stable 6-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 100 watts x 6 channel
• 2 ohm: 150 watts x 6 channel
• Bridged: 300 watts x 3 channel @ 4 ohm
• Total power output: 900 watts
• LED Power/Protect Light

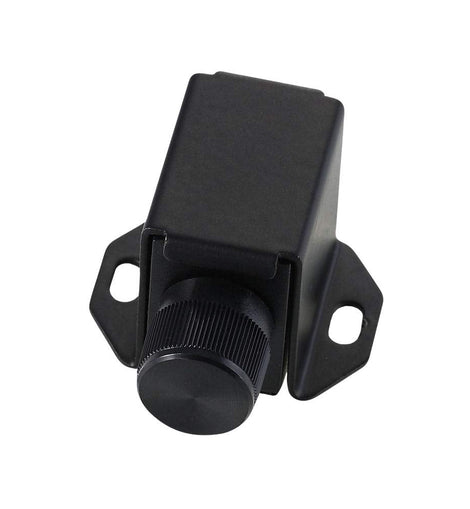

• Wired remote bass knob included
• Speaker-level (high-level) inputs
• Allows high and low-level input up to 10V
• Signal sensing remote turn-on
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Enhanced Infineon IRS class D drive chipset
• Conformal-coated 4-layer footprint circuit PC board
• Selectable REM, VOX, and DC turn-on modes
• Boosted RFI (Radio Frequency Interference) rejection
• Compact matching heatsink platform dimensions
• Disconnected RCA input and speaker output harness kits included
• Selectable 2-channel and 6-channel input modes
• Low Level Input sensitivity: 0.2 - 10 volts
• High Level Input sensitivity: 0.2 - 10 volts
• Total Harmonic Distortion (THD): 0.5%
• Signal to Noise Ratio: 85 dB
• Variable high-pass filter: Flat or Fixed 70 Hz
• Variable low-pass filter: 40 - 400 Hz
• Fuse Rating: 60A
• 1/0 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 10.5" L x 4" W x 1.4" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
