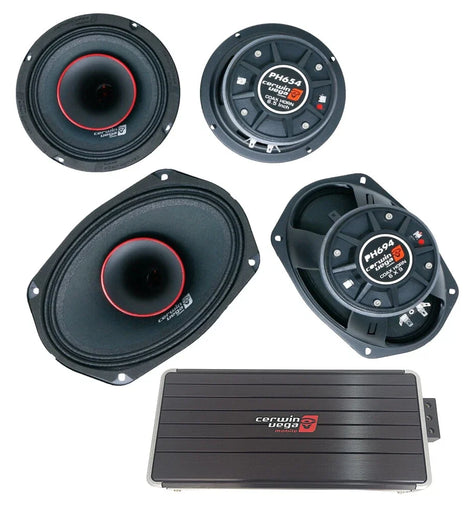

Cerwin Vega PH654 6.5" & PH694 6x9" Horn Speakers + B54 1200W 4-CH Amplifier

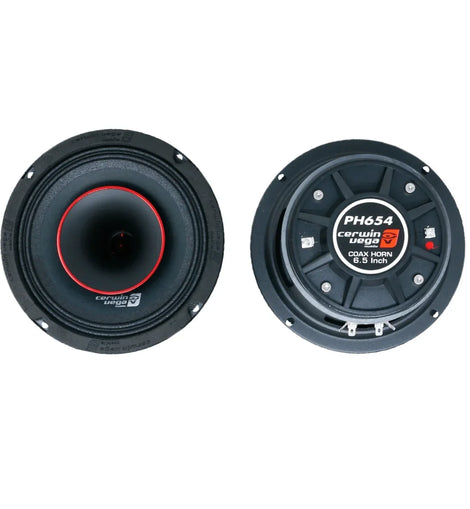

Cerwin Vega PH654 600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers
-
6.5" PRO Full-Range Co-Ax Horn Speaker
-
150W RMS/300W MAX Power Handling
-
Ferrite Strontium High-Temp Magnet Structure
-
Heavy Duty Stamped Steel Basket
-
Advanced Voice Coil Heat Sink Design for better Heat Dissipation
-
1.5" Double Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer
-
1.0" Single Layer High Temp Voice Coil with Voice Coil former for Tweeter
-
Frequency Response: 110Hz -18KHz
-
High Sensitivity 101dB 1W/1M
-
12dB 2nd Order Filter Crossover for better Protection of the Tweeter
-
Mounting Diameter: 3.09" / 78.5mm
-
Mounting Depth: 5.67" / 144mm
Cerwin Vega PH694 PRO Series 6"x9" 2-Way Full-Range Coax Horn Speakers
General Features:
-
6 X 9" PRO Full-Range Co-Ax Horn Speaker
-
160W RMS/320W MAX Power Handling
-
Ferrite Strontium High-Temperature Magnet Structure
-
Heavy Duty Stamped Steel Basket
-
Advanced Voice Coil Heat Sink Design for better Heat Dissipation
-
1.5" Double Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer
-
1.0" Single Layer High Temp Voice Coil with Voice Coil former for Tweeter
-
Frequency Response: 80Hz -18KHz
-
High Sensitivity 101dB 1W/1M
-
12dB 2nd Order Filter Crossover for better Protection of the Tweeter
-
Mounting Depth: 3.90" / 99mm
-
Mounting Diameter: 8.74" x 5.98" 222 x 152mm

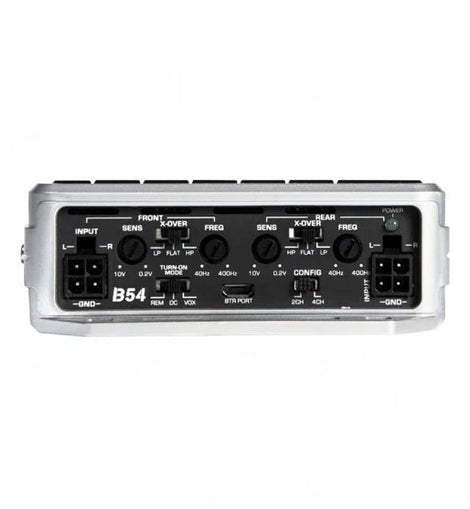

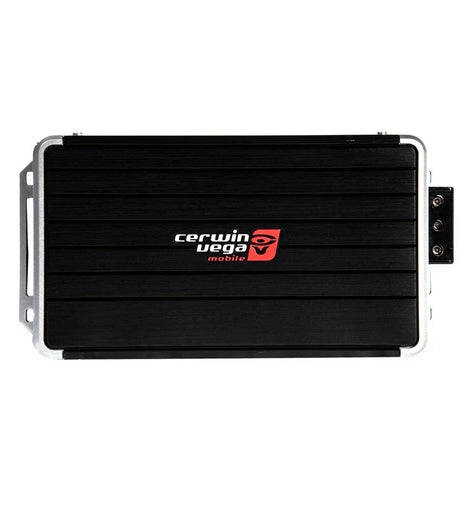

Cerwin Vega B54 Stealth Bomber 4-Channel Class-D Full Range Amplifier
General Features:
-
Full Range Class D IR Chipset
-
DirectFET Power Mosfet Output Stage
-
SMD Technology on 4-Layer PCB Board
-
Water-Resistant Conformal PCB Board Coating
-
4 Channel Amplifier
-
150W X 4 @ 2Ω RMS
-
80W X 4 @ 4Ω RMS Power
-
300W X 2 Bridged Stereo
-
Advanced Rollback Power/Thermal Protection
-
Crossover: 40Hz-400Hz (LP/HP)
-
Frequency Response: 10Hz-33KHz
-
Dimensions: 1.4"x 4.0"x 8.8" (36mm x 102mm x 225.6mm)
