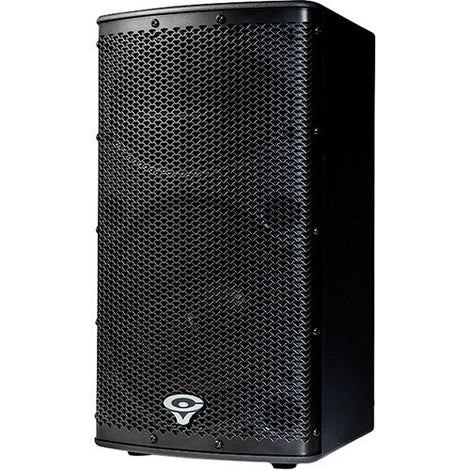

Cerwin-Vega P1000X 10" 2 Way 1000 Watt Powered Active PA Speaker

The P1000X powered active PA speaker from Cerwin-Vega is a two-way, bi-amped, full-range bass-reflex speaker. It employs a 10-inch woofer and a high-frequency compression driver, powered by a custom Class-D amplifier. With a power rating of 1000 watts, the P1000X is one of the most powerful PA products in its class. A proprietary hemi-conical horn delivers premium sound clarity with even, wide coverage.

A built-in mixer with convenient I/O connections allows for simple and fast setup, while Enhanced EQ, VEGA BASS boost and High-Pass Filters enable exact tuning and exceptional performance for any application. The P1000X is a versatile product that can be used as a single active PA speaker for small venues, set in pairs or installed with threaded hang points, and combined with the P1800SX Sub for a larger venue needing more coverage and SPL. Its compact size makes it ideal to operate as a floor monitor as well.

General Features:

• A fully integrated sound reinforcement system results in a simplified solution to delivering public address, entertainment and performance monitoring
• Rugged enclosure with multiple handle locations makes transport and setup safe and easy
• Full-range and subwoofer models use high-efficiency Cerwin-Vega! components for low-frequency bass with punch
• The integrated mixer and efficient amplifier design reduces the amount of gear required for an easier setup and less worry about limited power
• resources
• Angle-adjustable pole mount socket, side-wedge shaped enclosure and M10-threaded suspension points support a variety of permanent and
• portable setups
• Stackable design to minimize transportation and storage area. Thick, powder-coated grill protects the drivers during transportation and storage

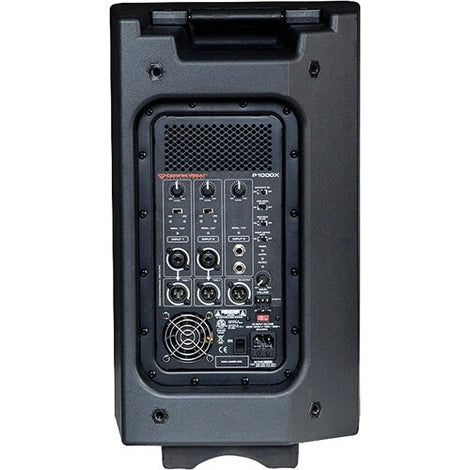

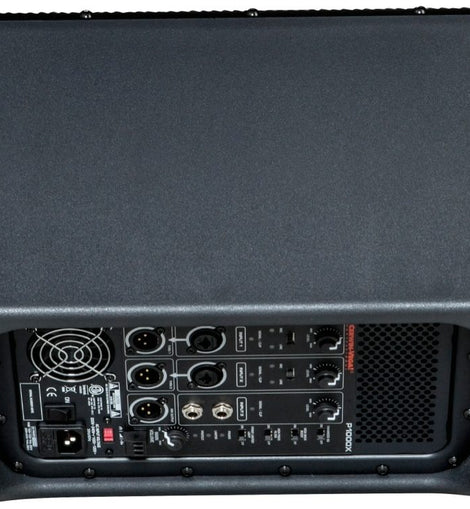

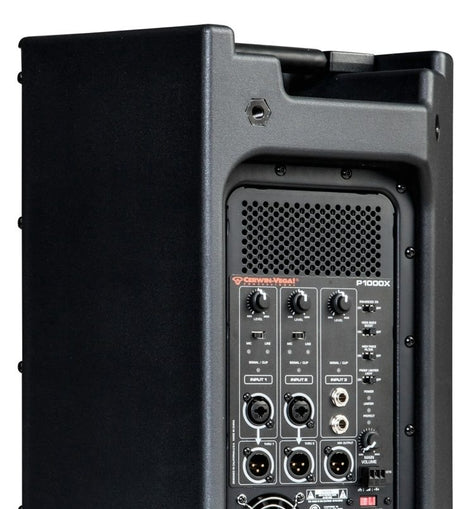

Mixer:

• Built-in 3-channel mixer with easy-to-identify controls, and an intuitive layout for fast
• setup and minimal connections
• THRU, MIX, or LINK outputs for fast "daisy-chain" connections and system expandability
• User-controlled digital filters and ENHANCED EQ allow the system to be tuned to the
• exact requirements of the event

Amplifier:

• 1500 watt Bi-amplified Class-D design and universal switching
• mode power supply delivers premium performance in an efficient and portable design
• Built-in limiter with on/off LED indicator provides essential protection to minimize the
• risk of down-time and prevent component damage

Speaker:

• Proprietary Cerwin-Vega! Hemi-Conical Waveguide provides smooth on and off-axis
• frequency response
• High Frequency Driver - compression driver provides natural-sounding instruments
• and vocals
• Low Frequency Driver - Metal frame, reflex-loaded woofers achieve accurate bass
• response and provides the punch you expect from a Cerwin-Vega! system
• Direct-firing subwoofer features internal bracing to reduce enclosure resonance and
• increase transient performance
• Frequency Range (+3 / -10 dB): 51 Hz - 22.5 KHz

• Frequency Response (+/-3 dB): 61 Hz - 20.6 KHz
• Nominal Coverage (-6 dB): 90 Horizontal, 65 Vertical
• Maximum SPL(1) @ 1m: 128 dB
• Amplifier Type: Class D
• System Dynamic Power Rating: 1000 Watts
• Operating Temperature: -20 to 55C
• Dimensions (H x W x D): 20.9in x 12.2in x 12.2in
• (532mm x 310mm x 310mm)
• Weight: 38.5 LBS / 17.46 Kg

Warning:
This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
