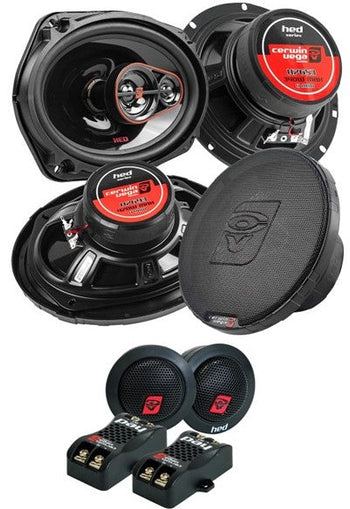

Cerwin Vega HED Series H7693 6x9" 840W + H7653 6.5" 620W + H7TAK Tweeter 300W Package

Cerwin Vega H7693 HED Series 6"x9" 3-Way Coaxial Speakers

Upgrade your sound with the HED Series Speakers from Cerwin-Vega —the ultimate choice for enhancing your vehicle's audio experience. Say goodbye to factory-installed speakers and embrace a new level of performance that delivers both exceptional loudness and crystal-clear clarity. Whether you're cruising down the road or blasting your favorite tracks, the HED Series ensures your music sounds its best.

General Features:

• SPEAKER SIZE - 6X9."

• SPEAKER TYPE - TRI AXIAL, SPEAKER TYPE - CO AXIAL

• OHMS (PER COIL) - 4

• NUMBER OF VOICE COILS - SINGLE

• CONE MATERIAL - POLYPROPYLENE

• DIAPHRAGM MATERIAL - MYLAR

• BASKET MATERIAL - STAMPED STEEL

• MAGNET TYPE - FERRITE (CERAMIC)

• SURROUND MATERIAL - TREATED FOAM

• CROSSOVER INCLUDED - YES - INTERNAL

• FREQUENCY RESPONSE (HZ): 50HZ-20KHZ

• VOICE COIL DIAMETER - INCH (MM) - 1"

• THIELE/SMALL PARAMETERS

• SENSITIVTY (1W/1M): 86.5DB

• QTS: 53.5HZ

• FREE AIR RESPONSE FS (HZ): 53.5HZ

• VAS (L): 24.4

• XMAX (MM): 2.625(MM)

• POWER HANDLING RMS: 70W

• POWER HANDLING MAX: 420W

• MOUNTING DEPTH: 3.3" (86MM)

• MOUNTING DIAMETER: 7.71" X6.4" (196MMX163MM)

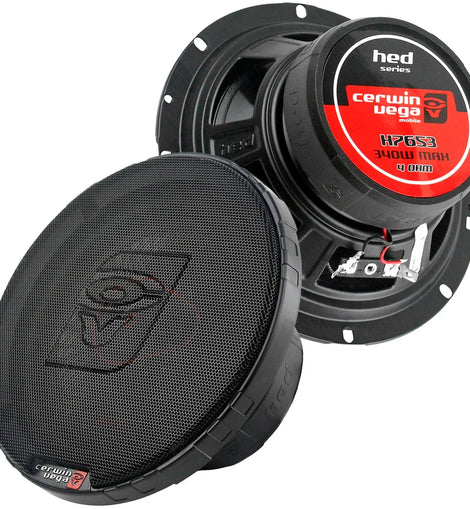

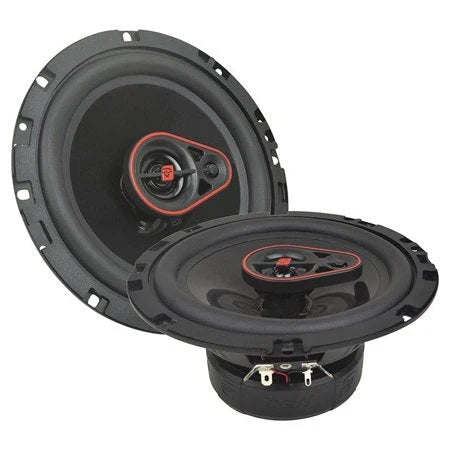

Cerwin Vega H7653 HED Series 3-Way Coaxial Speakers 6.5", 340 Watts Max
General Features:

• 6.5" HED Series 3-Way Car Speakers
• Peak: 680 watts per pair / 340 watts each
• RMS: 120 watts per pair / 60 watts each
• Graphite-injected reinforced polypropylene cone
• Rubber surround
• 1" balanced dome PEI black polypropylene tweeter
• 1/2" Balanced dome PEI polypropylene tweeter
• Voice coil size and type
• Top-mount Depth: 2.24"
• Cutout Dimensions: 5.7"
• 4 ohms impedance
• Frequency Response: 55 - 20,000 Hz
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

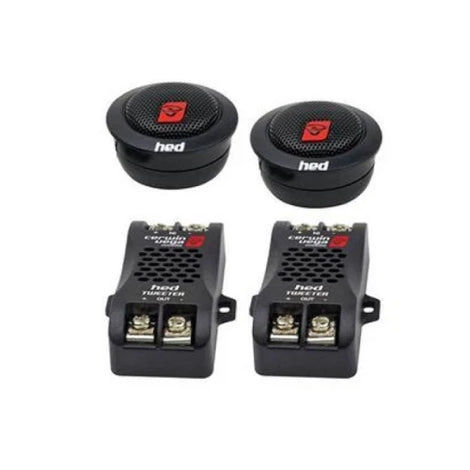

Cerwin Vega H7TAK HED Series 1" Silk Dome Tweeters

General Features:

• SPEAKER SIZE - .75"

• SPEAKER TYPE - TWEETER

• OHMS (PER COIL) - 4

• NUMBER OF VOICE COILS - SINGLE

• CONE MATERIAL - SILK

• DIAPHRAGM MATERIAL - SILK

• BASKET MATERIAL - COMPOSITE PLASTIC

• MAGNET TYPE - NEODYMIUM

• INCLUDES SPEAKER GRILL - YES

• SURROUND MATERIAL - URETHANE

• YES - EXTERNAL

• FREQUENCY RESPONSE (HZ): 3.5KHZ-20KHZ

• VOICE COIL DIAMETER - INCH (MM) - 0.50

• POWER HANDLING RMS: 35W

• POWER HANDLING MAX: 300W

• MOUNTING DIAMETER: 1.85"(46.99MM)
