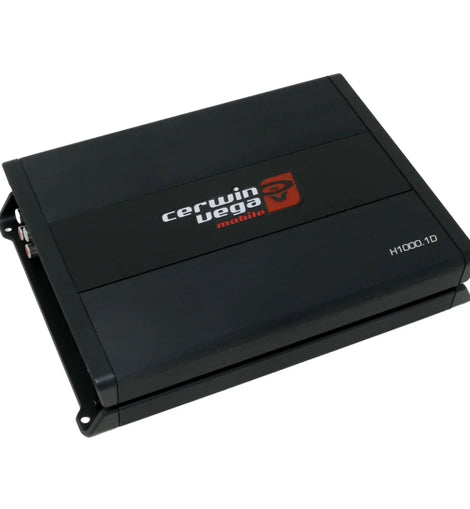

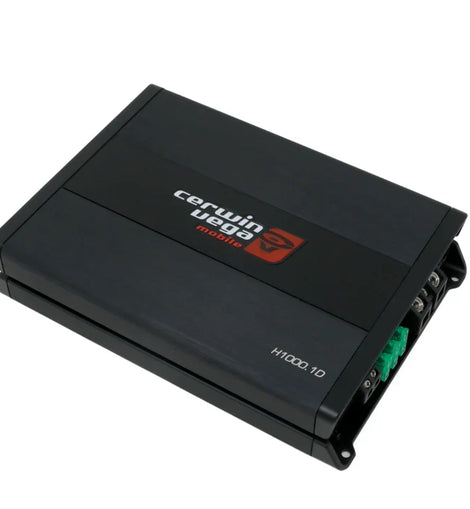

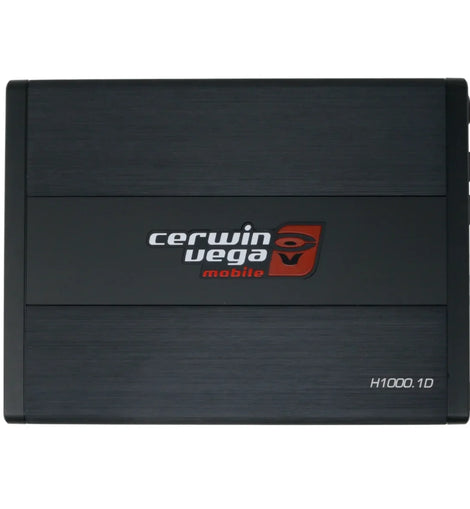

Cerwin Vega H1000.1D HED 1-Channel 1000W Class-D Monoblock Amplifier

The Cerwin-Vega HED Series Amplifiers are engineered to elevate your car audio experience with cutting-edge technology, unmatched performance, and long-lasting durability. Built for enthusiasts who demand superior sound and reliability, the HED Series amplifiers deliver power and precision in every note.

Advanced Engineering for Peak Performance

• High-Efficiency Class D Technology: Maximizes power output while minimizing heat, ensuring clean and distortion-free sound reproduction.
• Lightweight Aluminum Chassis: Provides exceptional heat dissipation, ensuring optimal performance even under demanding conditions.

Durable and Reliable by Design

• Meticulous Construction: Crafted with high-quality components for a robust, long-lasting build.
• Efficient Cooling: Innovative chassis design dissipates heat effectively, keeping the amplifier cool for continuous operation.

Power That Drives Your Audio

The HED Series Amplifiers are designed to deliver powerful, clear sound that meets the needs of even the most demanding audio setups. Whether you're pushing massive subs or powering a full-range speaker system, these amplifiers provide the energy and precision you need.

Unleash the HED Advantage

• Built for Performance: Designed for demanding setups that require consistent, high-power output.
• Cutting-Edge Class D Technology: Provides high efficiency and reliable power without overheating.
• Versatile and Durable: Perfect for audiophiles looking for a robust and efficient amplifier that excels in any environment.

Step into a world of precision, power, and reliability with the Cerwin-Vega HED Series Amplifiers. Redefine your sound system and experience audio like never before.

Specifications:

POWER RATING

FREQUENCY RESPONSE (HZ): 50HZ-500HZ
RMS POWER PER CHANNEL 4Ω 450W X 1
RMS POWER PER CHANNEL 2Ω 700W X 1
RMS POWER PER CHANNEL RMS 1Ω 1000W

POWER SUPPLY

• Power Supply: 12V-14.4V
• Power Supply Threshold: 8.4V-16.5V
• Idle Current: 1.1A

DISTORTION

• THD: <0.3%
• S/N Ratio (A weighted @1W): >90dBA
• S/N Ratio (A weighted @FP): -88dBA

INPUT SENSITIVITY

• Low Input Level:
• High Input Level: 0.3V-8.5V

INPUT IMPEDANCE

• Low Input Level: 22KΩ
• High Input Level:

OUTPUT STAGE

• Output Impedance: 2Ω
• Damping Factor (50Hz @ 4Ω): >100
• Bandwidth (-3dB): 10Hz-300Hz

CROSSOVER (-12/-24 dB/Oct)

• High Pass:
• Variable Low-Pass: 50Hz-250Hz
• Variable Sub-Sonic: 10Hz-55Hz

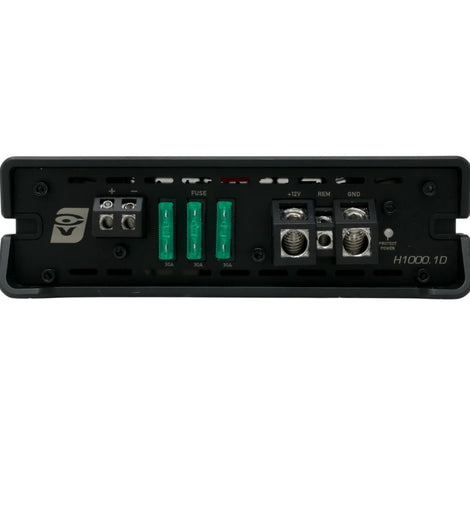

FUSE RATINGS

• ATC: 30A x 3

DIMENSIONS

• L x W x H: 9"x 6.3"x 1.9" (229.5mm x 160mm x 48.3mm)

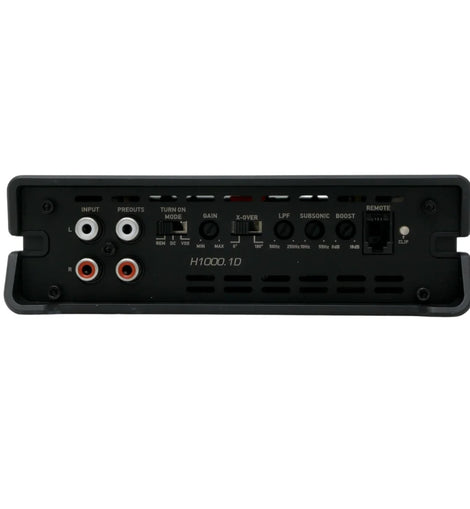

General Features:

• Selectable Turn On Mode: REM/VOX/DC
• Selectable Phase: 0°-180°
• Bass Boost: 0dB-18dB
• LED Power/Protect Light Indicator
• LED Clipping Indicator - Helps Set Gains
• Bass Control Included
