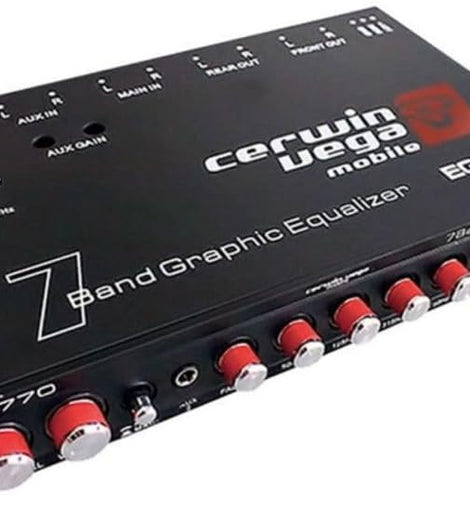

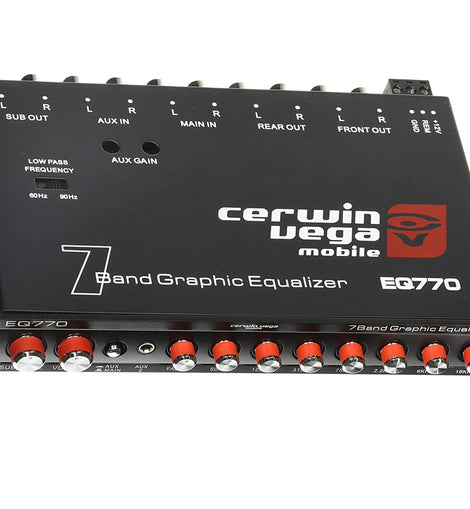

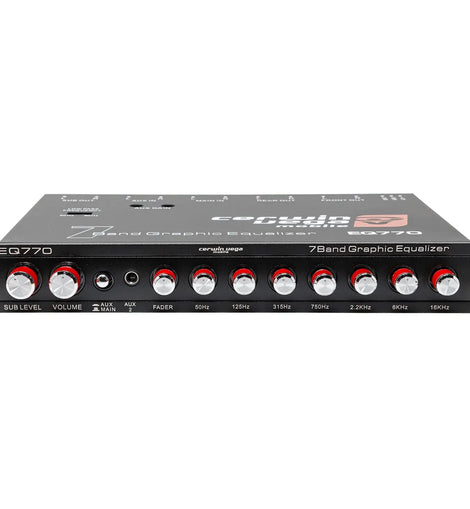

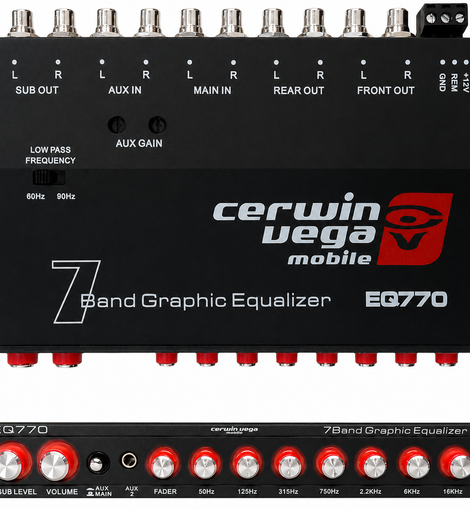

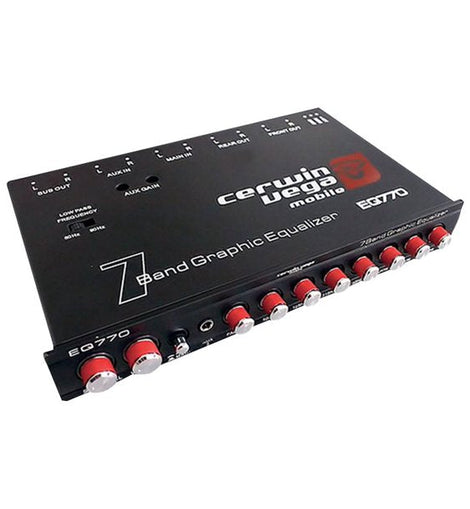

Cerwin Vega EQ770 7-Band Graphic Equalizer with AUX Input

Upgrade and fine-tune your car audio system with the Cerwin Vega EQ770 7-Band Graphic Equalizer Package. Whether you're improving an older stereo system or adding more control to a new aftermarket setup, the EQ770 provides precise adjustment of your music with 7 bands of equalization, master volume, subwoofer level, and built-in fader controls.

With RCA and high-level speaker inputs, the EQ770 can integrate with a wide range of car audio systems. Dual auxiliary input options—including rear RCA AUX inputs and a convenient front 1/8" (3.5mm) AUX input—make it easy to connect additional audio sources.

Key Features

🎚️ 7-BAND GRAPHIC EQUALIZER - Fine-tune your car audio system across seven frequency bands to better match your music, speakers, and listening preferences.

🔊 DEDICATED SUBWOOFER CONTROL - Independent subwoofer level and frequency controls provide convenient adjustment of your system's low-frequency output.

🎵 MASTER VOLUME CONTROL - Easily control overall system output directly from the EQ770.

↔️ BUILT-IN FADER CONTROL - Adjust the balance between front and rear audio channels for better control over your vehicle's soundstage.

🔌 DUAL AUXILIARY INPUT OPTIONS - Features rear RCA auxiliary inputs plus a convenient front-panel 1/8" (3.5mm) AUX input for connecting compatible external audio sources.

🚘 RCA & HIGH-LEVEL INPUT COMPATIBILITY - RCA and speaker-level input options provide flexible integration with compatible factory and aftermarket audio systems.

⚡ 3 SETS OF PREAMP OUTPUTS - Dedicated front, rear, and subwoofer RCA outputs provide convenient connectivity to compatible external amplifiers.

🎛️ SELECTABLE SUBWOOFER FREQUENCY CONTROL - Selectable low-pass filtering provides additional control over the frequencies sent to your subwoofer system.

🔴 RED ILLUMINATION - Illuminated controls provide a clean appearance and improved visibility during nighttime operation.

🔗 NICKEL-PLATED CONNECTIONS - Features nickel-plated RCA inputs and screw terminals for durable system connections.

Cerwin Vega EQ770 General Features

• 7-Band Graphic Equalizer

• Auxiliary Audio Input

• Front 1/8" (3.5mm) AUX Input

• Rear RCA AUX Inputs

• Variable AUX Input Gain

• Master Volume Control

• Independent Subwoofer Level Control

• Subwoofer Frequency Control

• Built-In Front / Rear Fader Control

• RCA-Level Inputs

• High-Level Speaker Inputs

• 3 Sets of Preamp Outputs

• Front RCA Preamp Output

• Rear RCA Preamp Output

• Subwoofer RCA Preamp Output

• Selectable 60 Hz / 90 Hz Low-Pass Filter

• Nickel-Plated RCA Connections

• Nickel-Plated Screw Terminals

• Red Illumination

• Designed for Automotive Audio Systems

• Authorized Internet Dealer

• 1-Year Manufacturer Warranty

Cerwin Vega EQ770 Specifications

• Brand: Cerwin Vega

• Model: EQ770

• Product Type: Car Audio Graphic Equalizer

• Number of EQ Bands: 7

• Frequency Response: 10 Hz-50,000 Hz

• Signal-to-Noise Ratio: 90 dB

• Channel Separation: 70 dB

• Preamp Outputs: Front / Rear / Subwoofer

• Maximum Preamp Output: Up to 7V

• Auxiliary Inputs: Front 3.5mm + Rear RCA

• Low-Pass Filter: Selectable 60 Hz / 90 Hz

• Illumination: Red

• Application: Automotive / Car Audio

• Warranty: 1-Year Manufacturer Warranty

Package Includes

• (1) Cerwin Vega EQ770 7-Band Graphic Equalizer

Important Installation Note

The EQ770 is a signal-processing component and does not replace a power amplifier. System compatibility and performance depend on the source unit, amplifier configuration, speakers, subwoofers, wiring, and proper system tuning.
