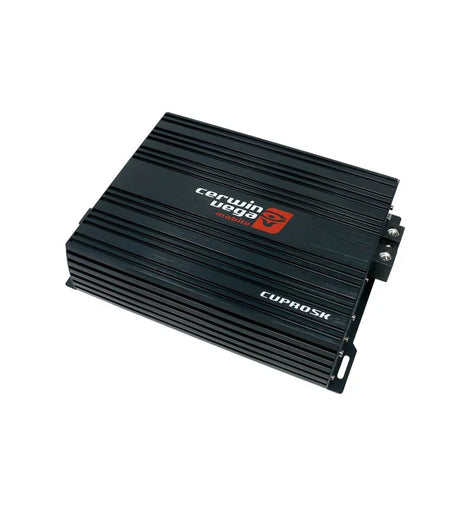

Cerwin Vega CVPRO5K CVPRO Series 1-Channel Class-D Monoblock Amplifier 5000W

When only the most intense bass will do, the Cerwin-Vega CV PRO Series Amplifiers deliver the earth-shaking, chest-thumping performance that power-hungry subwoofers demand. Engineered for those who crave unparalleled sound pressure levels, these amplifiers push boundaries with super high-power, high-current performance that dominates the competition.

Power That Packs a Punch

• Monstrous Output: Delivering a jaw-dropping 3000W to 5000W of raw power, these amplifiers fuel your system to produce bass so intense, it feels like a seismic event.
• Designed for Mayhem: Built for subwoofers that demand extreme power to achieve maximum excursion and SPL impact.
• Ultimate Control: Advanced engineering ensures precision and clarity, even at maximum output.

Engineered for the Ultimate SPL Experience

• High-Current Technology: Designed to handle the most demanding loads, delivering consistent performance for bass that never backs down.
• Built to Last: Rugged construction and superior thermal management keep the CV PRO amplifiers cool under pressure, no matter how hard you push them.
• Extreme Flex Potential: Watch your subwoofers flex and shiver like never before, delivering a visceral audio experience that moves you.

Unleash the Beast

Whether you're competing in an SPL event or just want to feel your music at its most powerful, the CV PRO Series Amplifiers are your ultimate weapon. When it's time to make the ground pound, these amplifiers don't just keep up—they lead the charge.

CV PRO - The Power Behind the Performance

When you demand nothing less than the loudest, most intense audio experience, the Cerwin-Vega CV PRO Series is the answer. Feed your power-hungry system and take your bass to the next level—because nothing else comes close.

Specifications:

POWER RATING

FREQUENCY RESPONSE (HZ): 15HZ-250HZ
RMS POWER PER CHANNEL 4Ω 1900W X 1
RMS POWER PER CHANNEL 2Ω 3300W X 1
RMS POWER PER CHANNEL RMS 1Ω 5000W

POWER SUPPLY

• Power Supply: Full PWM
• Power Supply Threshold: 10.0V-17.0V
• Idle Current: 2.6A

DISTORTION

• THD 4 (1KHz @4Ω): 0.1%
• S/N Ratio (A weighted @1W): -90dBA
• S/N Ratio (A weighted @FP): -105dBA

INPUT SENSITIVITY

• Low Input Level: 0.2V-5.0V
• High Input Level: 0.2V-5.0V

INPUT IMPEDANCE

• Low Input Level: 20KΩ
• High Input Level:

OUTPUT STAGE

• Output Impedance: 0.018Ω
• Damping Factor: >150
• Bandwidth (-3dB): 15Hz-20KHz

CROSSOVER (-12dB/Oct)

• Variable High-Pass: 50Hz-20KHz
• Variable Low-Pass: 15Hz-1KHz
• Variable Sub-Sonic: 15Hz-1KHz

FUSE RATINGS (RECOMMENDED 1/2 THE FULL CURRENT DRAW FOR FUSING)

• ATC: 200A

DIMENSIONS

• L x W x H: 10.4"x 8.8"x 2.6" (265mm x 225mm x 66.5mm)

General Features:

• Caution High Current Draw Amplifier
• Recommended 0/1 Gauge OFC Power/Ground Wire
• LED Power/Protect Status Light
• LED Clipping Indicator Light
• Selectable Bass Frequency: 35Hz-70Hz
• Variable Bass Boost: 0dB-12 dB
• Wired Remote Bass Level Control Included
• 1-year Manufacturer's Warranty

Warning:
This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
