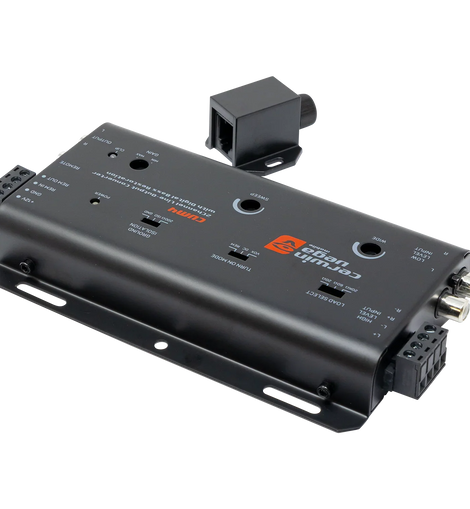

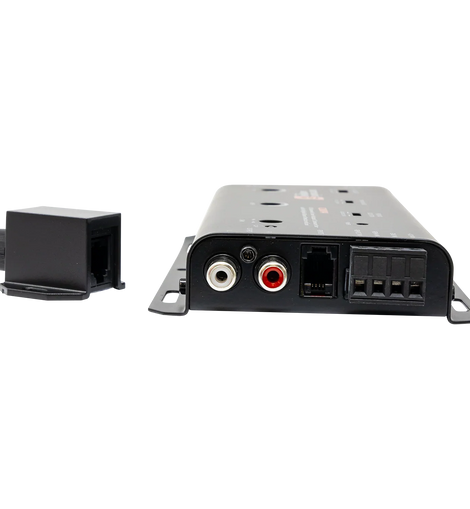

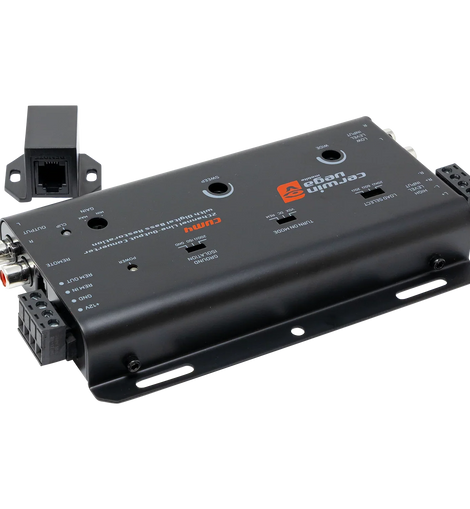

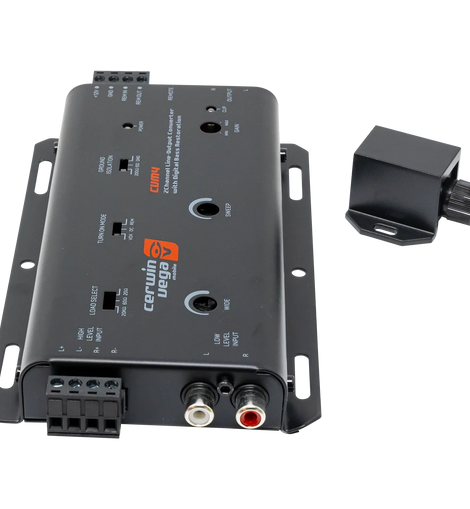

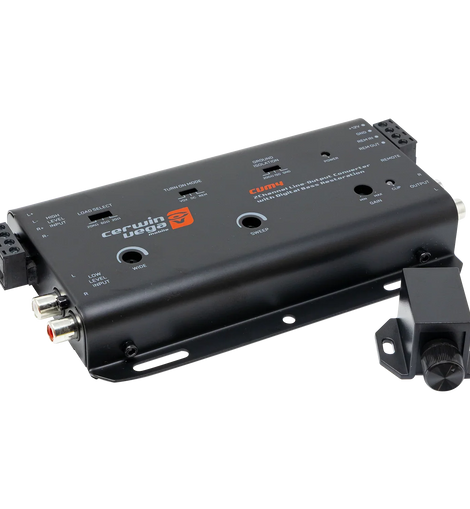

Cerwin Vega CVM4 2-Channel Line Output Converter and Bass Enhancement Processor
Cerwin Vega CVM4 2-Channel Line Output Converter and Bass Enhancement Processor
Cerwin Vega's CVM4 is an Advanced, High Power (40v), Digital Line Output Converter with an integrated Digital Bass Enhancer circuit, selectable load resistors for OEM integration, auto turn-on (DC or VOC sensing), noise-preventing selectable ground isolation and High Voltage Line Driver (9.5v) all in one compact, easy to install chassis.
Specifications:
- Operating Voltage: 9V-16V
- Low Level Input: 150mV-2V
- High Level Input: 2.5V-30V (20KΩ For 30V)
- Output Voltage: Max 9.5V @ 13.8V
- Input Impedance: 20Ω/60Ω/20kΩ
- Signal To Noise: >150dBA
- THD+N: <0.005%
- Frequency Response:10Hz-25KHz
- Max Current Draw: 170mA
- Outout Impedance: <120Ω
- Gain Control: -28dB-1dB
- Turn-On Trigger (DC): 3V-7V
- Wide Frequency: Max: 45Hz-180Hz/Min: 48Hz-130Hz
- Sweep Frequency: 70Hz-150Hz
- Terminal Guage: 16AWG (Quick Connect)
- Remote Level Control Knob (Optional): 0dB-12Db
- Turn On Mode: REM/DC/GND
- Ground Isolation: 200Ω/ISO/GND
- Dimensions (LxWxH): 7.0"x3.23"x0.96" (177mm x 82mm x 24.5mm)
