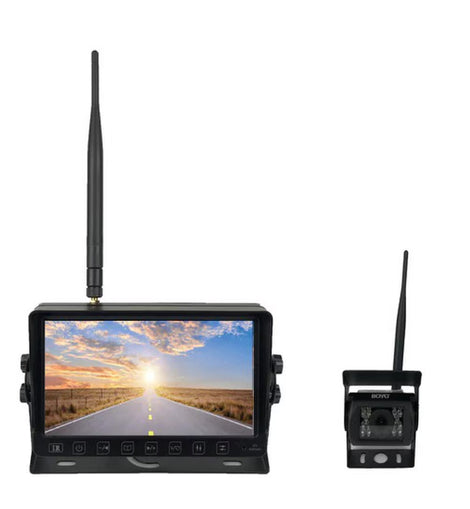

Boyo VTC703AHD Wireless Vehicle AHD Backup Camera System with 7" Monitor and Backup Camera for Car, Truck, SUV and Van

Boyo VTC703AHD Wireless AHD Backup Camera System provides a complete high-definition rear-view solution with a 7-inch IPS HD monitor and one Full HD wireless backup camera. Designed for cars, trucks, SUVs, vans, RVs, and commercial vehicles, this system features 2.4GHz digital wireless transmission, a built-in 4-channel DVR, infrared night vision, built-in microphone, and an IP68 waterproof camera for reliable performance in all driving conditions.

Key Features

• Complete Wireless Backup System - Includes one 7-inch HD monitor and one Full HD wireless backup camera.

• Built-in 4-Channel DVR - Supports audio and video recording with the ability to expand up to four cameras.

• Long-Range Wireless Transmission - 2.4GHz digital wireless signal offers reliable connectivity up to approximately 300 feet.

• Full HD Night Vision Camera - Features 1080p resolution, infrared night vision, built-in microphone, and IP68 waterproof protection.

• Expandable Display System - Supports single, dual, or quad-screen viewing with selectable parking lines and reverse image.

General Features

• 7-inch IPS TFT LCD monitor

• 1024 × 600 HD resolution

• 16:9 widescreen display

• One wireless Full HD backup camera included

• Built-in 4-channel DVR

• 2.4GHz digital wireless transmission

• Wireless range up to 300 feet

• Built-in monitor speaker

• Selectable parking guidelines

• Selectable reverse/normal image

• Supports single, dual, or quad-screen display

• Built-in camera microphone

• Infrared night vision

• Auto white balance

• IP68 waterproof camera

• NTSC/PAL compatible

• 9VDC-36VDC operating voltage

• Quick and easy installation

Specifications

• Brand: Boyo

• Model: VTC703AHD

• Product Type: Wireless AHD Backup Camera System

• Monitor Size: 7 Inches

• Monitor Display: IPS TFT LCD

• Monitor Resolution: 1024 × 600

• Display Format: 16:9

• Camera Sensor: 1/4" Full HD CMOS

• Camera Resolution: 1920 × 1080

• Viewing Angle: 110° (H), 85° (V), 140° (D)

• Wireless Frequency: 2.4GHz Digital

• Wireless Range: Up to 300 ft.

• Night Vision: IR LEDs (Approx. 12 ft.)

• Audio: Built-in Camera Microphone & Monitor Speaker

• Recording: Built-in 4-Channel DVR

• Waterproof Rating: IP68

• Video Format: NTSC/PAL Compatible

• Operating Voltage: 9VDC-36VDC

• Application: Cars, Trucks, SUVs, Vans, and Commercial Vehicles

• Item Condition: New

Box Contents

• One (1) 7-inch HD wireless monitor

• One (1) Full HD wireless backup camera

• One (1) U-shaped monitor mounting bracket

• Power cable with cigarette lighter plug

• Quick-connect installation accessories

• User documentation
