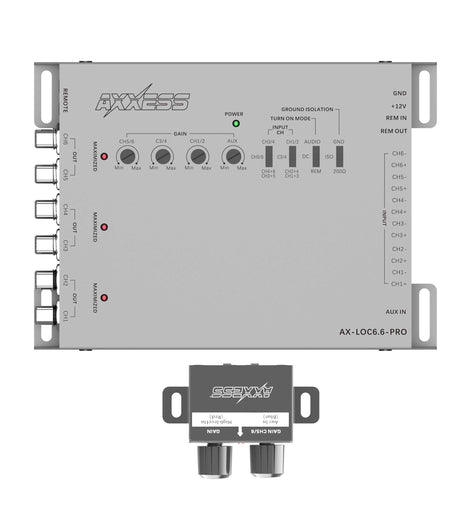

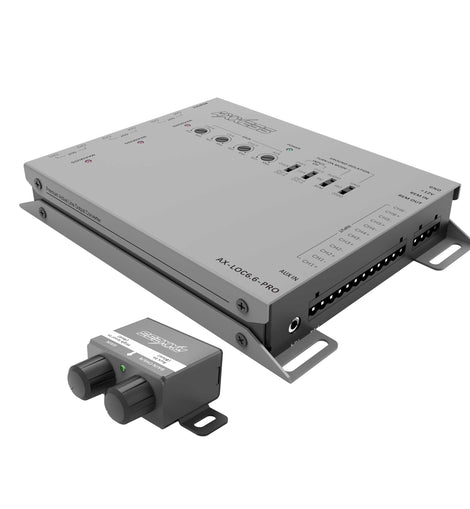

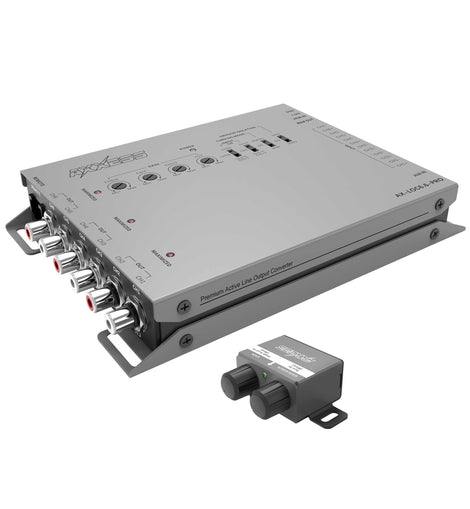

Axxess AX-LOC6.6-PRO 6-Channel LOC With Summing Processor
Axxess AX-LOC6.6-PRO 6-Channel LOC With Summing Processor
This 6-channel Active Summing LOC from Axxess enables installers to add aftermarket amplifiers to OEM source units for enhanced sound quality. This LOC provides seamless integration by summing OEM audio signals, delivering a full-range output that captures every detail and nuance of your favorite audio tracks. Various frequency input signals are taken from an OEM amplifier or OEM source unit and output as a full-range summed signal, which is required for aftermarket equipment. The result is enhanced clarity, depth, and balance, allowing music to be enjoyed like never before. A compact remote controller is included, featuring a knob for adjusting the primary volume of each of the six channels, as well as a second knob for controlling the bass level of channels 5 and 6. Designed for professional installers, our OEM integration and signal processor models are the best solution for unlimited sound system upgrades while retaining the factory radio.
General Features:
- 6-channel: 6 in, 6 out
- 6-channel summing processor

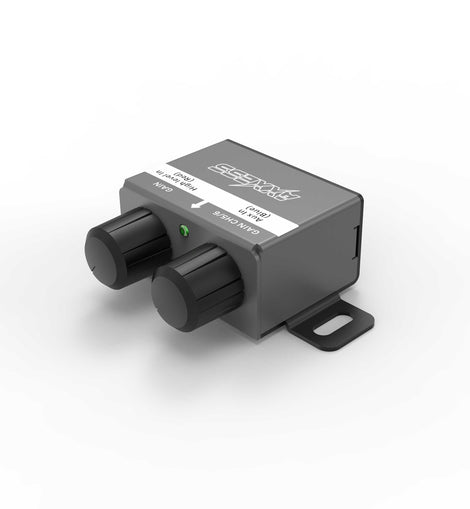

- Includes multi-function remote control with a knob for adjusting the primary volume of channels 1-6 and another knob to control the bass level for channels 5 and 6
- Master volume, AUX volume
- Independent channel 5 or 6 level control
- AUX 3.5mm input
- Differential balanced inputs
- Low impedance outputs
- Variable gain adjustments
- 2,4, or 6-channel input select
- Generated +12 volts remote output
- External load resistors are required for some applications.
- Panel-mount RCA jacks
- Max input level: 20V / 40V selectable
- Operating voltage: 10.5V-18V
- Trigger selection: REM / DC / AUDIO
- Remote Output Rating 500mA
- Turn on trigger (DC): >1.3V
- Output max @13.8V: 9.5V RMS
- External Resistors are required
- Ground selection: GND / ISO / 200 Ohm
- Gain adjustment: - 28dB to +1dB
- Input sensitivity: 0.5V-20V
- Signal to noise: >114dB @ 10V output
- THD +N (Total Harmonic Distortion): <0.05% @ 10V
- Frequency response: 5Hz - 100KHz
- Clip indicator
- Bass boost: 0dB + 12dB (5/6)
