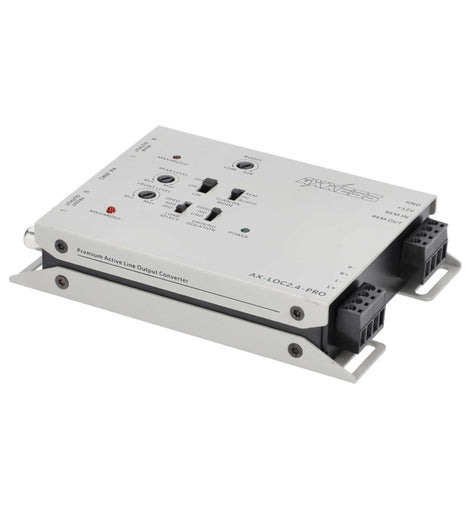

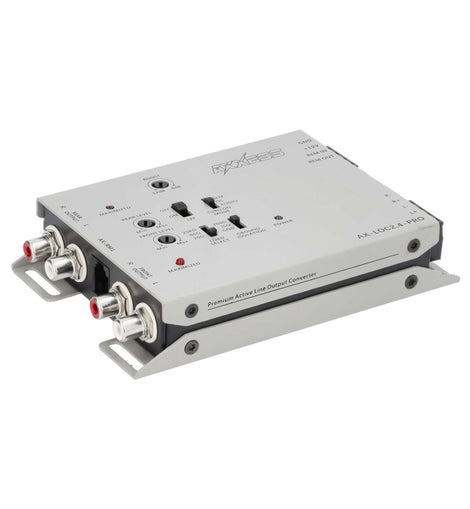

Axxess AX-LOC2.4-PRO 4CH Active Line Output Converter with Bass Boost
Axxess AX-LOC2.4-PRO 4CH Active Line Output Converter with Bass Boost
This 4-channel Active LOC with Bass Boost from Axxess has universal applications, enabling installers to add aftermarket amplifiers to OEM source units for enhanced sound quality. This advanced technology features incredible input power capabilities, a load selector, a clip indicator, enhanced output controls, and noise isolation countermeasures. Add the Axxess AX-RM1 external Bass knob for additional subwoofer adjustments. This supplemental product will directly plug into the Axxess PRO series LOCs and line driver.
General Features:
- 4-channel: 2 in, 4 out
- Max input level: 40V / 400W @20K Ohm
- Operating voltage: 9V-16V
- Optional PR-RM-1
- Trigger selection: REM / DC / AUDIO
- Remote Output Rating 500mA
- Turn on trigger (DC): 3V-7V
- Output max @13.8V: 9.5V RMS
- Input impedance selection: 20 / 60 / 20k Ohm
- Ground selection: GND / ISO / 200 Ohm
- Independent Front/Rear Gain adjustment: - 28dB to +1dB
- Input sensitivity: 0.5V-20V
- Signal to noise: >110dB @6.4V output
- THD +N (Total Harmonic Distortion): <0.01%
- Frequency response: 20Hz - 20kHz
- Low pass filter: <250Hz (rear channels)
- Bass boost: 0dB + 12dB (rear channels)
- Remote control: optional AX-RM1
