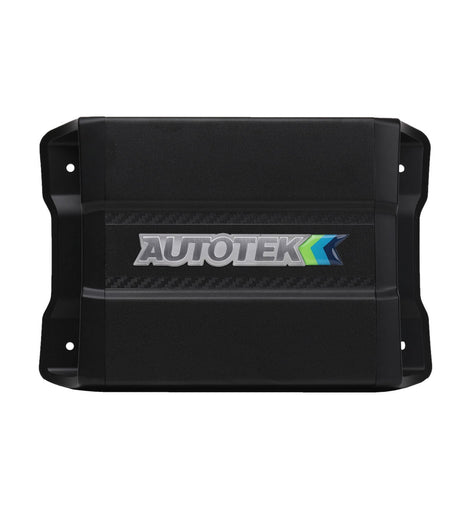

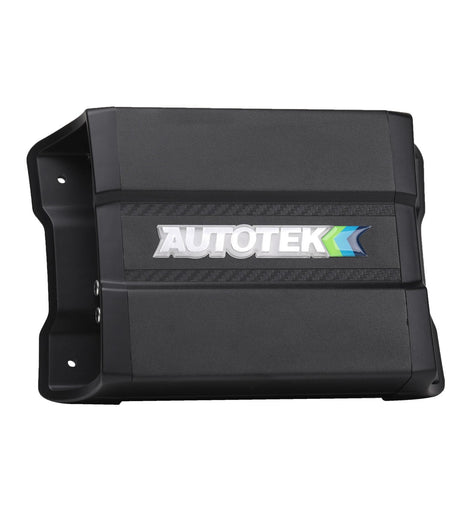

Autotek MM-1525.4D Compact Mean Machine 1500 Watt Amplifier

Autotek MEAN MACHINE compact series of car audio amplifiers bring extreme power with PRO-FI™ High Speed MOSFETS and high sound quality with minimum distortion levels. The MM-1525.4D features 1500 watts of power in a bridgeable 4 channel Class D amplifier. The Class D technology provides extreme power in a smaller footprint. The amplifier can be run from the "output" RCA connections which minimize the need for additional cables running the length of the vehicle.

General Features:

• Low Noise Preamplifier Circuit
  Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process.

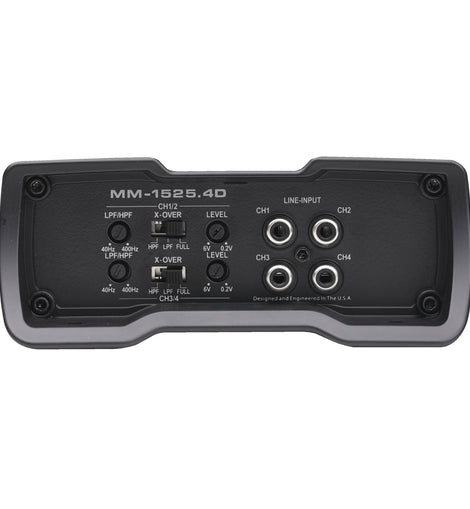

• RCA Inputs
  RCA inputs and outputs provide the highest sound quality connection.
• Operation Mode
  Four Channel, Full Range, Bridgeable: Flexible installation allows this amplifier to run in four channel or bridged mono mode.
• Crossover Type
  Onboard electronic crossover
• Electronic Equalizer
  Electronic equalizer provides control of amplifier output with onboard electronic crossover to tailor specific frequencies to speakers and subwoofers.
• Class / Topology
  Very efficient D-Class to drive additional power while remaining a small footprint.
• Output Device Technology
  MEAN MACHINE'S ROAD WORTHY™ TCID (Twin Coil Isolation Design) and PRO-FI™ High Speed MOSFETS bring extreme power with high sound quality and minimum distortion levels.
• Heat Sink
  Heavy-duty aluminum alloy heatsink with illuminated logo adds a vibrant display and showcase for every car audio installation.
• Power Supply
  High energy PWM (Pulse Width Modulated) power supply provides MAXXimum power with minimal electrical impact.

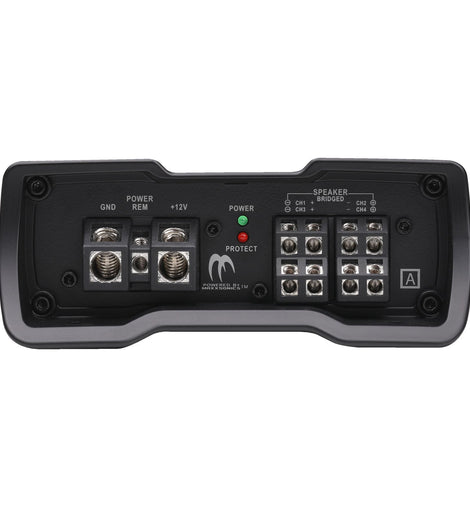

• Output Connections
  Nickel-plated brass connectionwith hex set screw terminals allow for secure connection and resist erosion.
• Connection Type
  Angled, Allen Key connectors provide easy access for hand tools allowing a quick and secure connection.
• Full-Range RCA Outputs for Signal Pass Through
  Full-range signal pass through output allows additional amplifiers to be run from the "output" RCA connections which minimize the need for additional cables running the length of the vehicle. This can dramatically minimize noise.
• LED System Protection Circuitry Diagnostics
  Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.

Specifications:

• Type
  Amplifier
• Brand
  Autotek
• Series
  Compact MEAN MACHINE
• Category
  Mobile
• Condition
  New
• Color
  Black
• Warranty
  1 Year
• Compatible Vehicles
  Universal
• Amp Class
  Class D
• Amp Total Channels
  4
• Amp Max Power (watts)
  1500
• Amp Power @ 2 Ohms (ch x watts)
  4 x 375
• Amp Power @ 4 Ohms (ch x watts)
  4 x 200
• Amp Mono Bridged @ 4 Ohms (ch x watts)
  2 x 750
• Amp Crossover
  Variable Electronic 12dB Per Octave
• Amp Variable Low Pass Crossover 12dB per Octave
  40Hz-400Hz
• Amp Tone Control / Parametric EQ
  Built-in Bass Control
• Amp Variable Voltage
  0.2-6V
• Amp Frequency Response
  10Hz-22kHz
• Amp Total Harmonic Distortion (THD)
  < 0.05%
• Amp Speaker Level Audio Inputs
  RCA
• Pre-amp Audio Outputs
  RCA
• Amp Power Terminal 12v/GND
  4 AWG
• Amp Speaker Terminal Wire Gauge
  12 AWG
• Amp Fusing
  External 40A
