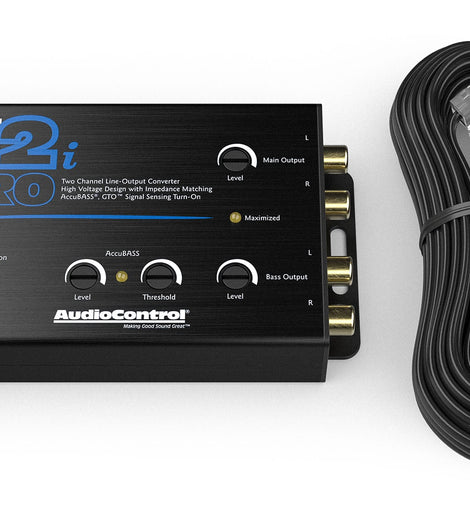

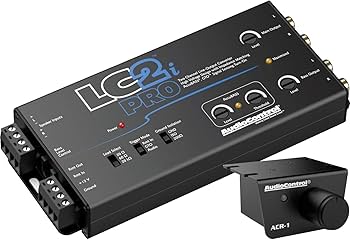

AudioControl LC2i PRO 2-Channel Line Output Converter with AccuBASS™, ACR-1 Remote Bass Control & 9.5V RCA Outputs

Upgrade your factory audio system without replacing the original radio using the AudioControl LC2i PRO 2-Channel Line Output Converter. Designed for today's factory-installed amplified sound systems, the LC2i PRO converts high-level speaker outputs into clean, high-voltage RCA preamp signals, making it easy to add aftermarket amplifiers, DSP processors, or powered subwoofers while preserving your factory head unit.

Featuring AudioControl's exclusive AccuBASS™ technology, the LC2i PRO restores low-frequency bass that many factory radios reduce at higher listening volumes. It also includes the ACR-1 wired remote bass-level control, allowing you to adjust the subwoofer output from the driver's seat for the perfect bass level at any time.

With multiple turn-on options, selectable load settings, and up to 9.5 volts of RCA output, the LC2i PRO is one of the most versatile and installer-friendly line output converters available.

Features

• Premium 2-channel active line output converter

• Converts factory speaker-level signals to high-quality RCA outputs

• Exclusive AccuBASS™ restores factory bass roll-off

• Includes ACR-1 wired remote bass level controller

• Main and dedicated Bass RCA outputs

• High-voltage RCA outputs up to 9.5 Volts

• Handles up to 40V (400 Watts RMS) speaker-level input

• Independent Main and Bass output level controls

• Selectable OEM load settings for maximum compatibility

• Multiple turn-on modes:

  • GTO™ Signal Sense (DC Offset)

  • Audio Sense

  • Remote 12V Trigger

• 12V remote amplifier turn-on output

• Compact chassis for easy installation

• Perfect for factory radio integration

Specifications

• Model: LC2i PRO

• Product Type: Active 2-Channel Line Output Converter

• Channels: 2

• Speaker-Level Inputs: 2

• Maximum Input Voltage: 40V

• Maximum Input Power: 400 Watts RMS

• RCA Outputs:

  • Main Output

  • Bass Output

• Maximum Output Voltage: 9.5V

• Bass Restoration: AccuBASS™

• Output Level Controls:

  • Main

  • Bass

• Turn-On Modes:

  • GTO™ Signal Sense (DC Offset)

  • Audio Sense

  • Remote 12V

• Remote Output: 12V Turn-On Lead

• Recommended Fuse: 1 Amp

• Warranty: 5 Years

Dimensions

• Width: 6-15/16"

• Height: 1"

• Depth: 3"

• Weight: 0.75 lb

Applications

• Factory radio amplifier integration

• Add aftermarket subwoofer amplifiers

• Connect aftermarket DSP processors

• OEM audio upgrades

• Factory amplified sound systems

• Cars, trucks, SUVs, and recreational vehicles

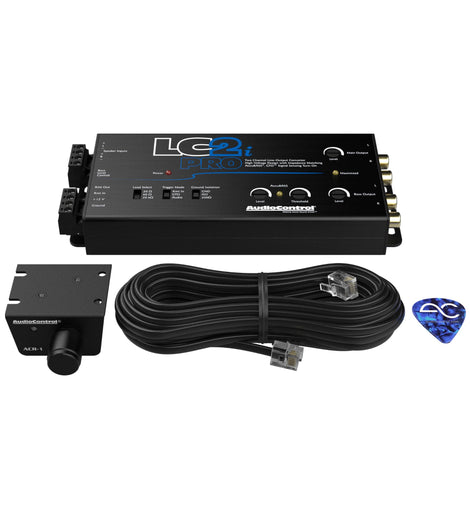

Package Includes

• 1 × AudioControl LC2i PRO 2-Channel Line Output Converter

• 2 × 4-Pin Captive-Screw Connectors (Pre-Installed)

• 1 × ACR-1 Remote Bass Level Controller

• 1 × 16.5 ft RJ-14 Remote Control Cable

• Quick Start Guide
