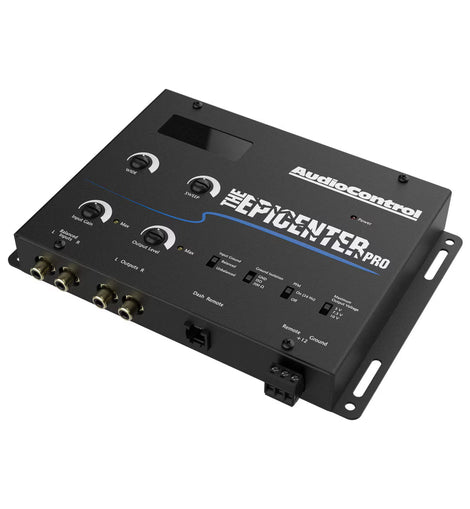

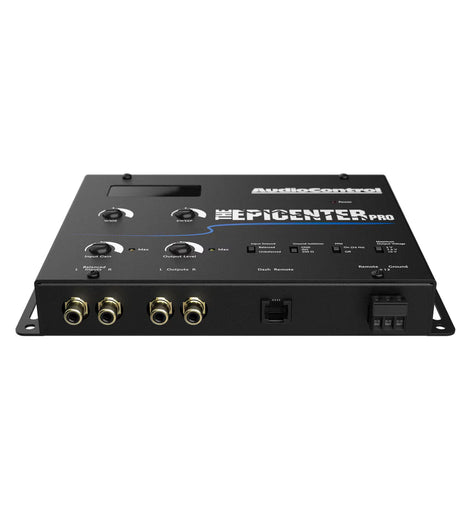

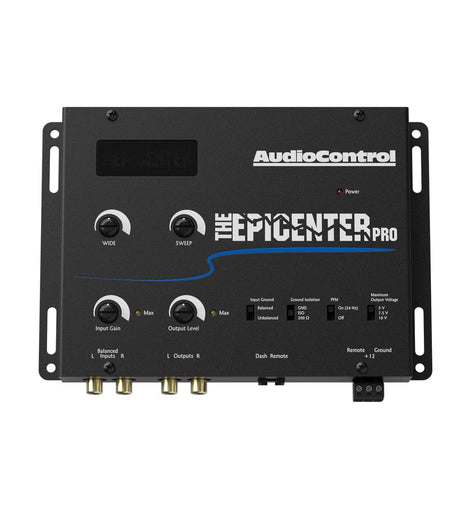

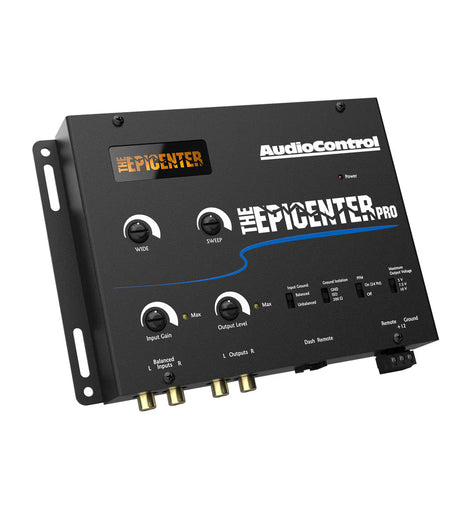

AudioControl Epicenter Pro Bass Restoration Processor with Line Driver

THE ORIGINAL DIGITAL BASS RESTORATION PROCESSOR

Building on the legendary bass processing of The EPICENTER, The EPICENTER PRO delivers enhanced control for serious bass enthusiasts. Balanced inputs with a built-in line driver, a switchable PFM subsonic filter, and selectable output voltage offer unmatched system flexibility. The included ACR-4 remote provides easy adjustment of the EPICENTER effect and subwoofer level—right from the driver's seat.

How it works

Adjusting ParaBASS controls:

General Features:

• UNMATCHED BASS RESTORATION: Recreates and injects missing bass frequencies back into your music, letting your system hit harder and lower than ever before.
• POWERFUL LINE DRIVER: Provides an ultra-clean, high-voltage signal, eliminating noise and maximizing the performance potential of your aftermarket amplifiers.
• SELECTABLE OUTPUT VOLTAGE: Precisely match the signal output to your amplifier's input stage to achieve maximum clean power and optimal gain structure.
• PARAMETRIC BASS SHAPING: Gain surgical control over your bass by adjusting the center frequency, width, and level of the bass boost, perfectly tailoring the low-end to your vehicle's acoustics.
• SELECTABLE SUBSONIC FILTER: Protect your subwoofers from damaging, inaudible ultra-low frequencies while focusing amplifier power on the bass you can actually hear and feel.
• DYNAMIC LIGHTED DISPLAY: A responsive, eye-catching visual indicator that shows exactly how much bass restoration is happening in real-time.

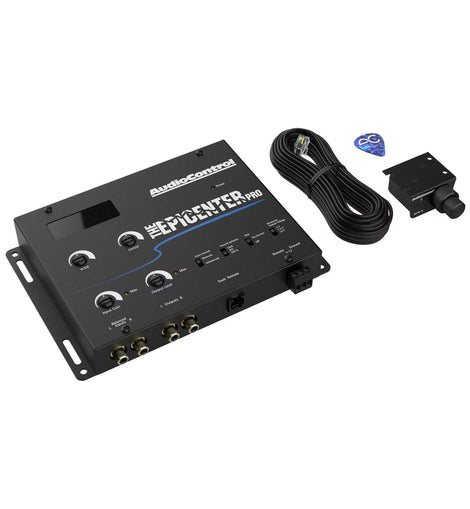

• ACR-4 DASH REMOTE INCLUDED: Gives you instant, fingertip control over the bass level from your dashboard, allowing you to dial the thump up or down safely while driving.


SPECIFICATIONS:

Inputs

• Maximum Input level (line-level RCA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Vrms
• Input Impedance Line Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 kΩ

Outputs

• Maximum Output Level (THD <1%). . . . . . . . . . . . . . . . . . . . . . . 9 Vrms, 13 V Peak
• Output Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 Ω

Performance

• THD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.03%
• Frequency Response. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Hz to 22 kHz, +/- 1 dB
• Signal to Noise Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >105 dB
• PFM Filter (High Pass). . . . . . . . . . . . . . . . . . . . . . . . . . . Selectable 24 Hz, or Bypass

General

• Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . High Headroom PWM Switching
• Current Draw. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300 mA
• Recommended Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 A
• Dimensions (without power/speaker connectors). . . . . . 8" W x 5.5" D x 1.2" H
• Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.68 lbs.
• CASE HEIGHT (INCH): 9.055
• CASE LENGTH (INCH): 19.488
• GROSS WEIGHT (LB): 23.05
