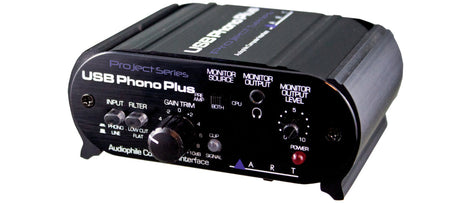

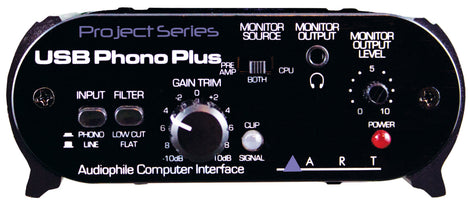

ART USBPHONOPLUSPS Phono Preamp and Audio Interface
ART USBPHONOPLUSPS Phono Preamp and Audio Interface
The USB Phono Plus is a complete hardware solution for making digital recordings from your records.
ART has decades of experience in designing phono preamps, and the USB Phono Pre offers the great sound, low noise, and essential features that have established the DJ Pre II as one of our most popular products.
It adds extended digital connectivity and an integrated USB audio interface. In addition to stereo RCA inputs and outputs, it features S/PDIF and optical inputs, plus an optical output. Connect the USB port to your computer and record better than CD-quality sound to any digital audio workstation software. The headphone output lets you monitor the preamp input, the computer playback, or both together, and has an independent level control so you can adjust your listening volume without affecting the recording.
ART knows recording and knows vinyl, and that combined expertise has produced a compact and convenient interface thats purpose-built for preserving your record collection.
General Features:
- Class Compliant USB Audio Interface
- Zero Latency Hardware Monitoring
- Switchable Phono or Line Level Stereo RCA Input
- S/PDIF and Optical Inputs

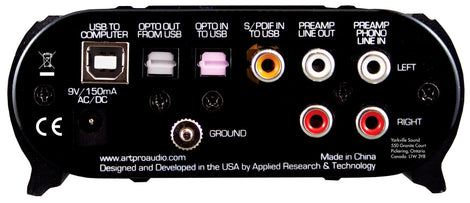

- Stereo RCA, Optical, and 1/8" Headphone Outputs
- Switchable Low Cut Filter
- Powered by USB or External Adaptor
Specifications:
| Inputs |
Stereo RCA (Phono / Line)
S/PDIF, Optical |
| Outputs |
Stereo RCA
Optical |
| Input Impedance |
47 kΩ / 100pf (Phono)
270 kΩ (Line) |
| Maximum Input Level |
40 mV RMS @ 1 kHz (Phono)
+19 dBu (Line) |
| Maximum Output Level | +6 dBu (1.4V RMS) |
| Maximum Gain |
45 dB @ 1 kHz (Phono)
6 dB (line) |
| Frequency Response | 10 Hz - 50 kHz (+/- 0.5%) |
| Total Harmonic Distortion | <0.01% Typical @ 1 kHz |
| Connectivity | USB (Class Compliant) |
| Resolution | 16 Bit, 44.1 kHz or 48 kHz |
| Enclosure | All aluminum black anodized with integral rubber sides |
| Power Requirements |
USB Bus Power or Optional Adaptor
(7V - 12V DC, Any Polarity, or 9V - 12V AC) |
| Dimensions |
1.85" x 4.6" x 4.5"
4.7 cm x 11.7 cm x 11.4 cm |
| Weight | 1.35 lbs / 0.61 kg |
| Note | 0 dBu = 0.775Vrms |
**Specifications subject to change without notice
