ART USBMIX4 4 Channel USB Recording Mixer
ART USBMIX4 4 Channel USB Recording Mixer

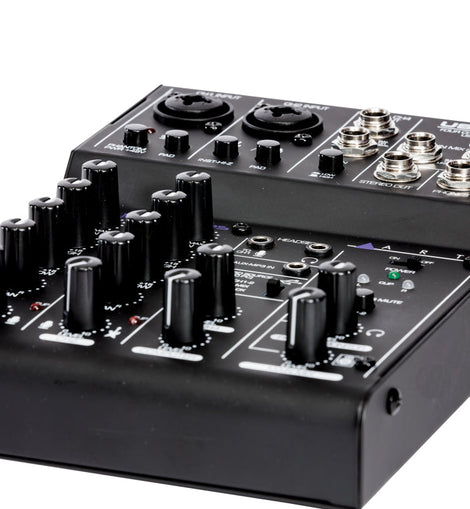

Designed with streamers and content creators in mind, the USB Mix 4 is a compact analog mixer with an integrated digital audio interface.

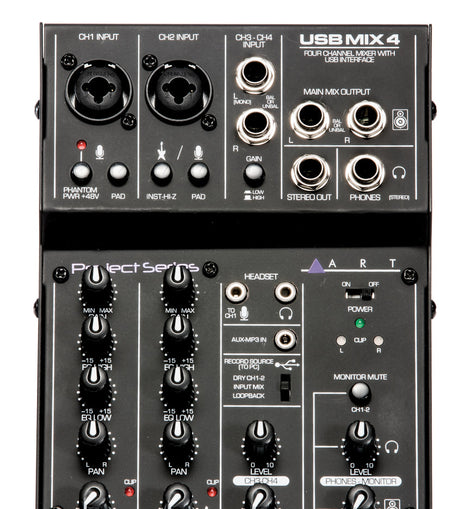

The mixer section has four channels. Channels 1 and 2 have combo inputs for XLR and 1/4 signals, and 2-band EQ for tone shaping. Channel 1 also has switchable phantom power for use with condenser microphones, and Channel 2 has a switchable Hi-Z mode so you can directly connect an instrument level signal from a guitar or bass. Channels 3 and 4 are configured as a stereo pair.
In addition to the standard connections, there are dedicated jacks for a headset mic and media player. A convenient switch on the front panel lets you select the source for the stereo audio interface. Choose from the full stereo mix, only channels 1 and 2, or a loopback mode that combines the mixer inputs with the audio playback from your computer to easily share everything youre hearing with your streaming audience.

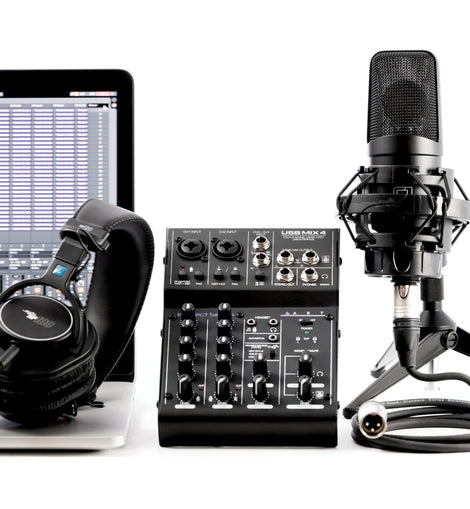

Combining the familiar workflow of a traditional mixer with easy digital integration, the USB Mix 4 is a simple and intuitive foundation for home and mobile recording.
Need more inputs and onboard effects? Check out the USB Mix 6.
General Features:
- High Performance Low Noise Design
- Switchable +48v Phantom Power (CH1)
- Assignable USB Record Source
- Independent Level Controls for Main and Headphone/Monitor Outputs
- 1/8th-inch Headset Connectors (Mono Mic In and Stereo Headset Out)
- Integrated Class Compliant Plug-and-Play USB Audio for Mac & PC

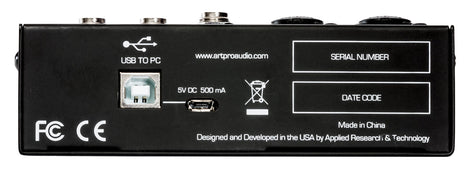

- Operates on USB Power or 5VDC External Power Supply (Included)
Specifications:
| Inputs |
XLR & 1/4" Balanced Combo Jack (CH 1 & CH2)
1/4" TRS Balanced (CH3 & CH4) 1/8" TRS Aux/MP3, 1/8" Headset Mic |
| Outputs |
1/4" TRS Balanced Main Mix Outputs
1/4" TRS Stereo Output & Monitor Outputs |
| Headphones | 1/8" Headset Output |
| Maximum Input Level | +8 dBu (Mic), +16 dBu (1/4" Input) |
| Maximum Output Level | +15 dBu Main Mix Outputs |
| Maximum Gain | >55 dB (Mic), >37 dB (Instrument), 5 dB (CH3 & CH4) |
| Total Harmonic Distortion | <0.02% @ 1 kHz |
| Signal to Noise Ratio | >90 dB Typical (Ref 0dBu) |
| Phantom Power | Switch selectable, +48 V DC, filtered, current limited |
| Connectivity | USB Class Compliant plug-and-play Mac / PC Interface |
| Resolution |
16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer
0.4 ms A/D latency @ 44.1 kHz |
| Power Requirements | Via USB or 5VDC @ 500mA |
| Dimensions (HWD) | 1.75″ x 5.1″ x 7.5″ (4.5 cm x 13.0 cm x 19.1 cm) |
| Weight | 1.56 lbs. / .71 kg |
| Note | 0 dBu = 0.775Vrms |
**Specifications subject to change without notice
