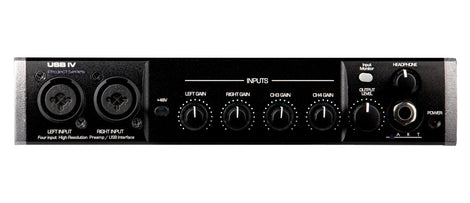

ART USBIV 4-In / 2-Out USB Audio Interface
ART USBIV 4-In / 2-Out USB Audio Interface
With four input channels and class-leading 32-bit, 192 kHz conversion, the USB IV is ARTs most advanced digital audio interface.

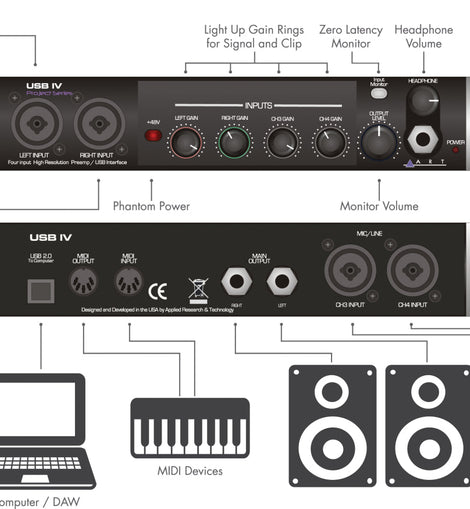

It has two mic / instrument and two mic / line inputs, all with combo jacks that can accept XLR and 1/4" connections. Indicator rings around the input gain controls turn green to indicate optimum signal levels, and red to indicate peaking. The interface also features switchable phantom power, balanced 1/4" outputs, a dedicated headphone jack, and full-sized MIDI in and out connectors.
The USB IV is bus-powered, class compliant, and bundled with Cubase LE recording software from Steinberg. It offers extended connectivity and superior fidelity for home and project studios, and its compact size and rugged enclosure make it a convenient tool for mobile recording.
General Features:
- High Quality 32-bit convertors
- Sample rates from 44.1k to 192kHz
- Low latency ASIO and WDM driver
- Transformer isolated outputs
- Low noise discrete mic preamps
- High Z instrument inputs
- Zero latency monitoring
- Front panel headphone output
- 5-Pin MIDI Connections
- USB cable included
Specifications:
| Inputs |
4x XLR / 1/4" TRS Combo Jacks
(2x Mic / Line, 2x Mic / Instrument) |
| Outputs | 2x 1/4" TRS |
| Headphones | 1x 1/4" |
| Input Impedance |
>7 kΩ (XLR)
>1 MΩ (1/4") |
| Output Impedance |
300Ω (Main)
32Ω (Headphones) |
| Maximum Input Level |
+3.5 dBu (Mic)
+19 dBu (Line) +15 dBu (Instrument) |
| Maximum Output Level |
+8 dBu (Main)
+6.5 dBu (Headphones) |
| Frequency Response | 20 Hz - 20 kHz (+/- 1dB) |
| Total Harmonic Distortion | <0.002% |
| Equivalent Input Noise | -128 dBu (Typical) |
| Signal to Noise Ratio |
115 dB (ADC)
110 dB (DAC) |
| CMRR |
>87 dB (Mic)
60 dB (Line) |
| Channel Separation | >75 dB |
| Phantom Power | +48 V DC (Filtered, Current Limited) |
| Connectivity |
USB 2.0
MIDI 5-Pin DIN (In & Out) |
| Resolution | 32-Bit, 44.1 kHz - 192 kHz |
| Power Requirements | 500 mA (USB 2.0) |
| Dimensions (HWD) | 8.75" x 1.75" x 6.2" (22.2 cm x 4.4 cm x 15.7 cm) |
| Weight | 2.15 lbs / 975 g |
| Note | 0 dBu = 0.775Vrms |
**Specifications subject to change without notice
