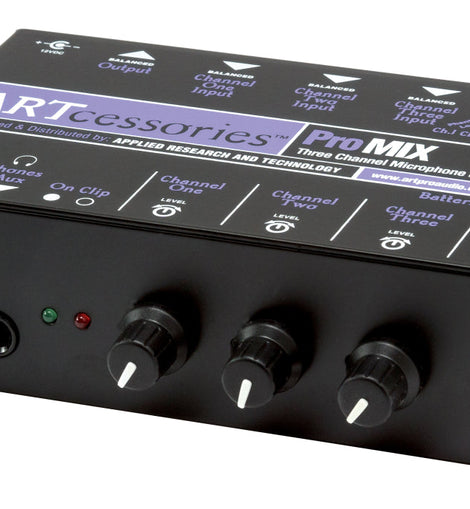

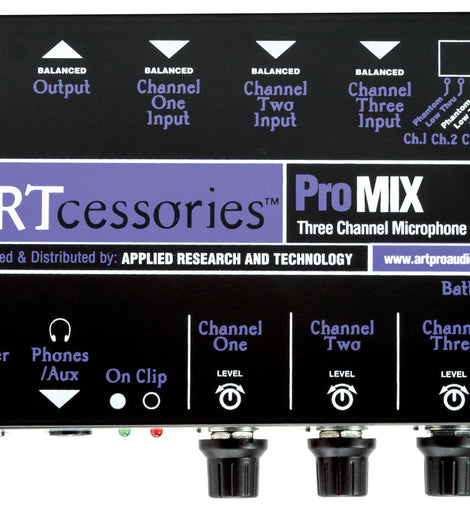

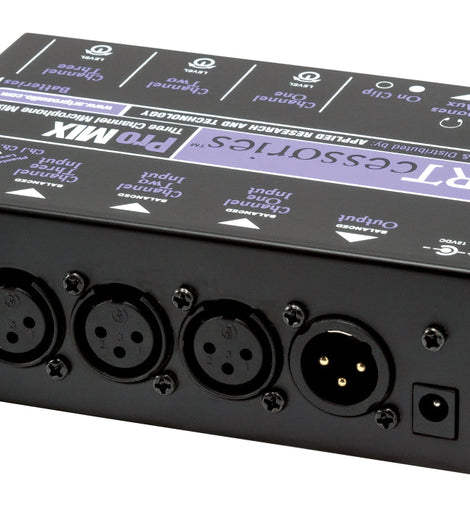

ART PROMIX 3-Channel Battery / AC-Powered Mini Mixer
ART PROMIX 3-Channel Battery / AC-Powered Mini Mixer
The ProMix is a three-channel microphone mixer designed for connecting multiple mics to a larger mixer that only has a single input available.
Each channel has an independent level control and switches to activate phantom power and a high-pass filter. The mixed signal is sent to a 1/4" headphone / auxiliary output and a balanced XLR line output.
For additional flexibility, it can be powered by the included adapter or two 9-volt batteries for mobile applications.
The ProMix is a compact, convenient solution that can be used on its own in smaller setups, or to extend the connectivity of a larger system.
General Features:
- 3x low-impedance XLR mic channels
- 3x level controls
- 3x phantom power on/off DIP switches
- 3x low-frequency cut on/off DIP switches
- A low-impedance balanced XLR line output
- Mono 1/4" Phones/Aux. output
- Clip LED (fires 3 dB below the onset of clipping)
- On/off Power switch,with LED
- Power:12 V DC (Adapter included)
- Output Phantom Power:12V (Using the 12V DC supply)
- Optional 2 x 9V Battery Power (Yields 18V Phantom Power)Low Cut:-3dB @ 100Hz
Specifications:
| Input Impedance | 600 Ω |
| Output Impedance | 600 Ω |
| Maximum Input Level | -14 dB |
| Maximum Output Level | +14 dB |
| Maximum Gain | +60 dB |
| Total Harmonic Distortion | 0.0002 |
| Phantom Power | 12V DC |
| Power Requirements | 12 V DC (adapter) / 2x 9V (batteries) |
| Dimensions (HWD) | 5.63" x 3.75" x 1.75" (14.3 cm x 9.2 cm x 4.5 cm) |
| Weight | 1.5lb / 6.8 kg) |
**Specifications subject to change without notice
