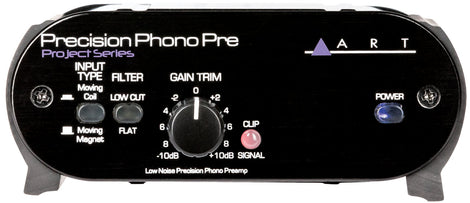

ART PRECISIONPHONOU Phono Preamp
ART PRECISIONPHONOU Phono Preamp
The Precision Phono Pre is a uniquely affordable preamp for music fans who want to enhance the performance of their turntable with a moving coil cartridge.
This type of cartridge offers a detailed and nuanced soundscape, with a wider frequency range and faster transient response than the more common moving magnet design. Its often the preferred choice for audiophiles in pursuit of the ultimate listening experience.
However, moving coil cartridges produce a lower signal level, and require a preamp with enough gain to drive the rest of the system and take full advantage of the cartridges strengths.

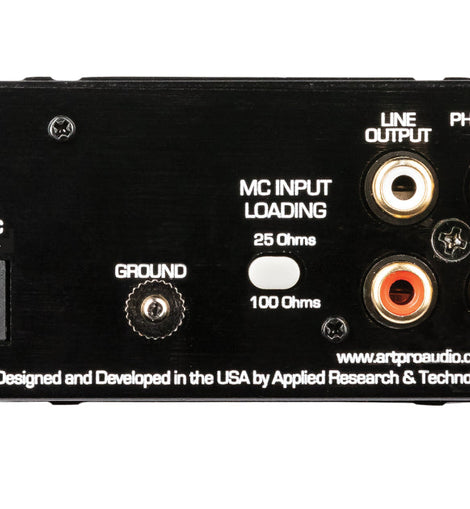

The Precision Phono Pre has switchable modes to support both moving coil and moving magnet cartridges. Input loading for the moving coil input is switchable between 25 and 100 ohms for additional sonic flexibility.
It also offers up to 10 dB of boost or cut for proper gain-staging, a low-cut filter to eliminate unwanted rumble and resonance, and gold-plated outputs for durable, corrosion-free connections.
The Precision Phono Pre has been meticulously designed to grow with your system as it evolves, and to help your vinyl collection sound its best with any cartridge.
General Features:
- Connect any turntable to a wide variety of audio systems
- Perfect for DJs and vinyl enthusiasts
- Switchable low cut rumble filter
- Variable preamp gain
- Signal Present/Clip Indicator
- RCA preamp outputs
- External power supply for lower noise
- High accuracy/ low noise phono preamp
- Moving Coil/Moving Magnet switchable input
Specifications:
| Inputs | Gold plated RCA Jacks 47 k / 100pf (MM) or 25/100 Ω (MC, switchable) |
| Outputs | Gold plated RCA Jacks, 100 Ω |
| Maximum Input Level | 440 mV (1 kHz, MM mode) / 44mV (1kHZ, MC mode) |
| Maximum Output Level | 6V RMS / +18dBu |
| Maximum Gain | 43dB (MM)/63dB (MC) |
| Frequency Response | 20 Hz - 20 kHz, +/-0.5dB |
| Total Harmonic Distortion | <0.0010% {typical} |
| Equivalent Input Noise | 346nV, -127dBu |
| Enclosure | All aluminum black anodized with integral rubber sides |
| Power Requirements |
Input: 100-240V AC~50/60Hz
Output: 12V DC @ ≥ 800 mA |
| Dimensions | 1.87" x 4.61" x 4.27" (4.75 cm x 11.7 cm x 10.8 cm |
| Weight | 1.89 lbs / 0.86 kg |
| Note | 0 dBu = 0.775Vrms |
**Specifications subject to change without notice
