ART PDB Passive Direct Box
ART PDB Passive Direct Box

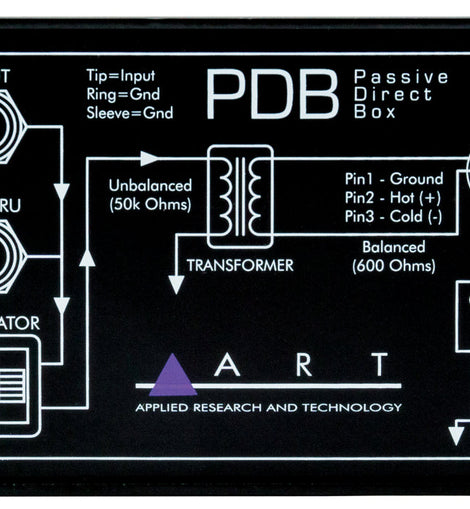

The PDB is a passive direct box for connecting unbalanced instrument, line, or speaker signals to balanced inputs.
The input signal is sent to a transformer-isolated XLR output and a parallel Thru jack, so it can simultaneously be connected to an amplifier on stage.
A switchable ground lift helps to eliminate hum, and switchable attenuation offers up to 40 dB of gain reduction.
As a fully passive design, the PDB doesn't require an external power source. Passive DIs are often a great match for powered sources such as synthesizers or guitars and basses with active preamps.

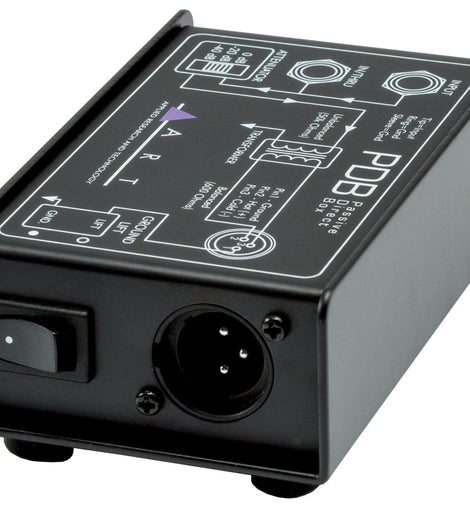

Packed into a stage-proof steel enclosure, the PDB provides a high-fidelity connection to a mixer, PA system, or audio interface.
General Features:
- 1/4" TS Input and Thru Connectors
- Balanced XLR Output
- Switchable Attenuation (-20 dB, -40 dB) and Ground Lift
- Passive Design - No Power Required
- Rugged Steel Case
Specifications:
| Active or Passive | Passive |
| Inputs | 1x 1/4" TS |
| Outputs |
1x XLR
1x 1/4" TS Thru |
| Input Impedance | 50 kΩ |
| Output Impedance | 600Ω |
| Controls |
Attenuator (0 dB, -20 dB, -40 dB)
Ground Lift |
| Frequency Response | 10 Hz - 50 kHz +/- 0.5 dB @ +4 dBu |
| Dimensions (HWD) |
3" x 5" x 2"
7.6 cm x 12.7 cm x 5.1 cm |
**Specifications subject to change without notice
