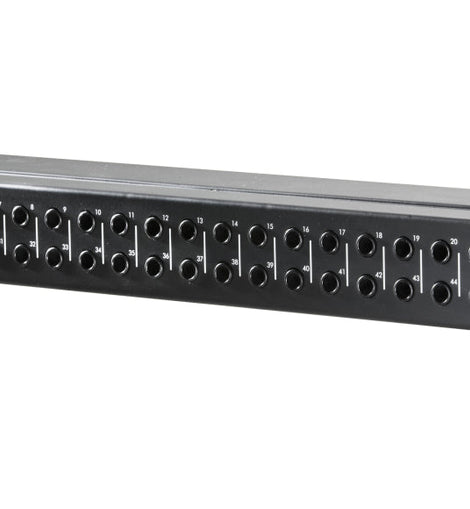

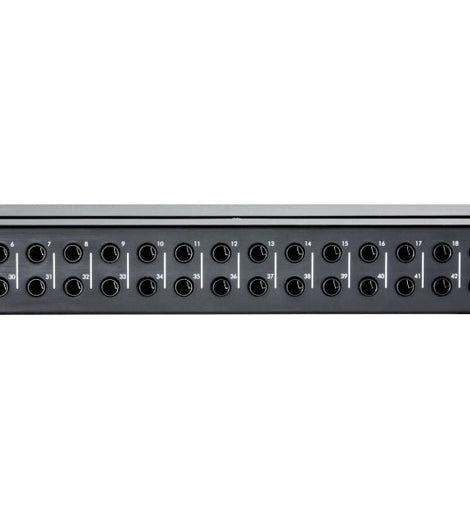

ART P48 48-point 1/4 inch TRS Balanced Patchbay
ART P48 48-point 1/4 inch TRS Balanced Patchbay
The P48 simplifies connecting and re-routing signals in your studio or live rack.
It's a 48-point patchbay, which means there are 24 channels of linked inputs and outputs, all with balanced 1/4" TRS connections.
Each channel can switch between normal and half-normal operation. In normal operation, connecting the front output will break the connection between the rear input and output. In half-normal operation, the rear connection remains unbroken so you can split the signal to a second destination.

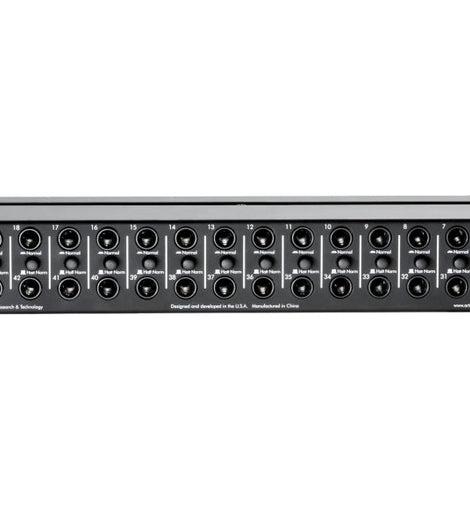

It adapts quickly and easily to your workflow. Unlike some patchbays which require that you physically flip channel modules, the P48 has a button on each channel to change between normal and half-normal operation.
It also features a shielded 1U steel chassis, a passive design so no power is required, reversible rack ears, and high-quality connectors for long-term reliability.
General Features:
- 24 Channels of Linked Input / Output Pairs
- 1/4" TRS Connections
- Switchable between Normal and Half-Normal Operation per Channel
- Passive Design - No Power Required
- Fully Shielded Steel Enclosure
- 1U Rackmount
- Reversible Rack Ears
Specifications:
| CMRR | Better than -90 dB (-95 dB Typical) |
| Isolation | Better than -90 dB (-95 dB Typical) |
| Dimensions (DWH) |
3.5" x 19" x 1.75"
89 mm x 483 mm x 44 mm |
| Weight | 4.5 lbs / 2 kg |
**Specifications subject to change without notice
