ART EQ355 Dual 31-Band Graphic EQ
ART EQ355 Dual 31-Band Graphic EQ
ART 300-Series graphic equalizers are designed for live sound, studio, and installation audio applications to provide intuitive sound shaping, versatile features, and silent operation.
The EQ355 is a dual-channel EQ with 31 bands per channel. Each channel has an independently switchable range of 6 or 12 dB, variable high-pass and low-pass filters, master level control, and bypass switch to quickly compare the dry and processed signals.

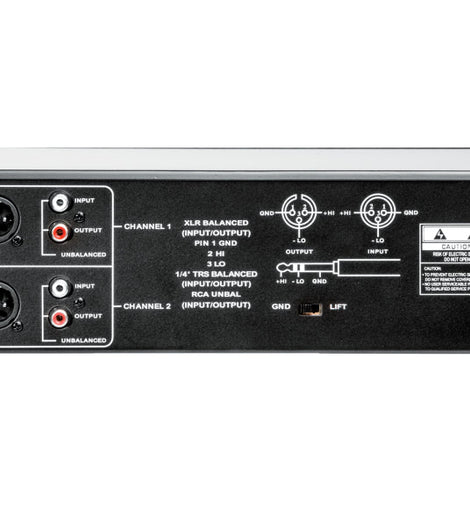

The rear panel has balanced XLR, balanced 1/4 TRS, and unbalanced RCA connectors, so the EQ355 is easy to integrate into any system. It also features a ground lift switch to help eliminate hum.
General Features:
- Dual 31-Band Graphic EQ
- 20mm Sliders with Centre Detent
- Switchable 6 dB or 12 dB Range
- Variable High-Pass and Low-Pass Filters
- Master Level Controls
- Balanced XLR and 1/4" TRS Inputs and Outputs
- Unbalanced RCA Input and Output
- 2U Rackmount
Specifications:
| Channels | 2 |
| Bands per Channel | 31 (1/3 Octave, ISO Spacing) |
| Accuracy | +/- 3% of Centre Frequency |
| Sliders | 20 mm with Centre Detent |
| Range | +/- 6 dB or +/- 12 dB |
| Inputs |
2x Balanced XLR and 1/4"
2x Unbalanced RCA |
| Input Impedance |
20 kΩ (Balanced)
15 kΩ (Unbalanced) |
| Maximum Input Level | +22 dBm (Level Control at Centre) |
| Outputs |
2x Balanced XLR and 1/4"
2x Unbalanced RCA |
| Output Impedance Level | <150Ω (Typical) |
| Frequency Response | 20 Hz to 20 kHz (+/- 0.5 dB) |
| Signal to Noise Ratio | -94 dB |
| Total Harmonic Distortion | 0.01% |
| High-Pass Filter | 10 Hz - 250 Hz (12 dB per Octave) |
| Low-Pass Filter | 3 kHz - 40 kHz (12 dB per Octave) |
| Overload LED Threshold | 6 dB below Clipping (All Filters Flat) |
| Dimensions (HWD) |
3.5" x 19" x 7
8.9 cm x 48.3 cm x 17.8 cm) |
| Weight | 9.0 lbs / 4.1 kg |
**Specifications subject to change without notice
