ART ARTT8 8-channel Hum Eliminator / Isolation Rack
ART ARTT8 8-channel Hum Eliminator / Isolation Rack
The T8 Transformer / Isolator provides eight channels with high-performance transformers to reduce hum and ground loop noise, separating the input and output signal grounds for total isolation between two systems.
The transformers are wound for 1:1 unity gain, and have an extremely flat and wide frequency response. Even at high signal levels, they provide clean, transparent sound.

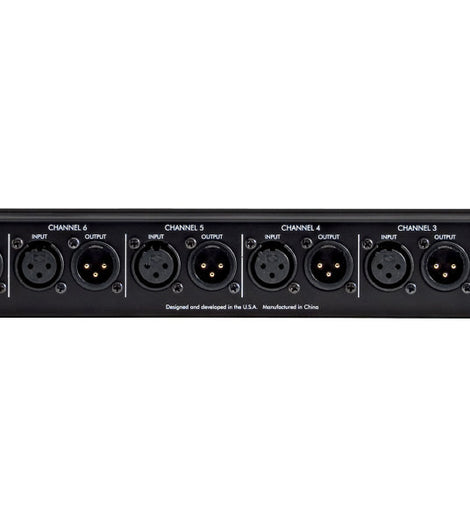

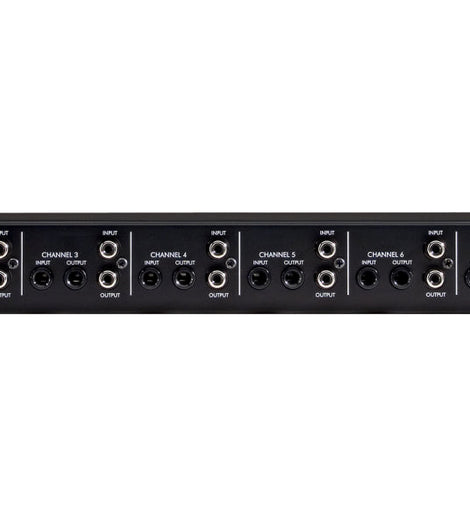

Each channel features XLR, 1/4" TRS, and RCA connectors for all inputs and outputs. The steel enclosure has reversible rack ears, and the passive design doesn't require external power. Flexible and easy to integrate, the T8 is built for years of reliable use.
General Features:
- 8-Channel Transformer / Isolator
- 1x XLR Input and Output per Channel
- 1x 1/4" TRS Input and Output per Channel
- 1x RCA Input and Output per Channel
- 10 Hz - 50 kHz Frequency Response
- 0.01% THD (Typical at 1 kHz, +18 dBU)
- Passive Design - No Power Required
- 1U Rackmount
- Reversible Rack Ears
Specifications:
| Active or Passive | Passive |
| Inputs |
8x Balanced XLR
8x Balanced 1/4" TRS 8x RCA |
| Outputs |
8x Balanced XLR
8x Balanced 1/4" TRS 8x RCA |
| Frequency Response | 10 Hz - 50 kHz (+/- 0.5 dB @ +4 dBu) |
| Insertion Loss |
0.4 dB (100 kΩ Load)
5.5 dB (600Ω Load) |
| Total Harmonic Distortion |
0.01% (Typical @ 1 kHz, +18 dBu)
< 0.05% @ 100 Hz, +24 dBu |
| Phase Error | < 5° (20 Hz - 20 kHz |
| Channel Separation | 90 dB (Typical) |
| CMRR | 60 dB (Typical) |
| Dimensions (DWH) |
3.75" x 19" x 1.75"
9.5 cm x 48.3 cm x 4.45 cm |
| Weight | 3.75 lbs / 1.7 kg |
**Specifications subject to change without notice
