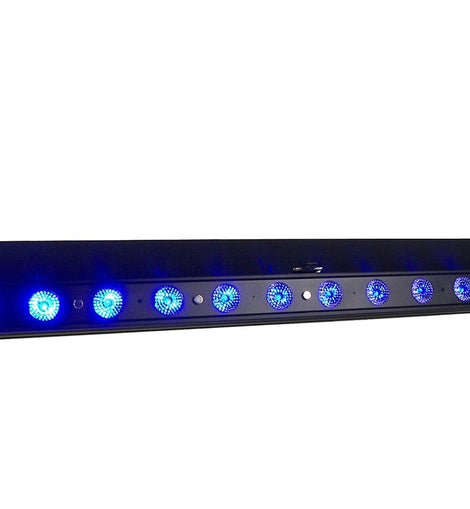

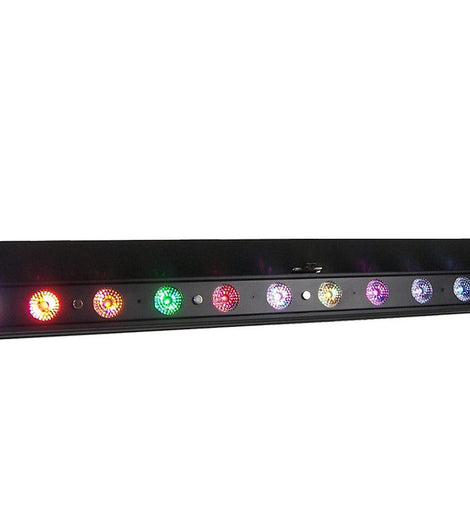

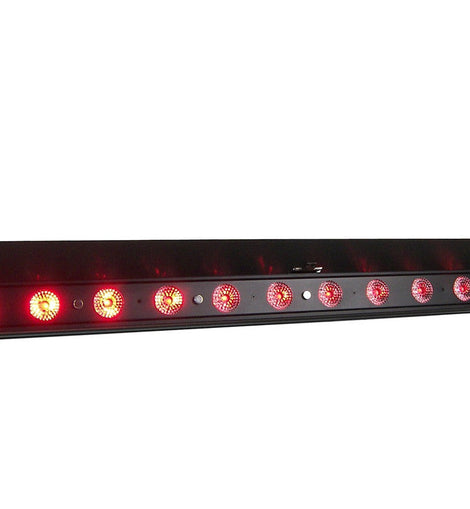

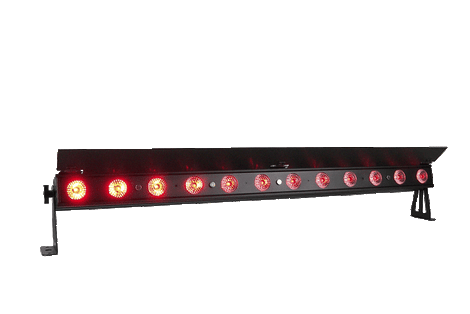

Antari PIXBAR12H 12x12W RGBWAU Pixel Control LED Bar with Barndoor

The Event Lighting PIXBAR12H is a high-output RGBWAU pixel control LED bar engineered for stage productions, churches, touring systems, and architectural lighting installations. Featuring 12 x 12W RGBWAU LEDs, full pixel mapping capability, and a standard 30° beam angle (optional 55°), this versatile fixture delivers vibrant color washes and dynamic chase effects with precise control. With True1 power in/out, 3-pin and 5-pin DMX, RDM functionality, and included barndoor and frost filter, the PIXBAR12H is built for professional integration and creative flexibility.

Powerful RGBWAU Output with Pixel Mapping Control

Designed for lighting professionals who demand both wash and pixel effects, the PIXBAR12H produces bold, saturated color with smooth blending and dynamic chases. Its high PWM frequency ensures flicker-free performance for live and broadcast environments.

• 12 x 12W RGBWAU LEDs for rich full-spectrum color
• 2,050 lux @ 2m (RGBWAU full on)
• 30° beam angle (optional 55° for wider coverage)
• 12,000Hz PWM for flicker-free camera use
• Pixel control modes for advanced mapping and chase effects
• 50,000-hour LED lifespan

Advanced Dimming & Flexible DMX Integration

With multiple 16-bit dimming curves and extensive DMX channel modes, the PIXBAR12H integrates seamlessly into professional lighting rigs. From simple wash control to detailed pixel mapping, it adapts to any programming requirement.

• 4 x 16-bit dimming curves for smooth fades
• Adjustable strobe (1-30Hz)
• DMX512 protocol with RDM support
• DMX channel modes: 3 / 4 / 4A / 8 / 12 / 14 / 24 / 72 / 74
• 3-pin and 5-pin XLR in/out
• True1 power in/out for secure linking
• Software upgrade via DMX
• Operation modes: DMX, manual, auto, sound active, master/slave, multi-fixture chase

Professional Construction with Light Shaping Accessories

Housed in a durable matte black aluminium chassis, the PIXBAR12H is built for touring and permanent installations. The included barndoor and frost filter allow precise beam shaping and diffusion, expanding creative control.

• Aluminium housing with matte black finish
• Barndoor included for beam control

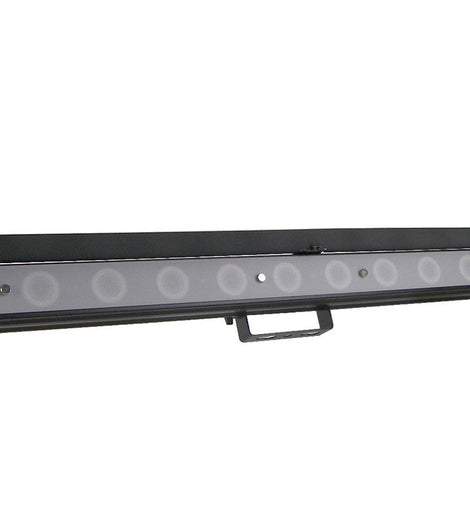

• Frost filter included for smooth diffusion
• Fanless cooling for silent environments
• Dimensions: 1050 x 165 x 80mm (41.3" x 6.5" x 3.1")
• Net weight: 4.5 kg (9.9 lbs)

General Features:

• Light Source: 12 x 12W RGBWAU LEDs
• Beam Angle: 30° (optional 55°)
• Output: 2,050 lux @ 2m
• PWM: 12,000Hz
• Dimming: 4 x 16-bit curves
• Strobe: 1-30Hz
• Control Protocol: DMX512 with RDM
• DMX Channels: 3 / 4 / 4A / 8 / 12 / 14 / 24 / 72 / 74
• Power Input: 100-240V AC, 50/60Hz
• Power Consumption: 150W
• Power Connection: True1 in/out
• Cooling: Fanless

In The Box

• Event Lighting PIXBAR12H RGBWAU Pixel Control LED Bar
• Barndoor
• Frost filter
• User documentation
