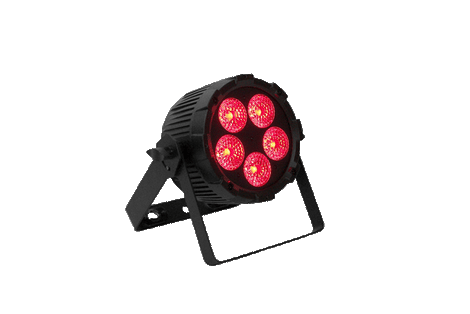

Antari PAR5H Compact RGBWA+UV Indoor Pro PAR with True1 & 16-Bit Dimming
Antari PAR5H Compact RGBWA+UV Indoor Pro PAR with True1 & 16-Bit Dimming
The Event Lighting PAR5H is a professional indoor LED PAR can designed for stage lighting, churches, theaters, and production environments that require rich color mixing and precise dimming control. Powered by 5 x 12W RGBWA+UV 6-in-1 LEDs, this compact fixture delivers vibrant color output with a measured 1,420 lux at 2 meters. Featuring 5 x 16-bit dimming curves, True1 power connectivity, 5-pin DMX, and optional WDMX support, the PAR5H is engineered for clean installs and smooth fades in demanding professional applications.
Precision Color Mixing with Custom Beam Options
The PAR5H combines red, green, blue, white, amber, and UV LEDs for expanded color blending and enhanced pastel tones. Interchangeable beam angle options allow you to tailor the fixture to your exact coverage needs.
- 5 x 12W RGBWA+UV LEDs for full-spectrum color control
- 1,420 lux @ 2m (full on)
- Standard 30° beam angle
- Optional beam angles: 40°, 25°, 15°
- 2,940Hz PWM for flicker-resistant performance
- 50,000-hour LED lifespan
Advanced Dimming and Flexible Control Modes
Built for lighting designers who demand smooth fades and creative flexibility, the PAR5H features multiple dimming curves and extensive DMX channel modes to integrate seamlessly into professional lighting systems.
- 5 x 16-bit dimming curves for ultra-smooth transitions
- Adjustable strobe (1-30Hz)
- DMX512 protocol
- DMX channel modes: 1 / 2 / 3 / 4W / 4A / 6 / 8 / 12 / 14
- Operational modes: DMX, optional WDMX, auto run, sound active, master/slave, manual color, static color

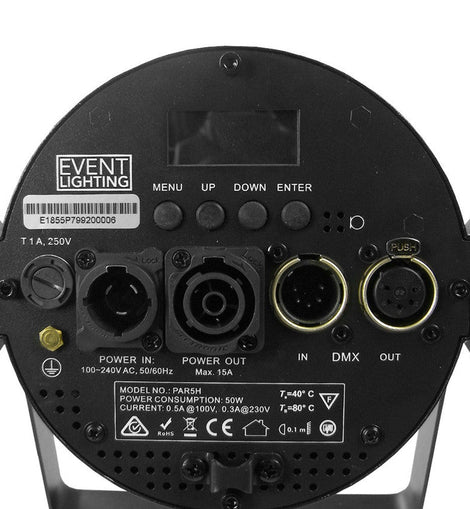

- 5-pin XLR in/out
- 4-button LCD control panel
Tour-Ready Design with True1 Connectivity
The PAR5H is housed in a rugged die-cast aluminium enclosure with a matte black finish and fanless cooling for silent operation. True1 power in/out ensures secure, professional-grade connectivity for touring and installed systems.
- True1 power in/out
- Die-cast aluminium housing
- Fanless cooling for noise-sensitive environments
- Compact dimensions: 207 x 227 x 120mm (8.1" x 8.9" x 4.7")
- Net weight: 1.9 kg (4.2 lbs)
- Omega bracket with 1/4 turn quick locks included
General Features:
- Light Source: 5 x 12W RGBWA+UV 6-in-1 LEDs
- Beam Angle: 30° (40°, 25°, 15° optional)
- Output: 1,420 lux @ 2m
- PWM: 2,940Hz
- Dimming: 5 x 16-bit curves
- Strobe: 1-30Hz
- Control Protocol: DMX512
- DMX Interface: 5-pin XLR in/out
- Power Input: 100-240V AC, 50/60Hz
- Power Consumption: 50W
- Power Connection: True1 in/out
- Cooling: Fanless
In The Box
- Event Lighting PAR5H Indoor Pro LED PAR
- Omega bracket with 1/4 turn quick locks
- User documentation
