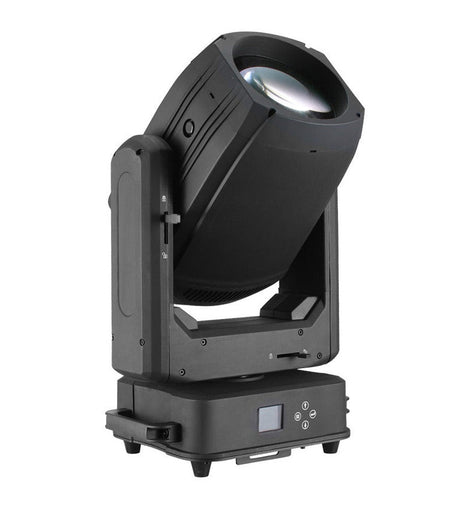

Antari OUTBACK 180B LED Moving Head Beam Fixture

The Event Lighting OUTBACK180B is a high-intensity IP65 outdoor beam moving head engineered for festivals, architectural installs, and touring productions that demand extreme punch and weatherproof reliability. Powered by a 180W white LED, this fixture delivers a staggering 191,301 lux at 5 meters through a razor-sharp 1.8° beam angle with a crisp 7,000K color temperature. Featuring dual color wheels, fixed and rotating gobos, dual prisms with overlap, motorized focus, frost, and DMX512/RDM control, the OUTBACK180B is built to cut through outdoor environments with precision and impact.

Ultra-Tight Beam Performance for Long-Throw Impact

Designed for powerful aerial effects and long-distance projection, the OUTBACK180B produces concentrated beam looks that dominate large outdoor stages and event sites. Its precision optics and 16-bit movement ensure smooth sweeps and accurate positioning.

• 180W white LED source for high-output beam performance
• 191,301 lux @ 5m (1.8°) for intense aerial effects
• 1.8° fixed beam angle for tight, long-throw projection
• 7,000K CCT for clean, bright beam definition
• 16-bit pan/tilt resolution for smooth, professional movement
• 540° pan / 270° tilt with auto repositioning

Dual Color, Gobo, and Prism Effects Engine

The OUTBACK180B delivers layered beam effects with extensive color and pattern options. Dual color wheels and gobo systems allow lighting designers to build dynamic looks for concerts, outdoor worship events, and large-scale productions.

• 14 colors + open (first wheel)
• 8 colors + open (second wheel)
• 10 fixed gobos + open
• 4 rotating gobos + open with indexing
• Gobo shaking and indexing for animated effects
• 24-facet circular prism (optional rainbow effect)
• 5-facet linear prism with indexing
• Prism overlap for complex beam multiplication
• Motorized focus for sharp projection control
• Frost filter for beam softening
• 0-100% dimming and 1-25 Hz strobe

IP65 Outdoor Housing with Professional Control Integration

Purpose-built for outdoor environments, the OUTBACK180B features a durable IP65-rated enclosure with high-temperature automatic protection. Integrated DMX512 and RDM support, optional wireless control, and True1 power connectivity ensure seamless integration into modern lighting systems.

• IP65 rated for outdoor operation
• DMX512 and RDM compatible
• 20 / 23 channel modes
• 3-pin and 5-pin XLR in/out
• Optional wireless DMX
• True1 power in/out for secure connections
• TFT control panel for intuitive setup
• High temperature automatic protection
• ABS & steel matte black housing

General Features:

• Light Source: 180W White LED
• Beam Angle: 1.8°
• Output: 191,301 lux @ 5m
• Color Temperature: 7,000K
• CRI: >70
• LED Lifespan: >20,000 hours
• Color Wheels: 14 + open; 8 + open
• Gobos: 10 fixed + open; 4 rotating + open
• Prisms: 24-facet circular; 5-facet linear
• Dimming: 0-100%
• Strobe: 1-25 Hz
• Focus: Motorized
• Pan/Tilt: 540° / 270°
• Control Protocol: DMX512, RDM
• DMX Channels: 20 / 23
• Power Input: 100-240V AC, 50/60Hz
• Max Power Consumption: 260W
• Power Connection: True1 in/out
• IP Rating: IP65
• Dimensions: 338 x 240 x 555mm (13.3" x 9.4" x 21.9")
• Net Weight: 16.5 kg (36.4 lbs)

In The Box

• Event Lighting OUTBACK180B Outdoor 180W LED Beam Moving Head
• True1 power in/out connection
• User documentation
