Antari DFX-PD4-MKII DMX Controller/PSU for UV-510 - 4 x 24VDC / 500mA Output

General Features:

• Compact and robust design

• 4 output terminals for DarkFX UV fixtures

• Neutrik powerCON in/thru

• 2 x 16 digit LCD display interface

• DMX control option

• RDM feature set

Specifications:

• Input Voltage: AC100-240DV 50-60Hz

• Rated Power: 100W

• Refresh Rate: 600Hz

• Output Current: Constant 500mA Max. per channel

• Control Option: RDM, DMX 512, Manual

• DMX Channels: 1,2

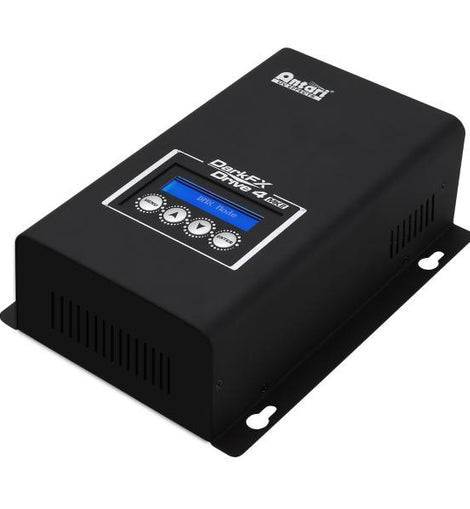

• Operation: 2 x 16 digit display with 4 buttons

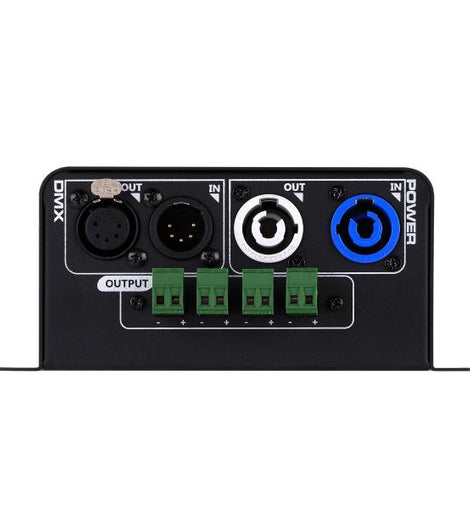

• Fixture Output: 4 terminal block

• Power Connection: Neutrik Powercon in/through

• DMX Data Connection: 5-pin XLR

• Housing: Metal

• Protection Rating: IP-20 Indoor use only

• Dimension (LxWxH): 211 x 167 x 70mm

• Dry Weight: 1.62 kg
