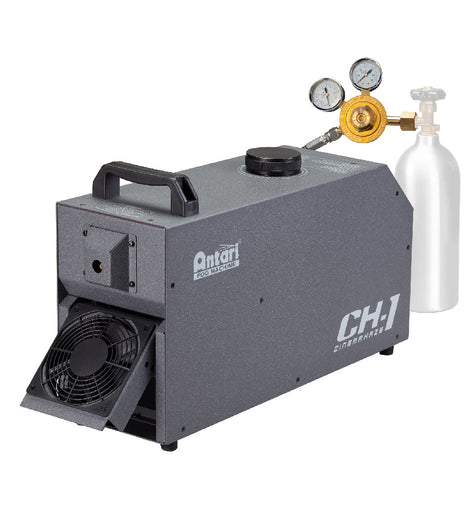

Antari CH-1D CO2 Fog Machine
Antari CH-1D CO2 Fog Machine
Meet the Antari CH-1, the inaugural CO2 machine setting new standards in performance. Its pioneering design delivers whisper-quiet operation, seamlessly blending into any environment. With extended hang time, it creates an enchanting atmosphere, perfect for elevating events to unforgettable heights with its unmatched reliability and sophistication.
General Features:
- Color Touch Screen Panel
- Low Fluid Consumption
- Quiet Operation

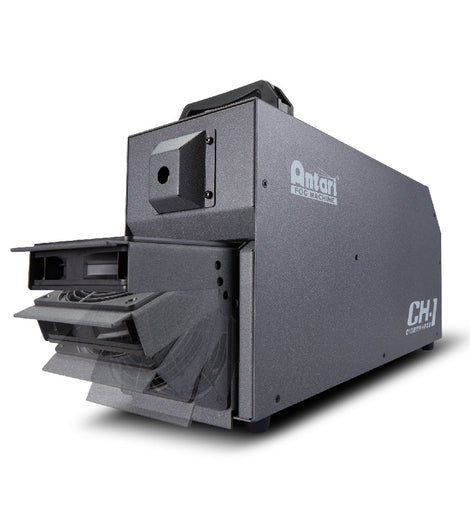

- Adjustable Fan
-
Long Hang Time
Note: This machine is only compatible with high‑pressure CO₂ cylinders ; do not use siphon (Dip Tube) cylinders
Specifications:
| Input Voltage | AC 100-240V, 50 / 60 Hz |
| Rated Power |
120V 6.0A 700W
240V 5.5A 1250W |
| Warm-Up Time | 8 Minutes (approx) |
| Fluid Consumption | 2 ml/min @40psi / 2.76bar (100% Output) |
| Fluid Tank Capacity | 2.5 Liters (0.66 Gallon) |
| Compatible Fluid | Antari CHL-2 Haze Fluid |
| Gas Type | CO2 , N2 |
| Gas Pressure Range | 50 - 60psi / 3.4 bar- 4.1bar |
| Gas Consumption |
0.36 Kg / hr @ 40 psi
0.18 Kg / hr @ 20 psi |
| Control Methods interface | TFT LCD Touch screen |
| Ambient Temp. Range | 0°C - 40°C (32°F - 104°F) |
| Control Methods |
Manual
Timer DMX 512 Wireless DMX (Optional) |
| DMX Channels | 1 / 3 / 5 Channel |

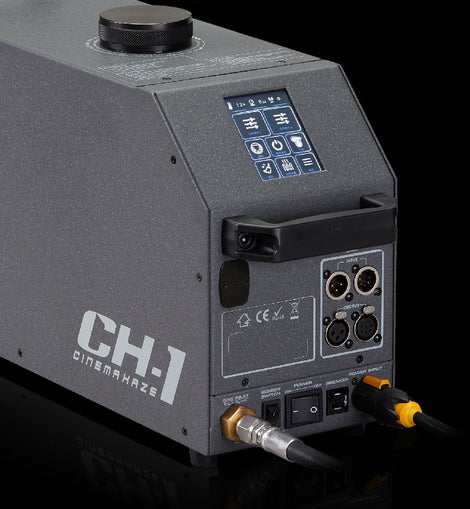

| Interface |
Neutrik powerCON TRUE 1 (Power)
XLR 3-Pin & 5-Pin (DMX) 9/16 -18 R.H (Gas inlet) |
| Included Accessories |

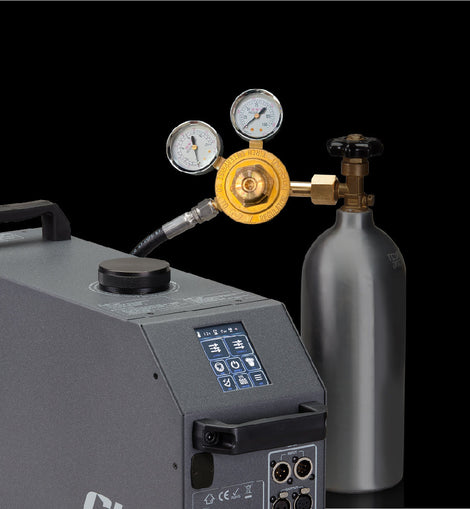

Pressure Gauge
Air Hose |
| Optional Accessories |
TIMO-W-DMX-PCBR Wireless DMX
FCH-1 Flight Case |
| Dimension |
L579 W164 H311 mm
L22.79 W6.46 H12.25 inch |
| Weight |
17.0 kg
37.48 lbs |
Warning:
This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
