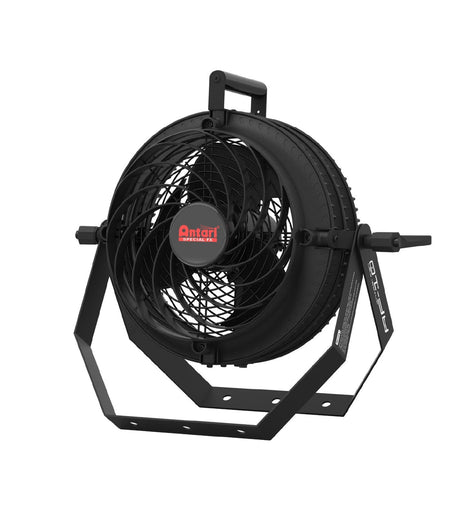

Antari AF-10 IP Effects Fan
Antari AF-10 IP Effects Fan
The Antari AF-10 is high-velocity fans engineered for professional use, combining power, precision, and durability. Featuring a unique swirl-shaped front cover, they maintain focused airflow while reducing turbulence and noise. The specially designed aerodynamic blades ensure optimal air distribution with minimal sound, making them ideal for stage, studio, and installation environments. Built with robust materials for reliable performance,can operate with a simple plug to start or integrate with an optional control box for remote operation. Whether for fog dispersion or wind effects, the AF-10 delivers efficient, quiet, and consistent airflow in demanding applications.
General Features:
- High-Velocity Airflow
- Swirl-Shaped Front Cover
- Low Noise Operation
- Robust Constrcution
- IP55 Rated Motor
Specifications:
| Input Voltage |
US Model : AC 100 - 120V, 50 / 60 Hz 0.5A
EU Model : AC 220 - 240V, 50 / 60 Hz 0.5A |
| Rated Power |
120V 60W
240V 65W |
| Ambient Temp. Range | 0°C - 40°C (32°F - 104°F) |
| Air Flow | 1913 CFM (60Hz) |
| Fan Speed | 1640±40RPM |
| Noise Level | 51.0 dB (Max. Output) |
| Control Methods |
Manual
Timer DMX512 Wireless (Optional) Wireless DMX (Optional) |
| DMX Channels | 1 Channel |
| Interface |
SEETRONIC IP65 Connector (Power)
SEETRONIC IP65 XLR 5-Pin Connector (DMX) |
| Included Accessories |
Dual Use Bracket
AFC-1 Fan Control |
| Optional Accessories |
WTR-110 Wireless Module
ES-W-DMX Wireless DMX |
| Dimension |
L326 W535 H487 mm
L12.84 W21.07 19.18 inch |
| Weight |
8.2 kg
18.08 lbs |
