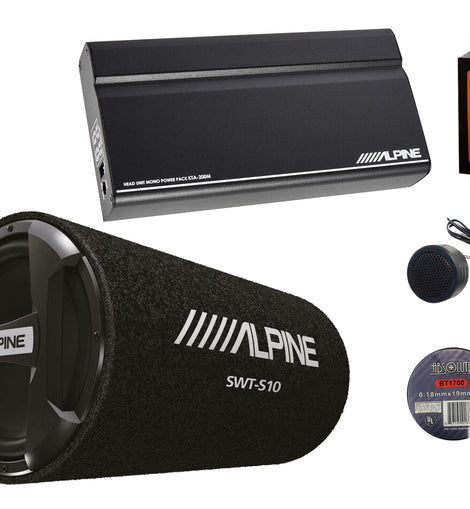

Alpine KTA-200M Mono Power Pack Amp

The KTA-200M fits in the open space behind Alpine’s iLX-W650 7-inch Mmech-Less (no CD/ DVD) Audio/Video receiver to create Alpine’s unique Power Stack application. The compact footprint of the amplifier (7-inch W x 1.5-inch H x 3.5-inch D) and the shallow chassis of the iLX-W650 (1.9-inch D), occupies the same depth as a traditional 2-DIN chassis, resulting in an easy, hideaway bass solution that adds more power to the sound system without taking up space. The KTA-200M follows the same format as the KTA-450 4-Channel Power Pack Amplifier in a compact size, easy installation, and overall power. Both amplifiers, while designed to “stack” behind the iLX-W670 or similar 2-DIN radio, can also be used as standalone solutions in vehicles that don’t have space for a traditional amplifier. The KTA-200M produces 400 watts with Alpine’s DPP technology. During powerful or “dynamic” passages of music, DPP will adapt to the music's needs by adjusting the amplifier's gain and delivering bursts of power that match the peak demands of the music. Alongside that is the new voltage-adjusting input circuit that maintains the maximum source signal level without clipping.

General Features:

• Power Stack capable with the Alpine iLX-W650
• compact mono subwoofer amplifier
• Alpine’s Class D Amplifier Circuit with DPP
• Dynamic Peak Power (DPP) technology adds a burst of power when needed
• CTA-2006 compliant
• 100W x 1 RMS @ 4Ω, Power Outputs
• 200W x 1 RMS @ 2Ω, Power Outputs
• 400W x 1 DPP @ 4Ω, Power Outputs
• Signal to Noise Ratio 85dB (ref. 1W into 4Ω)
• ≤0.1% THD+N (ref. 10W into 2Ω)
• Single-side 22-pin connector
• selectable low-pass filter (60, 80, 120 Hz at 12 dB/octave)
• preamp and speaker-level inputs
• RCA inputs (selectable, Low range=0.2-4V)
• Sound controls; Crossovers-Off/60Hz/80Hz/120Hz Linkwitz Riley LP Filter @ -24dB/Oct. (selectable); Input gain setting (variable)
• wiring, hardware, and fuse not included with the amplifier
• Power Stack bracket included for mounting amp behind Alpine iLX-W650 digital multimedia receiver
• Authorized Dealer
• 1-year Warranty

Alpine SWT-12S4 1500W Max Single 12" Bass Reflex Sealed Subwoofer Tube Enclosure

With 1500W peak power handling, this ready-to-use bass reflex subwoofer tube is just for big bass fans. A protective grille ensures that nothing sliding around in the trunk damages the woofer.

General Features:

• 12" 4 ohm Bass Reflex Series Subwoofer
• 1500 Watts Peak Power Handling
• 300 Watts RMS Power Handling
• Heavy-Duty Subwoofer Grill
• Stitched Alpine Logo
• Carpeted Exterior
• Push SPK Terminal
• Installation Brackets and Belts Included
• Frequency Response: 28 - 200 Hz
• Sensitivity: 92 dB
• Speaker Impedance: 4 Ω
• Enclosure Dimensions: 12.75"W x 26" D
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Subwoofer Features:

• 12" Passive Subwoofer
• Push SPK Terminal
• Voice coil size/type
• Sensitivity: 92dB
• Enclosure Features:
• Tube enclosure
• Black Carpet Finish with White Alpine Logo
• Grille included
