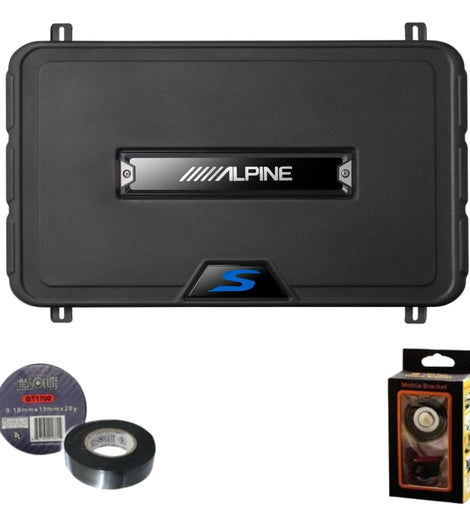

Alpine SS-SB12 Single 12" S-Series Shallow Preloaded sealed downward-firing Subwoofer Enclosure & Absolute BT1700 Electrical Tape & Swivel Mobile Bracket Holder Bundle

With an ultra-shallow enclosure design and powerful sound output, the S-Series Preloaded 12 inch Shallow Subwoofer Enclosures give you the best of both worlds in size and sound.

DESIGNED FOR TIGHT SPACES
Now you don't have to choose between bass and space! Alpine's 12" S-Series Shallow Pre loaded Subwoofer Enclosure measures at a minimal 5.25" deep to deliver clean and reliable bass performance in most vehicle applications.

POWERFUL PERFORMANCE
The SS-SB12 features a 2" voice coil inside of a lightweight yet powerful neodymium magnet for up to 300W RMS of power handling. This, combined with a front-mounted magnet motor, allows the enclosure to have an extremely shallow footprint while maintaining powerful bass performance.

ADJUSTABLE MOUNTING OPTIONS

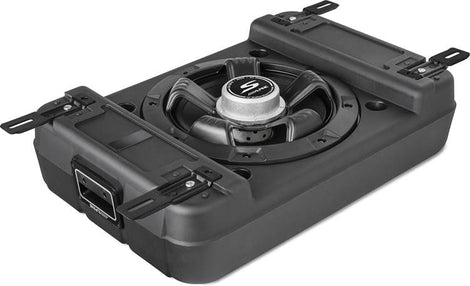

Four adjustable, foam-padded steel mounting brackets allow for flexible installation in many areas and vehicle types, while the foam reduces vibration during play for optimized performance.

PRECISE BASS CONTROL
Alpine's Gen2 DD-Linear Magnetic Circuit technology, a compact and efficient dual-gap voice coil structure, allows for better control over the motor, resulting in 22mm of peak-to-peak linear excursion for maximized output.

General Features:

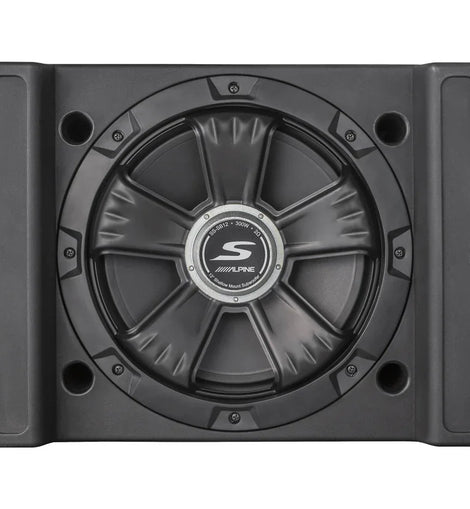

• sealed downward-firing enclosure with one 12" S-Series shallow subwoofer
• water-resistant polymer enclosure
• polypropylene cone
• 2-ohm total impedance
• power handling: 300 watts RMS (600 watts peak)
• Preloaded 12" Shallow Subwoofer
• Optimal Sealed Cabinet Quality
• Neodymium Magnet
• Front-Mounted Neodymium Magnet
• Alpine Gen2 DD Linear Magnetic Circuit
• Rugged Polymer Enclosure Cabinet
• Adjustable, foam-padded mounting brackets for flexible installation and reduced vibration
• frequency response: 32-200 Hz
• dimensions: 22.25"W x 5.25"H x 13.125"D

What's in the Box:

Sealed Cabinet with (1) 12" S-Series Shallow Subwoofer
(x4) Mounting Brackets
Owner's Manual
Warranty Information
Online product registration information

TECH SPECS:

Dimensions: 22.25" (W) x 5.25" (H) x 13.125" (D)
Power Handling: 300W RMS
Frequency Response: 30Hz-200Hz
X-Max:11mm 1-Way Linear
Nominal Impedance: 2Ω
Copper Voice Coil: 2" (50.0mm)
Single 2 Ohm Voice Coil for a 2 Ohm load (compatible with S2-A55V, KTA-200M, or KTA-30MW Amplifiers)
