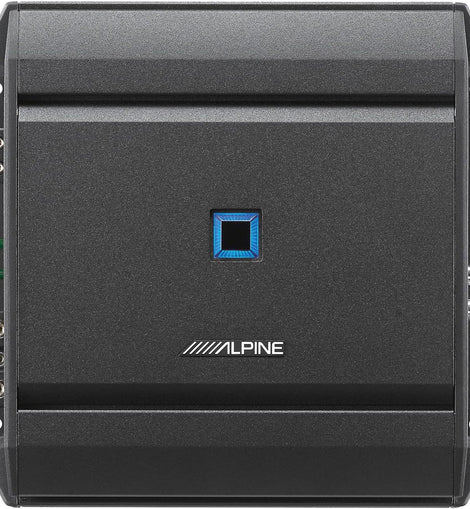

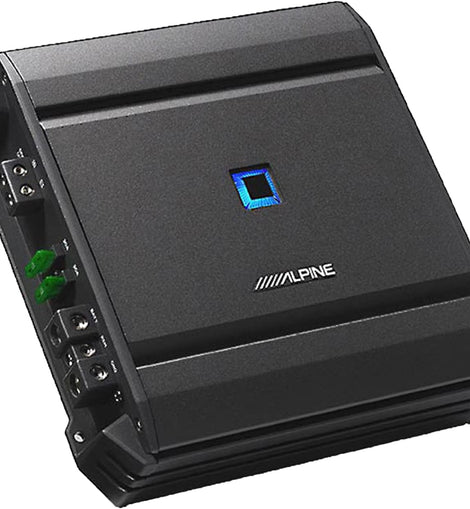

Alpine S2-A60M S-Series Class-D Mono Subwoofer Amplifier 600W RMS at 1 & 2-Ohm
Alpine S2-A60M Next-Generation S-Series Hi-Res Class D 600-Watt Mono Subwoofer Amplifier
Experience powerful, efficient bass performance with the Alpine S2-A60M Next-Generation S-Series Mono Subwoofer Amplifier. Built with advanced Class D amplifier technology, the S2-A60M delivers up to 600 watts RMS while maintaining excellent efficiency and compact dimensions for easy installation. Designed to pair perfectly with Alpine S-Series subwoofers, this amplifier features variable crossover controls, bass boost, speaker-level inputs, and comprehensive protection circuitry for dependable performance in virtually any car audio system.
Key Features
🔊 600 Watts RMS Output - Delivers up to 600 watts RMS at 2 ohms for clean, powerful bass performance.
âš¡ High-Efficiency Class D Design - Advanced Class D circuitry provides maximum output with reduced heat and current draw.
🎚 Fully Adjustable Bass Controls - Variable low-pass crossover and adjustable bass boost allow precise system tuning.
🚗 Compact Installation-Friendly Chassis - Small footprint makes installation easy in cars, trucks, SUVs, and custom audio systems.
🛡 Advanced Protection Circuitry - Thermal, overload, and speaker short-circuit protection ensure reliable long-term performance.
General Features
-
Next-Generation S-Series Mono Subwoofer Amplifier
-
Class D Monoblock Design
-
High-Efficiency Digital Amplifier
-
Pulse Width Modulated MOSFET Power Supply
-
2-Ohm Stable Operation
-
Speaker-Level Inputs
-
RCA Preamp Inputs
-
Variable Low-Pass Crossover
-
Variable Bass Boost
-
Soft-Start Turn-On
-
LED Power & Protect Indicators
-
Improved Heat Sink Design
-
Remote Bass Controller Compatible (Alpine RUX-KNOB.2 Sold Separately)
-
Authorized Internet Dealer
-
1-Year Manufacturer's Warranty
Power Output
RMS Power Ratings
-
330 Watts × 1 @ 4 Ohms
-
600 Watts × 1 @ 2 Ohms
Audio Specifications
-
Amplifier Class: Class D Monoblock
-
Frequency Response: 10Hz-400Hz
-
Total Harmonic Distortion (THD): <1%
-
Signal-to-Noise Ratio: 85 dB
-
Variable Low-Pass Filter: 50Hz-400Hz
-
Variable Bass Boost: 0-12 dB
-
Speaker-Level Inputs: Yes
-
RCA Preamp Inputs: Yes
Protection Features
-
Thermal Protection
-
Overload Protection
-
Speaker Short-Circuit Protection
-
Soft-Start Power-Up Circuit
-
LED Power Indicator
-
LED Protection Indicator

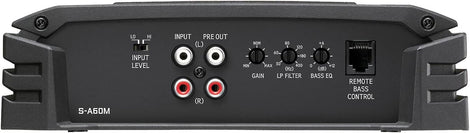

Installation Features
-
Compact Chassis Design
-
Heavy-Duty Aluminum Heat Sink
-
Easy Access Controls
-
Remote Bass Knob Compatible
-
2-Ohm Stable Operation
-
Speaker-Level Input Auto Turn-On Compatible
Dimensions
-
Width: 8-1/16"
-
Length: 9-3/16"
-
Height: 2-5/16"
What's Included
-
Alpine S2-A60M Mono Subwoofer Amplifier
-
Two End Caps
-

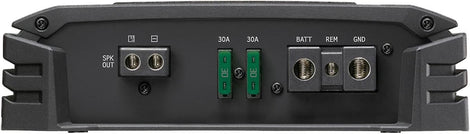

Two 30-Amp Fuses (Installed)
-
Four 3/4" Mounting Screws
-
Four 1/4" Mounting Screws
-
2mm Allen Key
-
Owner's Manual
-
Warranty Information
-
Alpine Verification Certificate
-
Power Supply Note
-
Online Product Registration Information
Ideal Applications
-
Car Audio Systems
-
Truck Audio Systems
-
SUV Audio Systems
-
Custom Bass Installations
-
Sealed or Ported Subwoofer Systems
-
Alpine S-Series Subwoofer Systems
Specifications
| Feature | Specification |
|---|---|
| Brand | Alpine |
| Model | S2-A60M |
| Series | S-Series |
| Amplifier Type | Class D Monoblock |
| RMS Power @ 4Ω | 330W × 1 |
| RMS Power @ 2Ω | 600W × 1 |
| Stable Impedance | 2 Ohms |
| Frequency Response | 10Hz-400Hz |
| THD | <1% |
| Signal-to-Noise Ratio | 85 dB |
| Low-Pass Filter | Variable 50-400Hz |
| Bass Boost | Variable 0-12 dB |
| Fuse Rating | 30A × 2 |
| Dimensions | 8-1/16" × 9-3/16" × 2-5/16" |
