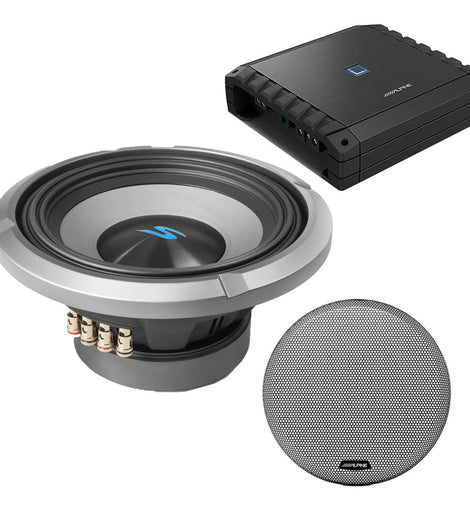

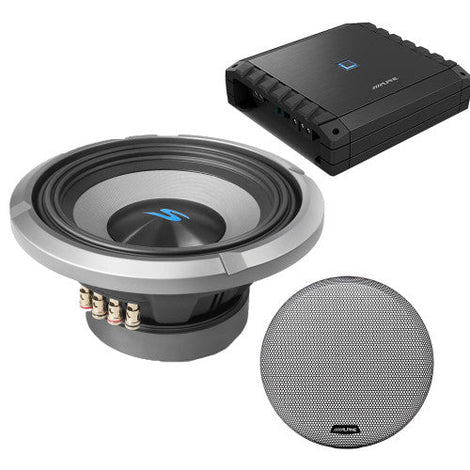

Alpine S2-A60M S-Series Class-D Mono Amplifier + S2-W10D2 10" Dual 2-Ohm Subwoofer + KTE-10G.3 Protective Grille Bundle

Upgrade your vehicle's bass performance with this premium Alpine S-Series Bass Bundle, featuring the Alpine S2-A60M Class-D Mono Subwoofer Amplifier, Alpine S2-W10D2 10" Dual 2-Ohm S-Series Subwoofer, and the Alpine KTE-10G.3 Protective Grille. Designed to work together, this package delivers powerful, accurate bass while protecting your investment with a durable metal mesh grille. Ideal for custom enclosures and daily-driven audio systems, this bundle offers exceptional performance, reliability, and Alpine sound quality.

Key Features

🔊 Complete Alpine Bass Package - Includes a 600W RMS Class-D monoblock amplifier, 10" S-Series dual 2-ohm subwoofer, and matching protective grille.

⚡ 600 Watts RMS Output - The S2-A60M amplifier delivers up to 600 watts RMS at 2 ohms, perfectly matched to the S2-W10D2 subwoofer.

🎵 High-Performance 10" Subwoofer - Carbon fiber/polypropylene cone, HAMR surround, 15 mm Xmax, and dual 2-ohm voice coils produce deep, clean, and accurate bass.

🛡 Heavy-Duty Protective Grille Included - The Alpine KTE-10G.3 metal mesh grille helps protect the subwoofer from accidental impact without restricting airflow or sound quality.

🎚 Advanced Bass Controls - Variable low-pass crossover, adjustable bass boost, and compatibility with the optional Alpine RUX-KNOB.2 remote bass controller.

Package Includes

• Alpine S2-A60M S-Series Class-D Mono Subwoofer Amplifier

• Alpine S2-W10D2 10" Dual 2-Ohm S-Series Subwoofer

• Alpine KTE-10G.3 10" Protective Subwoofer Grille

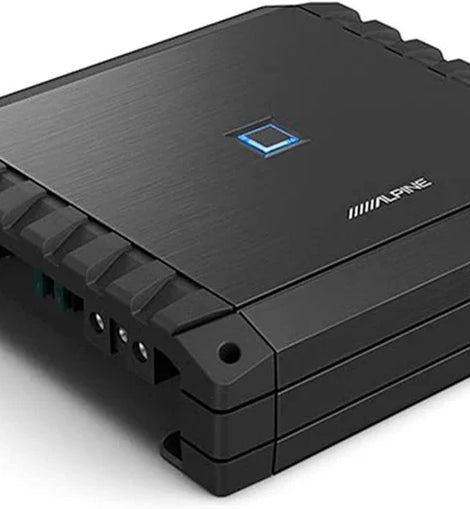

Alpine S2-A60M S-Series Class-D Mono Amplifier

The Alpine S2-A60M is engineered to deliver powerful, efficient bass with excellent reliability and compact installation.

General Features

• Class-D Monoblock Amplifier

• 2-Ohm Stable Design

• Pulse Width Modulated MOSFET Power Supply

• LED Power & Protection Indicators

• Soft-Start Turn-On

• Speaker-Level Inputs

• Variable Low-Pass Filter

• Variable Bass Boost

• Thermal, Overload & Speaker Short Protection

• Compatible with Alpine RUX-KNOB.2 Remote Bass Controller (Sold Separately)

• Authorized Internet Dealer

• 1-Year Manufacturer's Warranty

RMS Power Output

• 330 Watts x 1 @ 4 Ohms

• 600 Watts x 1 @ 2 Ohms

Specifications

• Amplifier Type: Class-D Monoblock

• Frequency Response: 10Hz-400Hz

• Total Harmonic Distortion (THD): <1%

• Signal-to-Noise Ratio: 85 dB

• Variable Low-Pass Filter: 50Hz-400Hz

• Variable Bass Boost: 0-12 dB

• Fuse Rating: 30A × 2

• Dimensions: 8-1/16" W × 9-3/16" L × 2-5/16" H

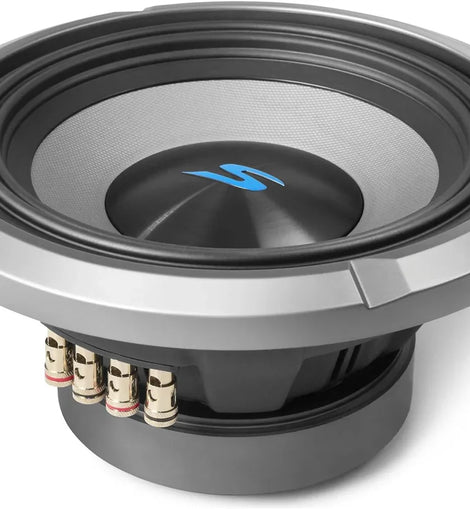

Alpine S2-W10D2 10" S-Series Dual 2-Ohm Subwoofer

Designed for high-output bass with exceptional control and durability, the S2-W10D2 features Alpine's advanced S-Series technology.

General Features

• 10" S-Series Subwoofer

• Dual 2-Ohm Voice Coils

• Carbon Fiber / Polypropylene Cone

• High-Amplitude Multi-Roll (HAMR) Rubber Surround

• Polypropylene / Ceramic Dust Cap

• 2.6" High-Temperature Copper Voice Coil

• Twist-Lock Grille Mount System

• 64 oz. Single-Stacked Ferrite Magnet

• Authorized Internet Dealer

• 1-Year Manufacturer's Warranty

Specifications

• Speaker Size: 10"

• Voice Coil Configuration: Dual 2 Ohms

• RMS Power Handling: 600 Watts

• Peak Power Handling: 1,800 Watts

• Frequency Response: 23Hz-215Hz

• Sensitivity: 86.2 dB

• Xmax: 15 mm

• Mounting Depth: 4.54"

• Cutout Diameter: 8.94"

Recommended Enclosures

Sealed Enclosure

• 0.40-0.85 Cubic Feet

Ported Enclosure

• 0.75-1.30 Cubic Feet

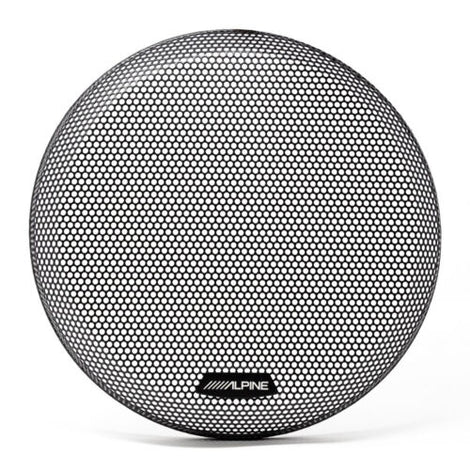

Alpine KTE-10G.3 Protective Grille

Protect your Alpine subwoofer while maintaining excellent acoustic performance.

General Features

• 10" Protective Metal Mesh Subwoofer Grille

• Compatible with Alpine Type-R and Type-S 10" Subwoofers

• Durable Metal Mesh Construction

• Twist-Lock Mounting Design

• Helps Protect Against Accidental Impact

• Factory Alpine Appearance

• Authorized Dealer

• 1-Year Manufacturer's Warranty

Compatibility

• Alpine S2-W10D2

• Alpine S2-W10D4

• Alpine R2-W10D2

• Alpine R2-W10D4

Applications

• Custom Car Audio Systems

• Sealed or Ported Subwoofer Enclosures

• Daily Driver Audio Upgrades

• High-Performance Bass Systems

• Competition-Inspired Installations

Package Contents

• Alpine S2-A60M Mono Amplifier

• Alpine S2-W10D2 10" Dual 2-Ohm Subwoofer

• Alpine KTE-10G.3 10" Protective Grille

• Owner's Manuals

• Warranty Information
