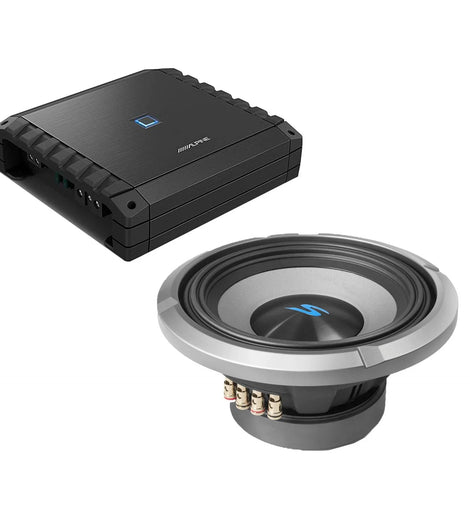

Alpine S2-A60M S-Series Class-D Mono Amplifier + S2-W10D2 10" Dual 2-Ohm S-Series Subwoofer Bundle

Upgrade your vehicle's bass performance with the Alpine S2-A60M S-Series Class-D Mono Amplifier and Alpine S2-W10D2 10" Dual 2-Ohm S-Series Subwoofer bundle. Engineered to work together, this package delivers powerful, clean bass with 600 watts RMS of amplifier power and a 600-watt RMS subwoofer. Featuring Alpine's next-generation S-Series technology, this system provides outstanding low-frequency performance, high efficiency, and exceptional reliability for daily driving or serious audio enthusiasts.

Key Features

🔊 Complete Alpine Bass Package - Includes the Alpine S2-A60M Class-D monoblock amplifier and Alpine S2-W10D2 10" dual 2-ohm subwoofer.

⚡ 600 Watts RMS Power - The S2-A60M delivers up to 600W RMS at 2 ohms, perfectly matching the S2-W10D2 subwoofer's continuous power handling.

🎵 High-Performance S-Series Subwoofer - Carbon fiber/polypropylene cone, HAMR surround, and 15 mm Xmax produce deep, accurate, and controlled bass.

🎚 Advanced Bass Controls - Variable low-pass crossover, adjustable bass boost, and compatibility with the optional Alpine RUX-KNOB.2 remote bass controller.

🛡 Reliable Alpine Engineering - Class-D efficiency, advanced protection circuitry, and premium construction ensure dependable long-term performance.

Package Includes

• Alpine S2-A60M S-Series Class-D Mono Subwoofer Amplifier

• Alpine S2-W10D2 10" S-Series Dual 2-Ohm Subwoofer

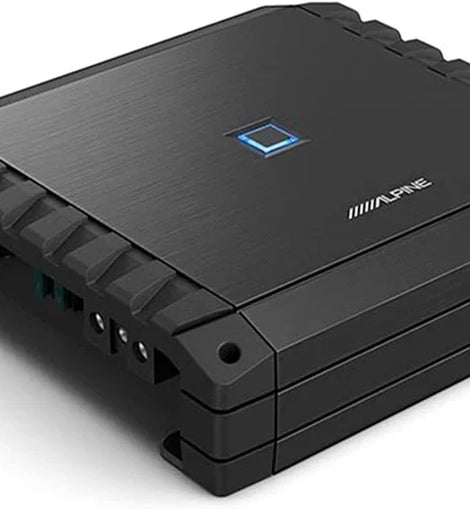

Alpine S2-A60M S-Series Class-D Mono Amplifier

The Alpine S2-A60M is a compact, high-efficiency Class-D amplifier designed to provide powerful, clean bass while maintaining cool operation and exceptional reliability.

General Features

• Class-D Monoblock Amplifier

• 2-Ohm Stable Design

• Pulse Width Modulated MOSFET Power Supply

• LED Power and Protection Indicators

• Soft-Start Turn-On

• Speaker-Level Inputs

• Variable Low-Pass Filter

• Variable Bass Boost

• Advanced Thermal, Overload, and Speaker Short Protection

• Compatible with Alpine RUX-KNOB.2 Remote Bass Controller (Sold Separately)

• Authorized Internet Dealer

• 1-Year Manufacturer's Warranty

RMS Power Output

• 330 Watts x 1 @ 4 Ohms

• 600 Watts x 1 @ 2 Ohms

Specifications

• Amplifier Type: Class-D Monoblock

• Frequency Response: 10Hz-400Hz

• Total Harmonic Distortion (THD): <1%

• Signal-to-Noise Ratio: 85 dB

• Variable Low-Pass Filter: 50Hz-400Hz

• Variable Bass Boost: 0-12 dB

• Fuse Rating: 30A × 2

• Dimensions: 8-1/16" W × 9-3/16" L × 2-5/16" H

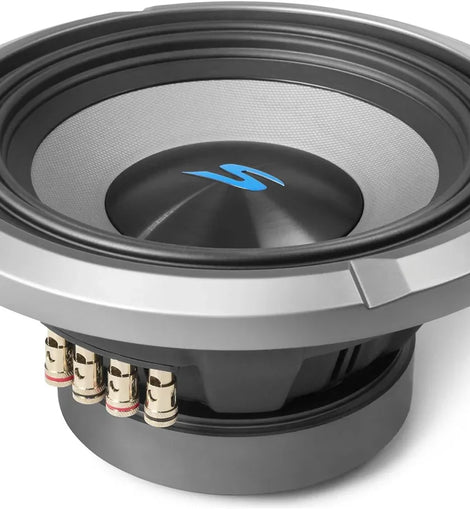

Alpine S2-W10D2 10" S-Series Dual 2-Ohm Subwoofer

The Alpine S2-W10D2 combines premium materials and Alpine's High-Amplitude Multi-Roll (HAMR) surround technology to produce deep, powerful bass with excellent control and long excursion capability.

General Features

• 10" S-Series Subwoofer

• Dual 2-Ohm Voice Coils

• Carbon Fiber / Polypropylene Cone

• HAMR (High-Amplitude Multi-Roll) Rubber Surround

• Polypropylene / Ceramic Dust Cap

• 2.6" High-Temperature Copper Voice Coil

• Twist-Lock Grille Mount System

• High-Efficiency Ferrite Magnet Structure

• Authorized Internet Dealer

• 1-Year Manufacturer's Warranty

Specifications

• Speaker Size: 10"

• Voice Coils: Dual 2 Ohms

• RMS Power Handling: 600 Watts

• Peak Power Handling: 1,800 Watts

• Frequency Response: 23Hz-215Hz

• Sensitivity: 86.2 dB

• Xmax: 15 mm

• Magnet Weight: 64 oz.

• Mounting Depth: 4.54"

• Cutout Diameter: 8.94"

Recommended Enclosures

Sealed Enclosure

• 0.40-0.85 Cubic Feet

Ported Enclosure

• 0.75-1.30 Cubic Feet

Ideal Applications

• Car Audio Bass Upgrades

• Custom Subwoofer Systems

• Daily Driver Audio Systems

• Sealed or Ported Enclosures

• High-Performance Bass Installations

Package Contents

• Alpine S2-A60M Mono Amplifier

• Alpine S2-W10D2 10" Dual 2-Ohm Subwoofer

• Amplifier Installation Hardware

• Owner's Manuals

• Warranty Information
