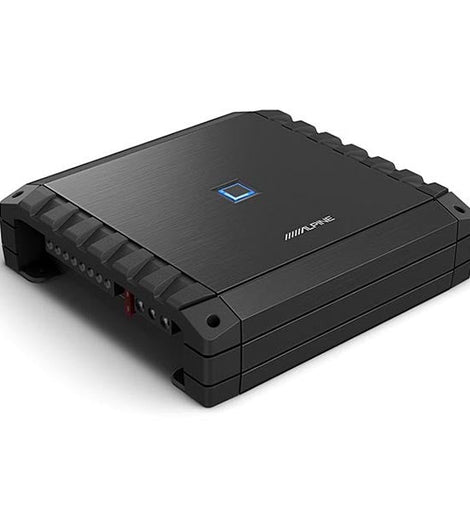

Alpine S2-A36F S-Series Class-D 4-Channel Amplifier 90W x 4
Alpine S2-A36F S-Series Class-D 4-Channel Amplifier, Hi-Res Certified, 60W x 4 @ 4 Ω, 90W x 4 @ 2 Ω
Entry-level sound just got elevated with the S2-A36F 4-Channel Amplifier. Its sleek redesign houses an Alpine Class D Amplifier Circuit and is now certified for Hi-Res Audio Playback.
Hi-Res Audio - The Next-Gen Alpine S-Series S2-A36F 4-Channel Amplifier is Hi-Res Audio Certified and can reproduce up to 40kHz. This ultra-wide bandwidth coupled with the elevated S-Series design brings out a new benchmark for entry-level performance and price.
Mid-Bass EQ - With its new and unique variable Mid-Bass EQ Circuit, the S2-A36F allows you to dial in the mid-bass impact as desired, making it an ideal choice for those seeking a more dynamic and powerful audio experience.
Flexible Application - The Next-Gen S-Series Amplifiers now feature a new selectable remote turn-on circuit, a three-position switch that ensures the amplifier turns on and off at the proper times. This design is crucial with newer, in-vehicle technology and allows for proper integration with any factory or aftermarket system.
General Features:
• Hi-Res Audio Certified (Up to 40kHz)
• 4-Channel Amplifier
• Alpine's Class D Amplifier Circuit

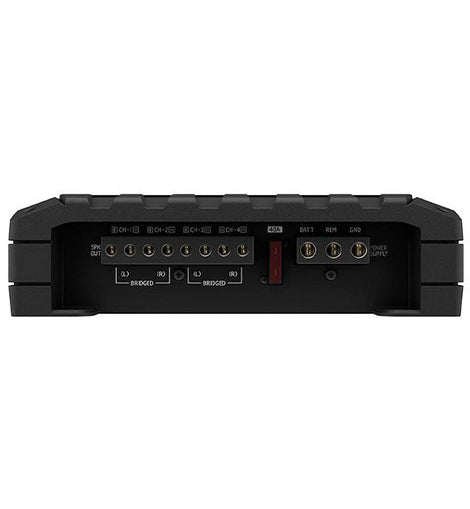

• Two-sided terminal layout
• Built-in Selectable/ Adjustable Crossovers
• Variable Mid-Bass EQ Circuit for more upper bass impact
• Optional Remote Bass Knob Compatible (required RUX-KNOB.2 or RUX-H01, sold separately
TECH SPECS:
• Dimensions: 8.7" W x 2.25" H x 8.25" D
• Weight: 4 lbs, 13 oz
• Power Rating: 14.4V, < 0.1% THD +N
• Power Output: 60W RMS x 4 @ 4Ω, 90W RMS x 4 @ 2Ω
• Bridged Power: 180W RMS x 2 @ 4Ω
• S/N Ratio: >83dB
• Frequency Response: 20Hz - 40kHz
• Damping Factor: >100
What's in the Box:
• (1) S2-A36F 4-Channel Amplifier
• (2) Connection end covers w/4 attachment screws
• Owner's Manual
• "Birth Sheet" that certifies by measurement the actual power of the amplifier in the box
• (4) Self-tapping screws
• (1) Hexagon wrench
• Alpine Registration Card
• Alpine Limited Warranty Sheet
• Tips sheet for power supply wire connections
