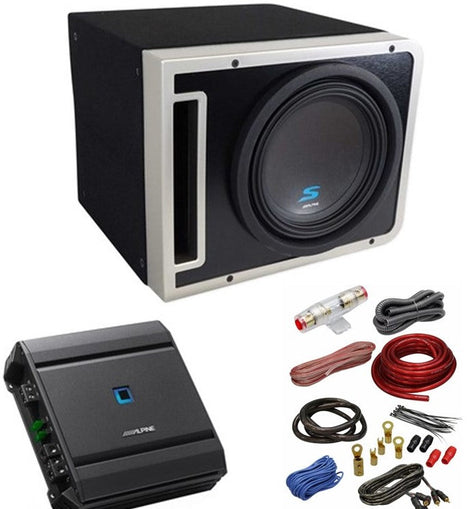

Alpine S-SB10V 10" Ported Subwoofer Enclosure + Alpine S-A60M Mono Amplifier + Absolute KIT4 4 Gauge Amplifier Wiring Kit

Experience powerful, accurate bass with this complete Alpine S-Series bass package featuring the Alpine S-SB10V 10-inch ported subwoofer enclosure, Alpine S-A60M Class-D mono amplifier, and Absolute KIT4 4 Gauge Complete Amplifier Installation Kit. Designed for outstanding sound quality and simple installation, this package provides everything needed to upgrade your vehicle's low-frequency performance.

General Features

• Complete Alpine Bass Upgrade Package

• Includes Alpine S-SB10V 10" Ported Subwoofer Enclosure

• Includes Alpine S-A60M 600-Watt RMS Mono Amplifier

• Includes Absolute KIT4 4 Gauge Amplifier Installation Kit

• Factory-Matched Components for Maximum Performance

• Compact Amplifier for Flexible Installation

• Ideal for Cars, Trucks, SUVs, RVs, and Boats

• Authorized Internet Dealer

• 1-Year Manufacturer Warranty

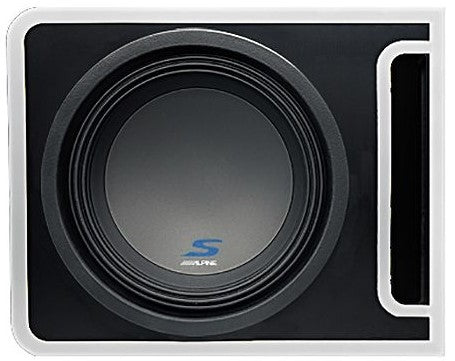

Alpine S-SB10V 10" Ported Subwoofer Enclosure

The Alpine S-SB10V features a premium MDF ported enclosure loaded with a 10-inch Alpine S-W10D4 S-Series subwoofer. Factory-wired to a 2-ohm impedance, the enclosure is tuned to 36 Hz for deep, powerful bass with excellent efficiency and sound quality. The modular Halo design also allows future expansion using the optional Alpine linking kit (sold separately).

General Features

• Pre-Loaded S-Series 10" Ported Subwoofer Enclosure

• Includes Alpine S-W10D4 Subwoofer

• Factory Wired to 2 Ohms

• Ported MDF Enclosure with Black Carpet Finish

• Expandable Modular Halo Design

• Compatible with Optional Alpine Linking Kit (Sold Separately)

• Authorized Internet Dealer

• 1-Year Manufacturer Warranty

Specifications

• Speaker Size: 10"

• RMS Power Handling: 600 Watts

• Final Impedance: 2 Ohms

• Frequency Response: 28 Hz - 200 Hz

• Port Tuning Frequency: 36 Hz

• Dimensions: 16" W × 12.68" H × 14.5" D

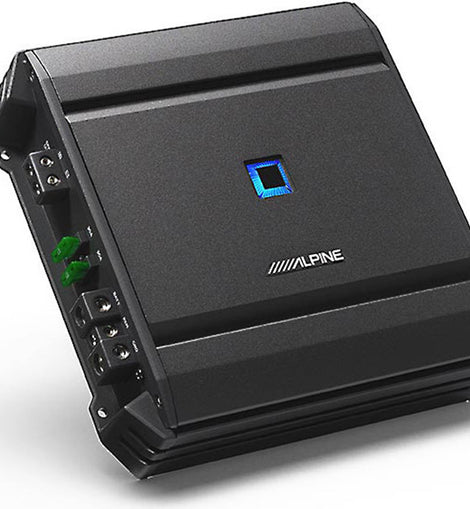

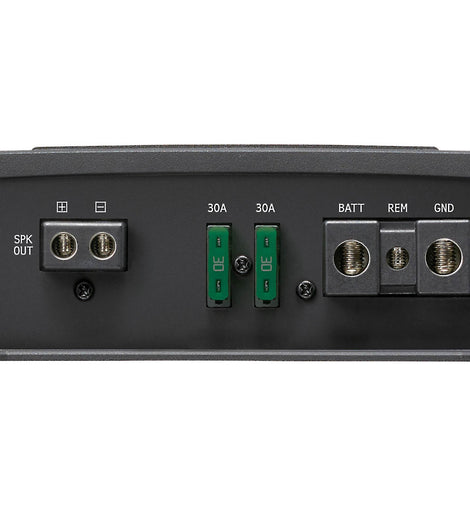

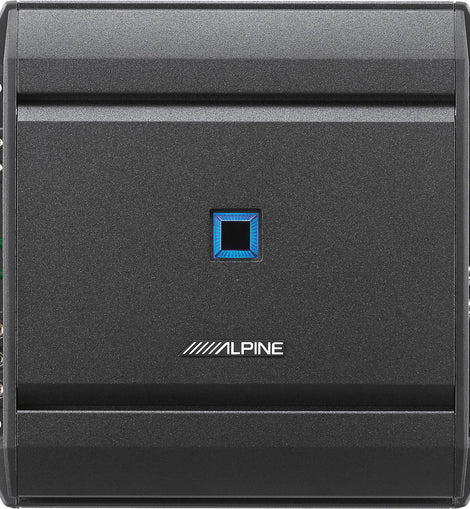

Alpine S-A60M S-Series Class-D Mono Amplifier

The Alpine S-A60M delivers clean, reliable Class-D power in a compact chassis. With 600 watts RMS at 2 ohms, it is perfectly matched to the included S-SB10V enclosure while offering Alpine's advanced protection circuitry for dependable long-term performance.

General Features

• Class-D Monoblock Amplifier

• CTA-2006-B Compliant

• Compact Chassis Design

• PWM MOSFET Power Supply

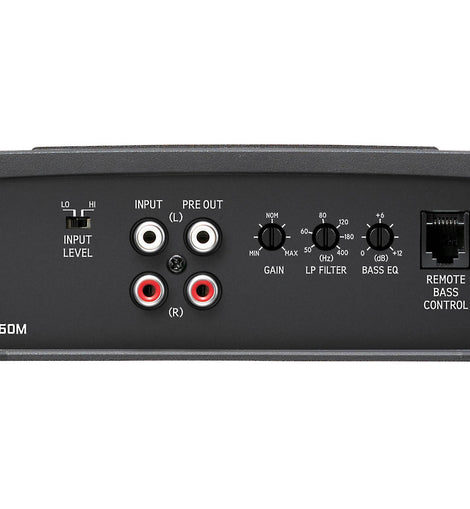

• Speaker-Level Inputs

• RCA Low-Level Inputs

• Variable Low-Pass Filter

• Variable Bass Boost

• Remote Bass Knob Compatible (RUX-KNOB.2 Sold Separately)

• Advanced Thermal Protection

• Authorized Internet Dealer

• 1-Year Manufacturer Warranty

Power Ratings

• 330 Watts RMS x 1 @ 4 Ohms

• 600 Watts RMS x 1 @ 2 Ohms

Specifications

• Frequency Response: 10 Hz - 400 Hz

• THD+N: ≤0.03%

• Signal-to-Noise Ratio: >85 dB (1W @ 4 Ohms)

• Signal-to-Noise Ratio: >105 dB (Rated Power @ 4 Ohms)

• Damping Factor: >1000

• Variable Low-Pass Filter: 50 Hz - 400 Hz

• Variable Bass Boost: 0 - 12 dB

• Remote Bass Level Control Compatible (RUX-KNOB.2 Sold Separately)

Absolute KIT4 4 Gauge Amplifier Installation Kit

The Absolute KIT4 includes everything needed for a professional amplifier installation. Designed for systems up to 1000 watts, it provides premium power wiring, RCA cables, speaker wire, fuse protection, and installation hardware.

General Features

• Complete 4 Gauge Amplifier Installation Kit

• Designed for Systems up to 1000 Watts

• Premium Power & Ground Cables

• Triple-Shielded RCA Interconnects

• OFC Speaker Wire Included

• Gold-Plated Installation Hardware

• Water-Resistant AGU Fuse Holder

• Suitable for Cars, Trucks, SUVs, RVs, and Boats

• Authorized Internet Dealer

• 1-Year Manufacturer Warranty

Package Includes

• 17 ft. Red 4 AWG Power Cable

• 3 ft. Black 4 AWG Ground Cable

• 15 ft. Triple-Shielded RCA Cable with Built-In Remote Wire

• 20 ft. 12 AWG OFC Speaker Wire

• 20 ft. 16 AWG Remote Turn-On Wire

• 6 ft. Split Loom Tubing

• 80 Amp Gold-Plated AGU Fuse

• Water-Resistant AGU Fuse Holder

• 4 AWG Gold Ring Terminal

• (2) Ring Terminals

• (2) 4 Gauge Spade Terminals

• (5) 14-16 AWG Spade Terminals

• (3) Self-Tapping Screws

• Rubber Grommet

• (20) Black Cable Ties

• (2) 18-22 AWG Butt Connectors

• (1) 4 Gauge Butt Connector

Package Includes

• (1) Alpine S-SB10V 10" Ported Loaded Subwoofer Enclosure

• (1) Alpine S-A60M Class-D Mono Amplifier

• (1) Absolute KIT4 4 Gauge Amplifier Installation Kit

Installation Notes

• The enclosure is factory wired to a 2-ohm load for maximum output with the included S-A60M amplifier.

• The modular Halo enclosure design allows expansion by linking a second compatible enclosure using the optional Alpine linking kit (sold separately).

• Speaker-level inputs allow installation with many factory audio systems.

• A 4-gauge amplifier wiring kit is included for a complete installation.

• Professional installation is recommended for optimal performance.
