Alpine S-SB10V-BNDL Bass Boost Package - S-SB10V 10" Ported Subwoofer Enclosure, S-A60M Mono Amplifier & RUX-KNOB.2 Remote Bass Level Control

Upgrade your vehicle's audio system with the Alpine S-SB10V-BNDL Bass Boost Package, a complete bass solution that includes the S-SB10V Halo Series 10-inch ported subwoofer enclosure, S-A60M Class-D mono amplifier, and RUX-KNOB.2 remote bass level controller. Designed for powerful, accurate bass with simple installation, this package delivers everything needed for premium low-frequency performance.

General Features

• Complete Alpine Bass Boost Package

• Includes Alpine S-SB10V 10" Ported Subwoofer Enclosure

• Includes Alpine S-A60M Class-D Mono Amplifier

• Includes Alpine RUX-KNOB.2 Remote Bass Level Controller

• Factory-Matched Components for Maximum Performance

• Compact Amplifier for Flexible Installation

• Expandable Modular Enclosure Design

• Authorized Internet Dealer

• 1-Year Manufacturer Warranty

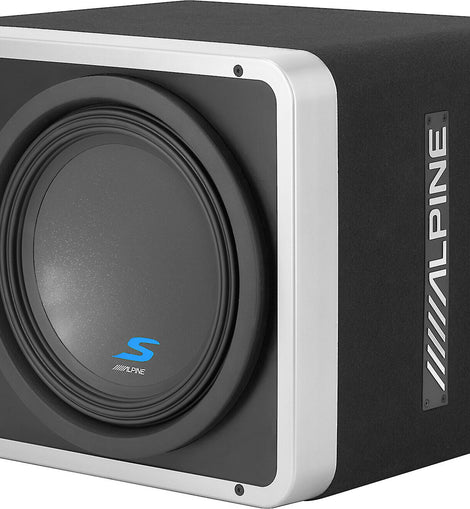

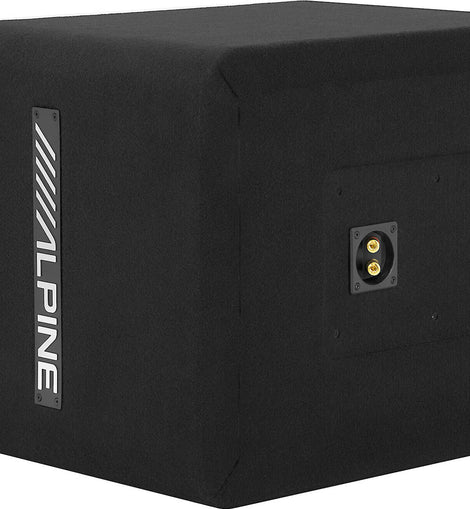

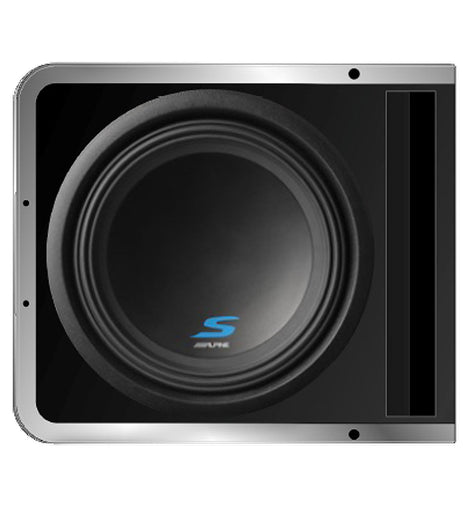

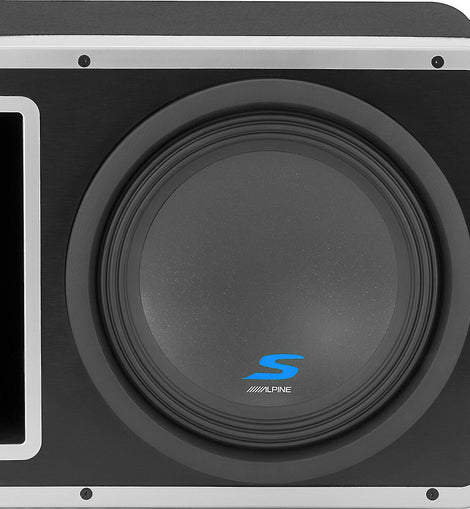

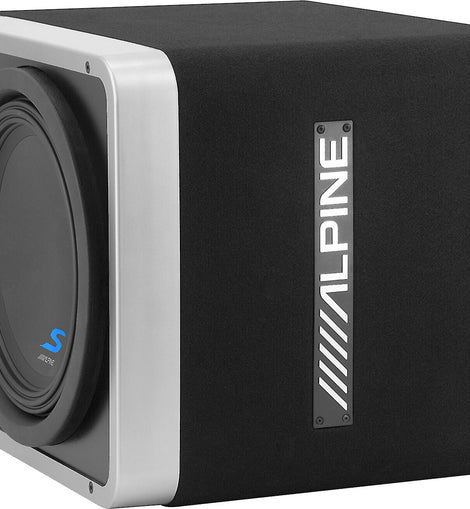

Alpine S-SB10V Halo Series 10" Ported Subwoofer Enclosure

The S-SB10V features a premium MDF ported enclosure loaded with an Alpine S-W10D4 10-inch S-Series subwoofer. Factory-wired to a 2-ohm impedance, the enclosure is tuned to 36 Hz to deliver deep, powerful bass with excellent efficiency and sound quality. The modular Halo design also allows future expansion using the optional Alpine KTX-H10 Linking Kit (sold separately).

General Features

• Halo Series Ported Subwoofer Enclosure

• Loaded with Alpine S-W10D4 10" Subwoofer

• Ported MDF Enclosure with Black Carpet Finish

• Factory Wired to 2 Ohms

• Expandable Using Optional KTX-H10 Linking Kit (Sold Separately)

• Rubber Flange Protector Installed

• Authorized Internet Dealer

• 1-Year Manufacturer Warranty

Specifications

• Speaker Size: 10"

• RMS Power Handling: 600 Watts

• Frequency Response: 28 Hz - 200 Hz

• Final Impedance: 2 Ohms

• Enclosure Dimensions: 16" W × 12.75" H × 15" D

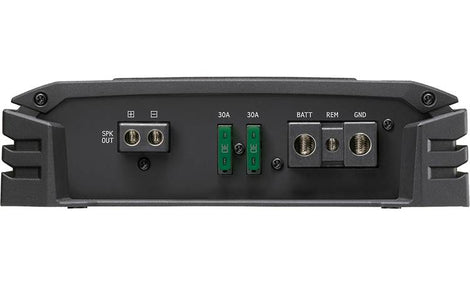

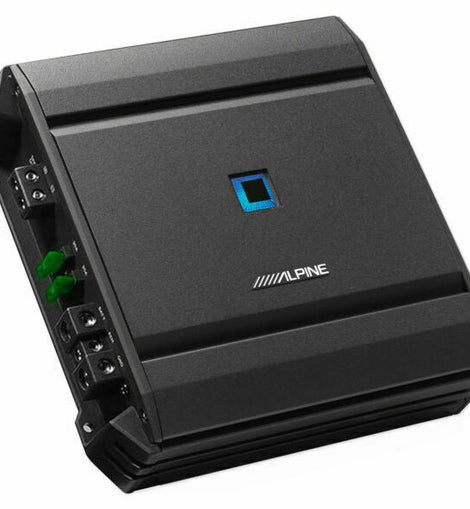

Alpine S-A60M Class-D Mono Amplifier

The Alpine S-A60M delivers efficient Class-D performance with 600 watts RMS at 2 ohms, making it the ideal amplifier for the included enclosure. Alpine's Enhanced Shutdown Performance technology reduces output when temperatures become excessive, allowing music to continue playing while protecting the amplifier.

General Features

• Class-D Monoblock Amplifier

• 600 Watts RMS x 1 @ 2 Ohms

• 330 Watts RMS x 1 @ 4 Ohms

• CTA-2006 Compliant

• Variable Low-Pass Filter

• Variable Bass Boost

• Speaker-Level Inputs

• RCA Low-Level Inputs

• Remote Sensing Automatic Turn-On

• Advanced Thermal Protection

• Compact Chassis Design

• Authorized Internet Dealer

• 1-Year Manufacturer Warranty

Specifications

• Frequency Response: 10 Hz - 400 Hz

• Variable Low-Pass Filter: 50 Hz - 400 Hz (24 dB/Octave)

• Variable Bass Boost: 0 - 12 dB @ 50 Hz

• Dimensions: 8.045" W × 8.06" D × 2.28" H

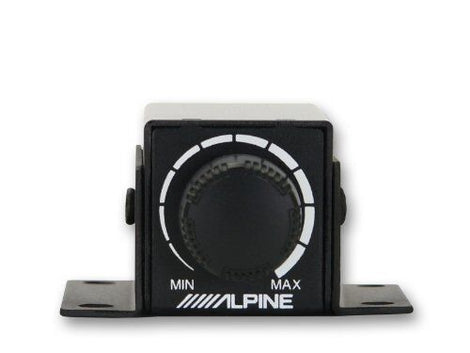

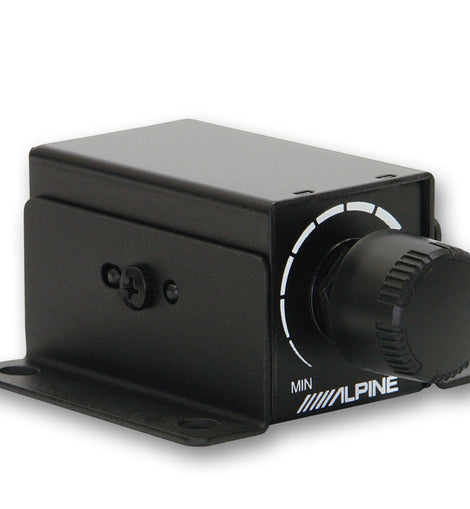

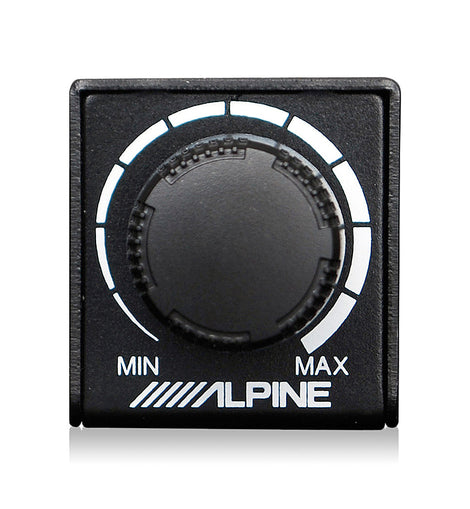

Alpine RUX-KNOB.2 Remote Bass Level Controller

The RUX-KNOB.2 allows convenient adjustment of the amplifier output directly from the driver's seat. Unlike traditional bass boost controls, it adjusts amplifier output level while maintaining consistent bass response.

General Features

• Remote Bass Level Controller

• Adjusts Amplifier Output Level from Maximum to Nearly Off

• Gain Adjustment: 0 to -12 dB

• 16.4 ft. (5 Meter) Connection Cable

• Compact Mounting Design

• Compatible with Alpine S-Series Amplifiers

• Authorized Internet Dealer

• 1-Year Manufacturer Warranty

Package Includes

Alpine S-SB10V

• Ported enclosure loaded with one S-W10D4 10" subwoofer

• Rubber flange protector (installed)

Alpine S-A60M

• Mono subwoofer amplifier

• Two 30A ATO fuses (installed)

• Four Mounting Screws

• 2mm Allen Wrench

• Owner's Manual

• Alpine Verification Certificate

• Warranty Information

• Power Supply Note

• Online Product Registration Information

Alpine RUX-KNOB.2

• Remote Bass Level Control Module

• 16.4 ft. (5 m) RJ-14 Connection Cable

• Four Mounting Screws

Installation Notes

• The enclosure is factory wired to a 2-ohm load for maximum output with the included S-A60M amplifier.

• The modular Halo enclosure design allows a second compatible enclosure to be linked using the optional KTX-H10 Linking Kit (sold separately).

• Speaker-level inputs allow installation with many factory audio systems.

• Remote Sensing technology automatically powers on the amplifier when using speaker-level inputs.

• Professional installation is recommended for best performance.
