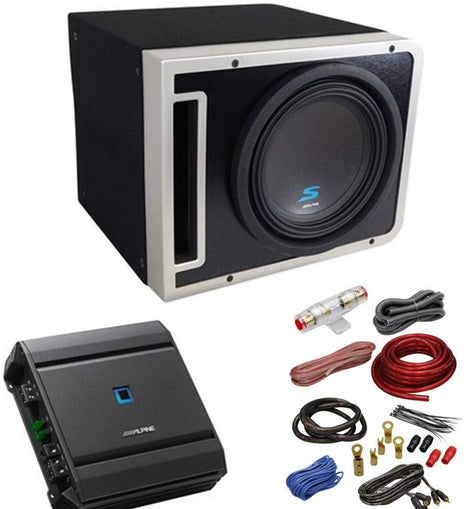

Alpine S-SB10V 10" S-Series Ported Subwoofer Enclosure + Alpine S-A60M Mono Amplifier + Absolute KIT4 4 Gauge Amplifier Wiring Kit

Upgrade your vehicle's bass performance with this complete Alpine S-Series Bass Package, featuring the Alpine S-SB10V 10-inch Ported Subwoofer Enclosure, Alpine S-A60M 600-Watt RMS Class-D Monoblock Amplifier, and the Absolute KIT4 4 Gauge Complete Amplifier Installation Kit. Designed to work together, this package delivers powerful, clean bass with reliable performance and includes everything needed for a professional amplifier installation.

General Features

• Complete Alpine Subwoofer, Amplifier & Wiring Kit Bundle

• Alpine S-SB10V Pre-Loaded 10" Ported Subwoofer Enclosure

• Alpine S-A60M 600-Watt RMS Class-D Mono Amplifier

• Absolute KIT4 Complete 4 Gauge Amplifier Wiring Kit

• 600 Watts RMS System Power Handling

• 2-Ohm Final Impedance

• Compact Design for Easy Installation

• Ideal for Cars, Trucks, SUVs, and Jeeps

• Authorized Internet Dealer

• 1-Year Manufacturer Warranty

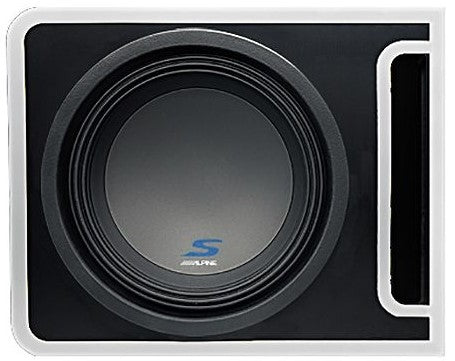

Alpine S-SB10V 10" Ported Subwoofer Enclosure

The Alpine S-SB10V is a premium Halo Series-inspired ported enclosure preloaded with an Alpine S-W10D4 10-inch S-Series subwoofer. Designed with Alpine's modular enclosure system, it can be used individually or linked with an optional bracket to create a dual subwoofer system. Its precision-tuned ported enclosure produces deep, powerful bass with outstanding efficiency.

General Features

• Pre-Loaded S-Series 10" Ported Subwoofer Enclosure

• Includes Alpine S-W10D4 10" Subwoofer

• Ported Enclosure Design

• Final 2-Ohm Impedance

• Modular Halo Series Design

• Expandable with Optional Linking Kit

• Premium Carpet Finish

• Optimized 36 Hz Port Tuning

• Authorized Internet Dealer

• 1-Year Manufacturer Warranty

Specifications

• Speaker Size: 10"

• Subwoofer: Alpine S-W10D4

• RMS Power Handling: 600 Watts

• Final Impedance: 2 Ohms

• Frequency Response: 28 Hz - 200 Hz

• Enclosure Tuning Frequency: 36 Hz

• Enclosure Type: Ported

• Dimensions: 16" W × 12.68" H × 14.5" D

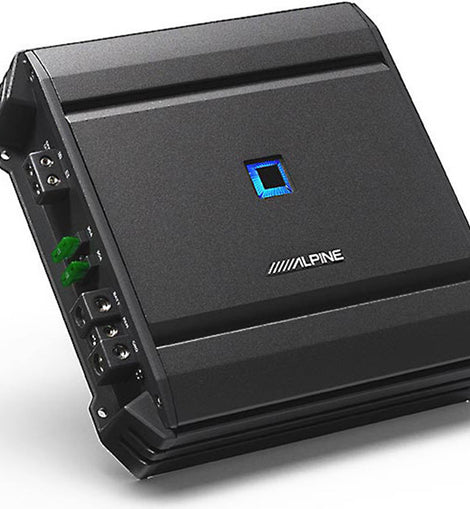

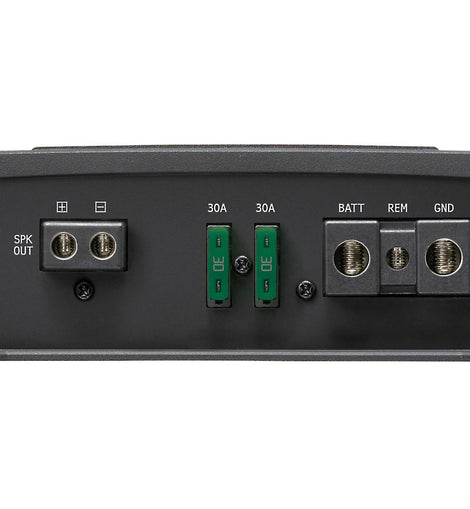

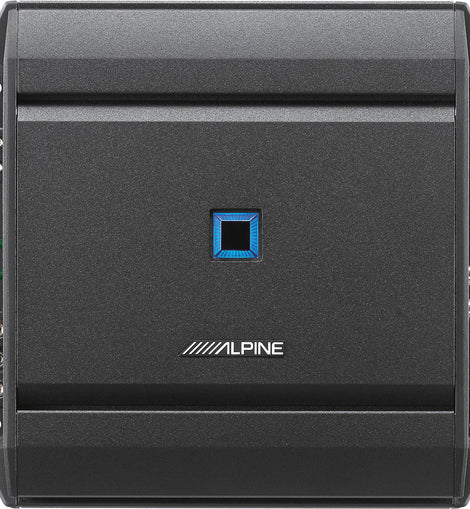

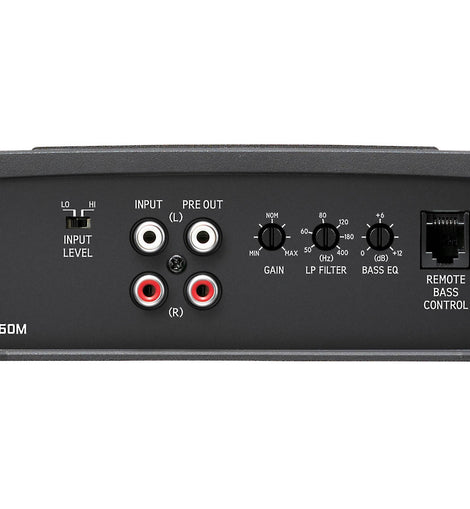

Alpine S-A60M Class-D Mono Amplifier

The Alpine S-A60M delivers clean, efficient power with Alpine's advanced Class-D amplifier technology. Compact enough to fit almost anywhere, it provides exceptional bass performance while maintaining reliable operation through Alpine's advanced thermal management system.

General Features

• Class-D Monoblock Amplifier

• CTA-2006-B Certified

• Compact 8" Chassis

• PWM MOSFET Power Supply

• Remote Bass Level Control Compatible (RUX-KNOB.2 Sold Separately)

• Variable Low-Pass Filter

• Variable Bass Boost

• Speaker-Level Inputs

• RCA Low-Level Inputs

• Enhanced Thermal Protection

• Remote Signal Sensing Auto Turn-On

• Authorized Internet Dealer

• 1-Year Manufacturer Warranty

Power Ratings

• 330 Watts RMS x 1 @ 4 Ohms

• 600 Watts RMS x 1 @ 2 Ohms

Amplifier Specifications

• Amplifier Type: Class-D Monoblock

• Frequency Response: 10 Hz - 400 Hz

• Signal-to-Noise Ratio: >85 dB

• THD+N: ≤0.03%

• Damping Factor: >1000

• Variable Low-Pass Filter: 50 Hz - 400 Hz (24 dB/Octave)

• Variable Bass Boost: 0 - 12 dB @ 50 Hz

• Recommended Power Wire: 4 Gauge

• Fuse Rating: 30A x 2

• Dimensions: 8" W × 8" D × 2.25" H

Absolute KIT4 Complete 4 Gauge Amplifier Installation Kit

The Absolute KIT4 provides everything needed for a professional amplifier installation. Designed for systems up to 1000 watts, this complete kit features high-quality power cable, RCA interconnects, speaker wire, fuse protection, and installation accessories.

General Features

• Complete 4 Gauge Amplifier Installation Kit

• Designed for Systems up to 1000 Watts

• Premium Power & Ground Cables

• Gold-Plated Installation Hardware

• Triple-Shielded RCA Interconnects

• OFC Speaker Wire Included

• Water-Resistant Fuse Holder

• Suitable for Cars, Trucks, SUVs, RVs, and Boats

• Authorized Internet Dealer

• 1-Year Manufacturer Warranty

Package Includes

• 17 ft. Red 4 AWG Power Cable

• 3 ft. Black 4 AWG Ground Cable

• 15 ft. Triple-Shielded RCA Cable with Remote Wire

• 20 ft. 12 AWG OFC Speaker Wire

• 20 ft. 16 AWG Remote Turn-On Wire

• 6 ft. Split Loom Tubing

• 80 Amp Gold-Plated AGU Fuse

• Water-Resistant AGU Fuse Holder

• 4 AWG Gold Ring Terminal

• (2) Ring Terminals

• (2) 4 Gauge Spade Terminals

• (5) 14-16 AWG Spade Terminals

• (3) Self-Tapping Screws

• Rubber Grommet

• (20) Cable Ties

• (2) 18-22 AWG Butt Connectors

• (1) 4 Gauge Butt Connector

Package Includes

• (1) Alpine S-SB10V 10" Ported Loaded Subwoofer Enclosure

• (1) Alpine S-A60M Class-D Mono Amplifier

• (1) Absolute KIT4 4 Gauge Amplifier Installation Kit

Important Information

• The enclosure is wired to a 2-ohm final impedance for maximum amplifier performance.

• The S-SB10V can be expanded into a dual-subwoofer system using Alpine's optional linking hardware (sold separately).

• Compatible with the optional Alpine RUX-KNOB.2 wired remote bass control (sold separately).

• Professional installation is recommended for optimal performance and reliability.
