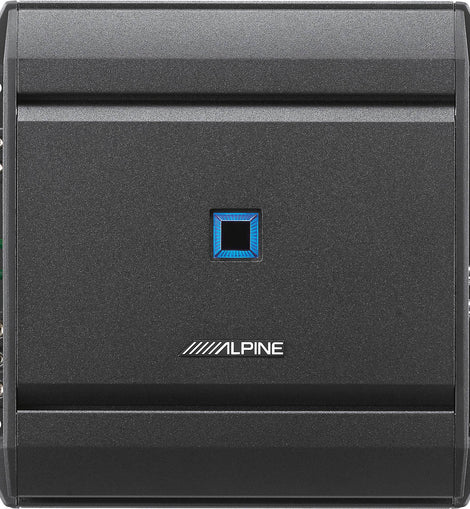

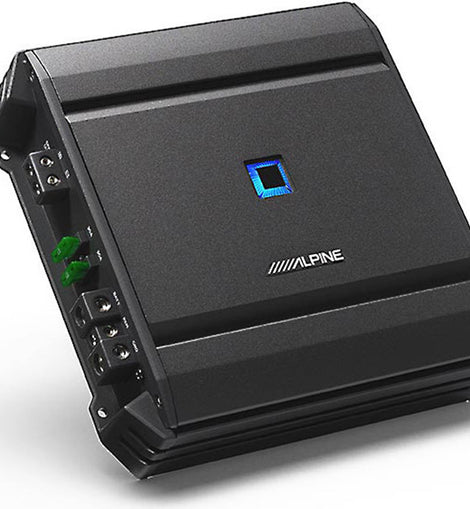

Alpine S-A60M S-Series Monoblock Class-D Amplifier 600W RMS

The Alpine S-Series Sound Components
Three new S-Series amplifiers join the S-Series family, known for reliable performance and value-oriented products. All three S-Series amps (mono, 4-channel, and 5-channel) contain technology currently implemented in R and X-Series models. The S-Series amps feature attractive prices and are designed to perform perfectly with the existing S-Series speakers.
S-Series amplifiers are your sound system's workhorse. With unmatched reliability and budget-friendly prices, these amplifiers are the better choice in performance value.

General Features:

• Alpine S-Series Mono Power Amplifier - S-A60M
• RMS Power Output:
• 400W x 1 @ 4 Ohms (14.4V < 1% THD+N)
• 600W x 1 @ 2 Ohms (14.4V < 1% THD+N)
• S/N ratio: >85dB (ref: 1W into 4 ohms), >105dB (ref: rated power into 4 ohms)
• Remote bass knob compatible (requires RUX-KNOB.2, sold separately)
• CTA-2006 compliant
• THD+N ≤ 0.03% (ref 1W info 4 ohm)
• Frequency Response: 10HZ-400Hz (+/- 3 dB)
• Damping Factor: > 1000

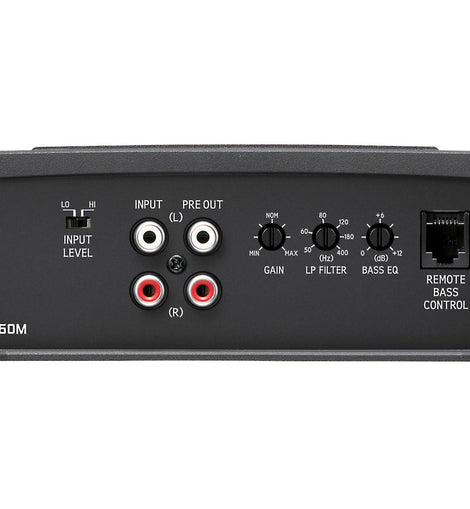

• variable low-pass filter (50-400 Hz, 24 dB/octave)
• variable bass boost (0-12 dB at 50 Hz)
• Speaker-level inputs (Speaker Wire to RCA Adapter Required)
• Preamp Inputs
• Improved heat sink and protection circuit design that eliminates thermal shut-down for dependable music playback
• Remote Sensing automatic turn-on when using speaker-level inputs
• Approximate Weight: 11 lbs

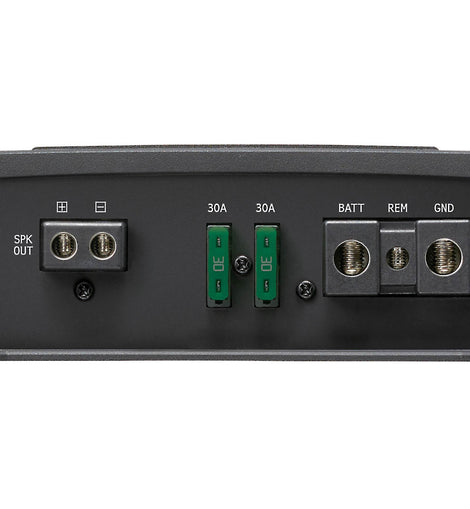

• Fuse Rating: fuse rating: 30A x 2
• Four gauge power and ground wiring are recommended for installation. Contact us for information regarding a discount on select from our website when purchased together with this amplifier. Dimensions: 8" W x 8" H x 2.25" D
• Authorized Dealer
• 1-year Manufacturer's Warranty

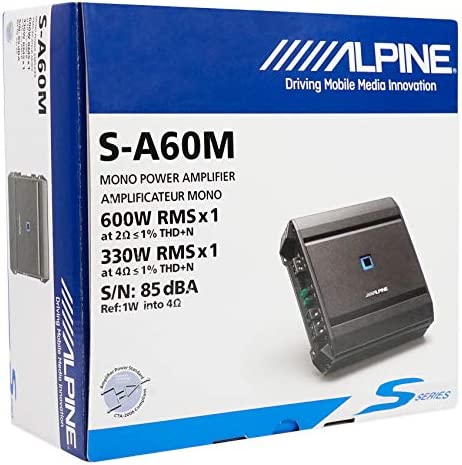

What's in the S-A60M package:

• S-A60M owner's manual
• Mono subwoofer amplifier
• Two 30-amp ATO fuses (installed)
• Four 3/4" Screws
• 2mm Allen wrench
• Owner's manual
• Alpine Verification Certificate
• Online product registration information
