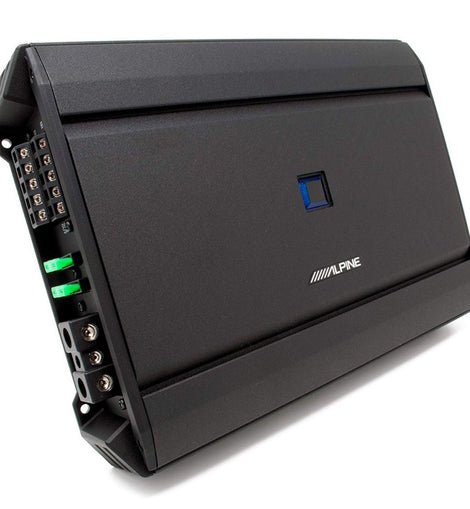

Alpine S-A55V S-Series 5-Channel Class D Amplifier 540W RMS

The Alpine S-Series Sound ComponentsThree new S-Series amplifiers join the S-Series family, known for reliable performance and value-oriented products. All three S-Series amps (mono, 4-channel, and 5-channel) contain technology currently implemented in R and X-Series models. The S-Series amps feature attractive prices and are designed to perform perfectly with the existing S-Series speakers. S-Series amplifiers are your sound system’s workhorse. With unmatched reliability and budget-friendly prices, these amplifiers are the better choice in performance value.
General Features:

• 5-channel Class D Amplifier
• Power Output:
  • 40 watts RMS x 4 + 200 watts RMS x 1 at 4 ohms
  • 60 watts RMS x 4 + 300 watts RMS x 1 at 2 ohms
  • 120 watts RMS x 2 bridged at 4 ohms + 300 watts RMS x 1 at 2 ohms
• CTA-2006 compliant
• Variable high-pass filter (50-400 Hz, 12 dB/octave) on 4-channel section
• Variable low-pass filter (50-400 Hz, 24 dB/octave) on a subchannel
• Variable bass boost (0-12 dB at 50 Hz) on a subchannel
• Optional RUX-KNOB.2 wired remote level control for a subchannel
• Preamp and speaker-level inputs
  • speaker wire to RCA adapter required for speaker-level input
• Wiring and hardware not included with amplifier
  • 4-gauge power and ground leads recommended
• Fuse rating: 30A x 2
• Dimensions: 11-1/4" W x 2-1/4" H x 8" D
• Authorized Dealer
• 1-year Manufacturer's Warranty

• 5-Channel amplifier
• Two 30-amp ATO fuses (installed)
• Four 3/4" Screws
• 2mm Allen wrench
• Owner's manual (English/ French/ Spanish)
• Alpine Verification Certificate
• Warranty information
• Power supply note
• Online product registration information
• Alpine S-A55V owner's manual
